Buy Monitoring relay 208 - 480 V AC 1 change-over Finder 70.61.8.400.0000 Piece 1 pc(s)

A 6-pole relay module by Finder, Model 70.61, suitable for voltages from 208 to 480V AC, illustrated with circuit diagram.

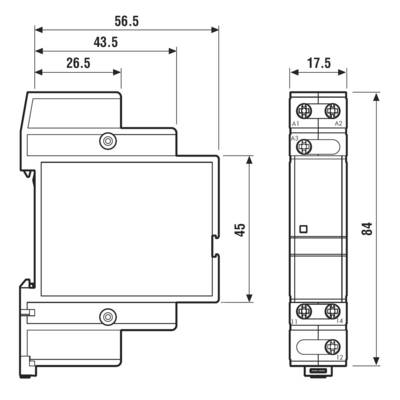

Technical drawing of an electronic device with dimensions: Width 56.5 mm, Depth 26.5 mm, Height 84 mm. Front and side view.

1/2

Packaging type

Piece

Product type

Monitoring relay

Functions

3-phase

Phase sequence

Phase error

Max. operating voltage

480 V AC

Contact type

1 change-over

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

57 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 47.05 / piece)

€ 67.22

-30 %

€ 47.05

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Network monitoring relay 70.61.8.400.0000

Technical specifications

Switching power AC1: 1500 VA
Switching capacity AC15: 250 VA
1-phase motor load, AC3-operation (230 V): 0.185 kW

Packaging type: Piece

Product type: Monitoring relay

Type: 70.61.8.400.0000

Reading range (min.): 208 V AC

Reading range (max.): 480 V AC

Functions: 3-phase
Phase sequence
Phase error

Min. operating voltage: 208 V AC

Max. operating voltage: 480 V AC

Operating voltage: 208 - 480 V AC

Switch-on current: 15 A

Contact type: 1 change-over

Contact material: AgSnO2

Switching voltage (max.): 400 V AC

Switching current (max.): 6 A

Max. switching capacity: 1500 VA

: IP20

Min. temperature: -20 °C

Max. temperature: +50 °C

Width: 17.5 mm

Content: 1 pc(s)

Type: 3-phase network monitoring (208 – 480 V/AC), phase sequence, phase failure

Switching voltage: 250 V/AC/ 400 V AC

Switching current: 6 A

Dielectric strength: (Supply/contacts) 5 kV, (open contacts) 1000 V AC

Type: 70.61.8.400.0000

Nominal voltage range: (50 – 60 Hz) 170 – 500 V

Temperature range: -20 - +50 °C

Operating voltage: (50 – 60 Hz) 208 – 480 V AC

Variants(All information is without VAT, plus shipping costs)

Switching current (max.)

Packaging type

Functions

Contact type

Max. operating voltage

Monitoring relay 208 - 480 V AC 1 change-over Finder 70.61.8.400.0000 Piece 1 pc(s)

Item no:503242

This article

6 A

Piece

3-phasePhase sequencePhase error

1 change-over

480 V AC

Monitoring relay 380 - 415 V AC 2 change-overs Finder 70.42.8.400.2032 Piece 1 pc(s)

Item no:1381190

8 A

Piece

3-phase mains monitoringNeutral monitoring (not selectable)UndervoltageOvervoltageOver-/undervoltage range (overvoltage + undervoltage)Voltage error memory (selectable)Phase errorPhase sequencePhase asymmetryNeutral breaker

2 change-overs

415 V AC

Monitoring relay 208 - 480 V AC 1 change-over Finder 70.61.8.400.0000 Tray 5 pc(s)

Item no:2177160

6 A

Tray

3-phasePhase sequencePhase error

1 change-over

480 V AC

Monitoring relay 220 - 240 V AC 1 change-over Finder 70.11.8.230.2022 Tray 5 pc(s)

Item no:2177296

10 A

Tray

1-phaseOvervoltageOver-/undervoltage range (overvoltage + undervoltage)Voltage error memory (selectable)

1 change-over

240 V AC

Monitoring relay 380 - 415 V AC 1 change-over Finder 70.31.8.400.2022 Tray 5 pc(s)

Item no:2177297

6 A

Tray

3-phase mains monitoringUndervoltageOvervoltageOver-/undervoltage range (overvoltage + undervoltage)Voltage error memory (selectable)Phase sequencePhase error

1 change-over

415 V AC

Monitoring relay 380 - 415 V AC 1 change-over Finder 70.41.8.400.2030 Tray 5 pc(s)

Item no:2177298

6 A

Tray

3-phase mains monitoringNeutral monitoring (selectable)Over-/undervoltage range (overvoltage + undervoltage)Phase errorPhase sequencePhase asymmetryNeutral breaker

1 change-over

415 V AC

Monitoring relay 380 - 415 V AC 2 change-overs Finder 70.42.8.400.2032 Tray 5 pc(s)

Item no:2177523

8 A

Tray

2 change-overs

415 V AC

Monitoring relay 208 - 480 V AC 1 change-over Finder 70.61.8.400.0000 Tray 1 pc(s)

Item no:3209654

6 A

Tray

3-phasePhase sequencePhase error

1 change-over

480 V AC

Monitoring relay 220 - 240 V AC 1 change-over Finder 70.11.8.230.2022 Tray 1 pc(s)

Item no:3209774

10 A

Tray

1-phaseOvervoltageOver-/undervoltage range (overvoltage + undervoltage)Voltage error memory (selectable)

1 change-over

240 V AC

Monitoring relay 380 - 415 V AC 1 change-over Finder 70.31.8.400.2022 Tray 1 pc(s)

Item no:3209775

6 A

Tray

3-phase mains monitoringUndervoltageOvervoltageOver-/undervoltage range (overvoltage + undervoltage)Voltage error memory (selectable)Phase sequencePhase error

1 change-over

415 V AC

Documents & Downloads

Datasheet

Datasheet 503242 Monitoring relay 208 - 480 V AC 1 change-over Finder 70.61.8.400.0000 Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 503242 Monitoring relay 208 - 480 V AC 1 change-over Finder 70.61.8.400.0000 Piece 1 pc(s)

Description

Multifunction with positive security logic – opens the NO contact when a fault is detected. Phase sequence and phase failure monitoring even in case of inverse voltage. Coloured LED status display. For mounting rail DIN EN 60715 TH35.

Hints

Approvals: CE, cULus.
