Monitoring relay 230 V AC (max) 2 change-overs Metz Connect 110271 1 pc(s)
EAN:
Part number:
Item no:
Product type
Monitoring relay
Functions
Undervoltage
Max. operating voltage
230 V AC
Contact type
2 change-overs
Switching voltage (max.)
230 V AC
Datasheet (PDF)
Number
Total (€ 82.34 / piece)
€ 82.34
plus VAT.
14-day return policy included

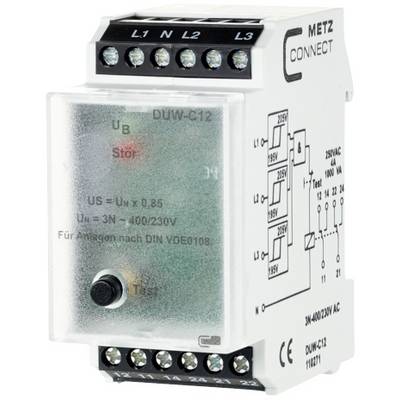

Monitoring relay DUW-C12
Highlights & Details
- Measurement relaysMonitoring RelaysPhase monitoringOvervoltage monitoringThree-phase networksEmergency lighting systemsUndervoltage relayBTR Netcom
Technical specifications
- Product type
Monitoring relay
- Type
110271
- Functions
Undervoltage
- Features
+ test button
- Operating voltage
230 V AC
- Max. operating voltage
230 V AC
- Operating voltage
230 V AC (max)
- Contact type
2 change-overs
- Switching voltage (max.)
230 V AC
- Connection
Screw terminal
IP40
- Min. temperature
-5 °C
- Max. temperature
+55 °C
- Width
35 mm
- Height
69.30 mm
- Depth
60 mm
- Dim
(L x W x H) 69.3 x 35 x 69.30 mm
- Content
1 pc(s)
- Weight
110 g
- Factory colour
Grey
- Length
69.3 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2860489 Monitoring relay 230 V AC (max) 2 change-overs Metz Connect 110271 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2860489 Monitoring relay 230 V AC (max) 2 change-overs Metz Connect 110271 1 pc(s)
Description
Undervoltage monitoring in three-phase networks (each phase against neutral) with fixed threshold, fixed hysteresis and integrated test button. It has been specially developed for emergency lighting systems according to DIN VDE 0108. The device can also be used to monitor a single phase. All unassigned inputs must be connected to the connected phase. If there is a reverse voltage caused by the consumer that is greater than the set threshold value, no error message is output. Message: Relay is switched on (contacts 11-14 and 21-24 closed), LED is off. Fault message: Relay has fallen off (contacts 11-14 and 21-24 open), LED is on. Button press: Relay falls back (contacts 11-14 and 21-24 open), LED switches on. Connection with screw terminals.
