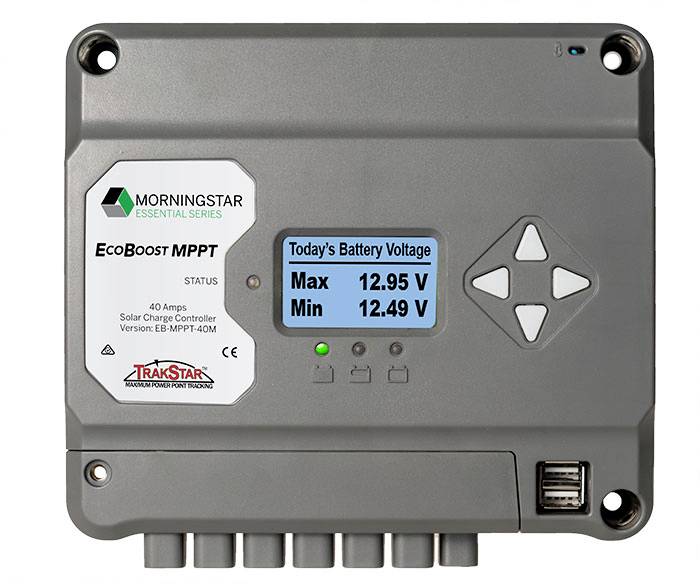

Morningstar EB-MPPT-40M Charge controller MPPT 12 V, 24 V 40 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar charge regulator MPPT Morningstar EB-MPPT-40M EcoBoost
- Robust, maintenance-free design
- Maximum energy yield
- High efficiency
- Optional meter
- Charging via USB ports
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Charging current (max.)
40 A
- Control type
MPPT
- Dim
(W x H x D) 196 x 173 x 71 mm
- Weight
1.4 kg
- Features
LCD
USB output
- Current load
30 A
- Width
196 mm
- Height
173 mm
- Depth
71 mm
Documents & Downloads
Datasheet
Datasheet 3025489 Morningstar EB-MPPT-40M Charge controller MPPT 12 V, 24 V 40 A
User & Safety Instructions
User & Safety Instructions 3025489 Morningstar EB-MPPT-40M Charge controller MPPT 12 V, 24 V 40 A
Description
The EcoBoost MPPT™ solar power charge regulator from our new Essential product line is equipped with the TrakStar Technology™ developed by Morningstar. The EcoBoost charge controller automatically detects the applied voltage (12 or 24 V). This charger model has a high degree of efficiency and is very accurate to ensure that batteries are always fully charged.
With an advanced function for controlling the current draw, the batteries are protected against excessive discharge.
This will lead to a longer service life of the solar system.
Mobile devices can be charged directly via two USB charging ports with the EcoBoost.
The EcoBoost charger from Morningstar is the powerful and reliable heart of photovoltaic systems with a power of up to 1120 watts.
This text is machine translated.
With an advanced function for controlling the current draw, the batteries are protected against excessive discharge.
This will lead to a longer service life of the solar system.
Mobile devices can be charged directly via two USB charging ports with the EcoBoost.
The EcoBoost charger from Morningstar is the powerful and reliable heart of photovoltaic systems with a power of up to 1120 watts.
This text is machine translated.
Features
- Charging current 40 A
- Load current 30 A
- 12/24 VDC
- 120 VOC
- Own power consumption under 1.2 W
- LCD
- IP20
- Screw terminal 16 mm²
- 2x USB A max. 3000 mA
- Self-diagnostics
- Lighting control
- Connecting power consumers
- Flexibility
Scope of delivery
- Solar charge regulator
