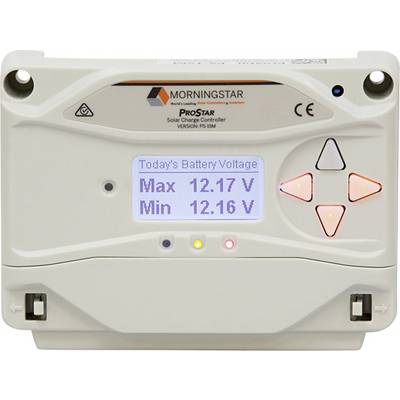

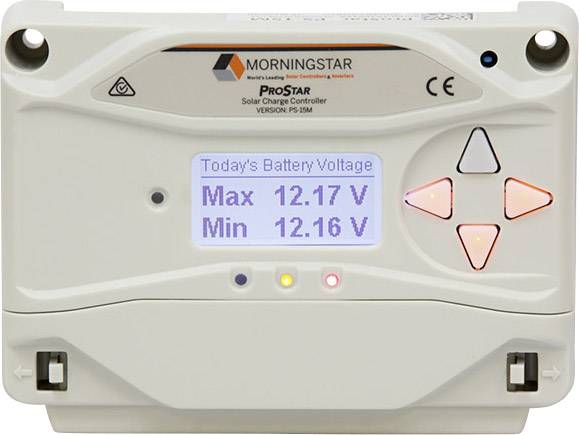

Morningstar ProStar PS15-M Charge controller PWM 12 V, 24 V 15 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar charge regulator Morningstar PS 15-M
- Constant PWM series with 7 charging stages
- Data logging for 265 days
- Mid-range solar controller with far-reaching electronic protection functions
- Is perfectly suited for both professional and consumer applications
- This text is machine translated.
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Temperature range
-40 °C up to +60 °C
- Charging current (max.)
15 A
- Own power consumption
>20 mA
- Matching rechargeable battery
SLA
Lead-acid
Lead acid membrane
- Control type
PWM
- Dim
(W x H x D) 105 x 55 x 153 mm
- Weight
400 g
- Current load
15 A
- Module load (max.)
15 A
- Width
105 mm
- Height
55 mm
- Depth
153 mm
Documents & Downloads
Datasheet
Datasheet 1783928 Morningstar ProStar PS15-M Charge controller PWM 12 V, 24 V 15 A
User & Safety Instructions
User & Safety Instructions 1783928 Morningstar ProStar PS15-M Charge controller PWM 12 V, 24 V 15 A
Description
The ProStar is a mid-range solar controller with far-reaching electronic protection functions and is perfectly suited for both professional and consumer applications. It is equipped with a temperature compensation and enables a long battery life, and increased battery capacity by constant PWM in series with 4 charging stages.
This text is machine translated.
This text is machine translated.
Features
- 7 charging stages
- Data logging for 265 days
- Custom settings
- Load control adjustable
- Complies with IEC 62109
- Lighting control
- Multi-lingual graphic display option
- Terminal cover
- Very precise control and measurement
- Bridge to the elimination of telecommunications interferences
- Parallel connection up to 300 Ampere
- Temperature compensation
- Fastening elements made of stainless steel and heat sink made of anodised aluminum
- No switching or measuring elements in the earth branch 100% electronic circuit
- Current-compensated, low-voltage separation
- 25% overload capacity
- Connection terminals for the remote measuring device the battery voltage
- Circuit breaker
- Reverse polarity protection
- Reverse current at night
- Surge separation
- Temperature monitoring
- Lightning and surge protection
- Protection of loads against voltage peaks
- Automatic for all safety devices
- Temepraturkontrolle
Scope of delivery
- Charge Controllers
- User manual
