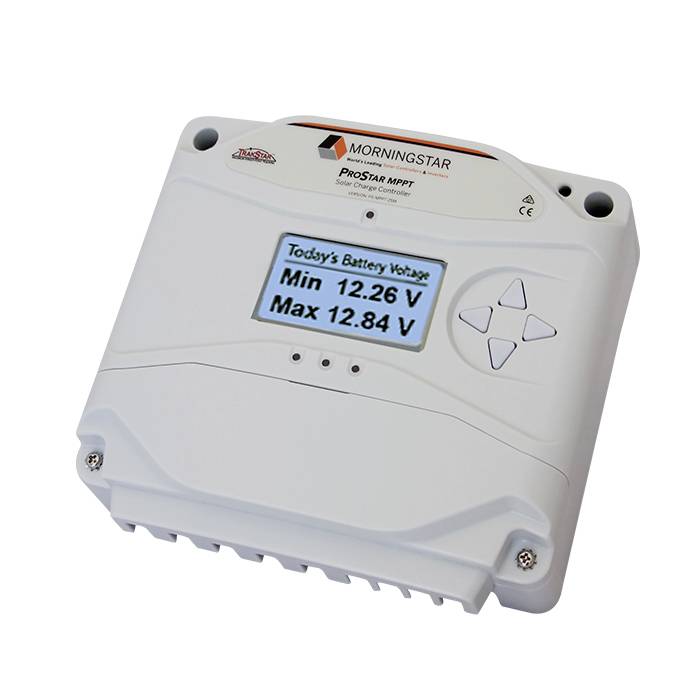

Morningstar PS-MPPT-25M Charge controller MPPT 12 V, 24 V 25 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar charge regulator MPPT Morningstar PS-MPPT-25M
- 25 A charging current
- 25 A load current
- 12/24 VDC
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Module power (max.)
1100 W
- Charging current (max.)
25 A
- Own power consumption
40 mA
- Matching rechargeable battery
Lead
NiCd
Li-ion
- Control type
MPPT
- Dim
(W x H x D) 200 x 170 x 70 mm
- Weight
1.4 kg
- Features
LCD
- Current load
25 A
- Module load (max.)
25 A
- Width
200 mm
- Height
170 mm
- Depth
70 mm
- Required supply
40 mA
Documents & Downloads
Datasheet
Datasheet 3025490 Morningstar PS-MPPT-25M Charge controller MPPT 12 V, 24 V 25 A
User & Safety Instructions
User & Safety Instructions 3025490 Morningstar PS-MPPT-25M Charge controller MPPT 12 V, 24 V 25 A
Description
The ProStar MPPT™ solar charging controller with TrakStar Technology™ is an advanced Maximum Power Point tracking (MPPT) battery charger for power independent photovoltaic (PV) systems up to 1100 watts.
This controller enables series connection of several modules for 12V and 24V battery systems. Detailed battery programming options allow extended battery support for the latest lithium, nickel cadmium and lead acid battery types.
This text is machine translated.
This controller enables series connection of several modules for 12V and 24V battery systems. Detailed battery programming options allow extended battery support for the latest lithium, nickel cadmium and lead acid battery types.
This text is machine translated.
Features
- 120 VOC
- 40 mA power consumption
- LED & LCD
- IP20
- Screw terminal
- Interface (MeterBus/MODBUS/MSView)
- Data Loggers
Scope of delivery
- Solar charge regulator
