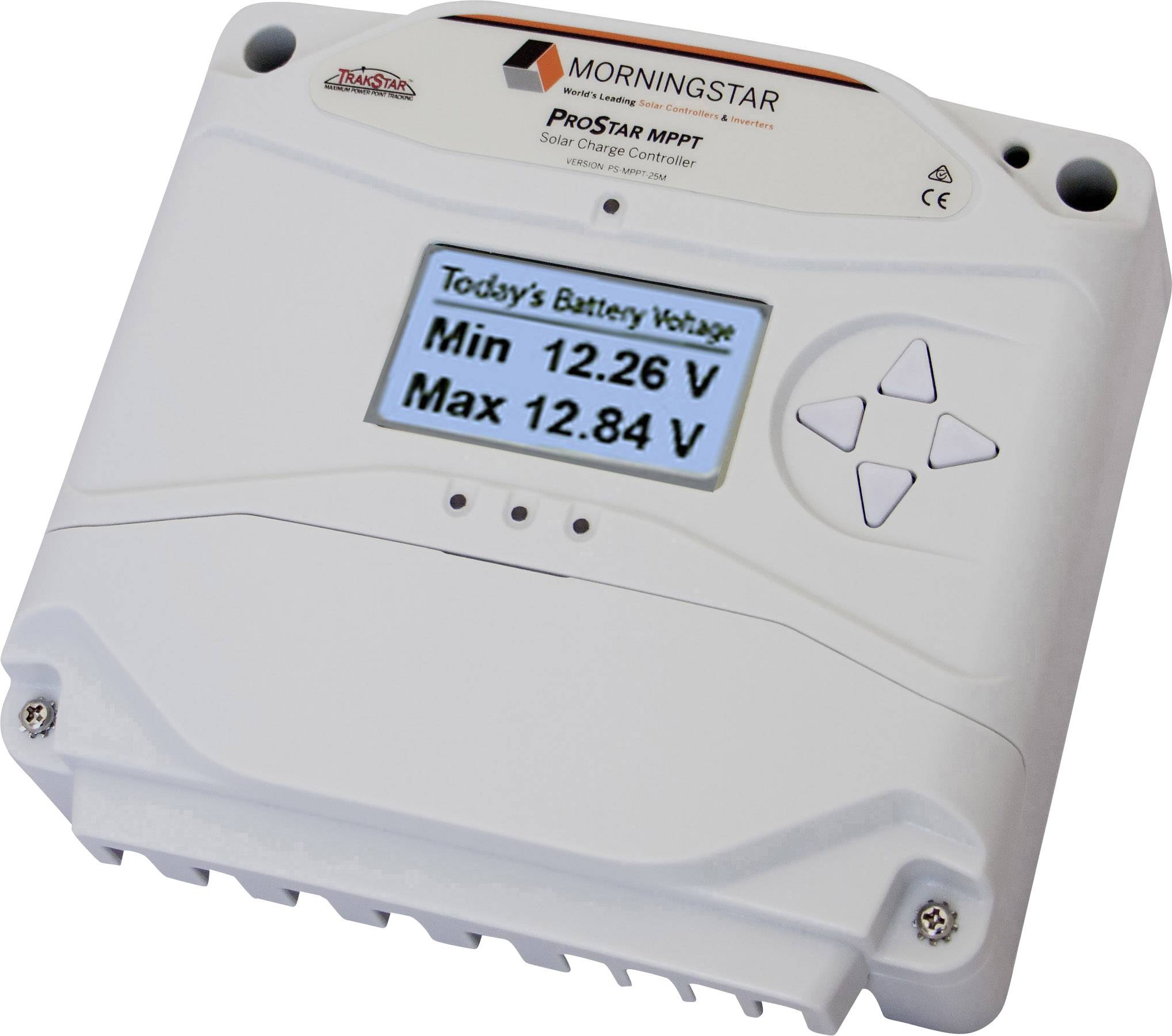

Morningstar PS-MPPT-40M Charge controller MPPT 12 V, 24 V 40 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Charge controller PS-MPPT-40M
- 4-level charging
- Automatic PV-based light control
- Up to 256 days detailed performance and load data logging
Technical specifications
- Max. Module idle voltage 120 V
- Battery voltage range 10, 35 V
- Efficiency 97.3 %
- Protection type IP20
- Transient overvoltage protection 4500 W
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Module power (max.)
1100 W
- Temperature range
-40 °C up to +60 °C
- Charging current (max.)
40 A
- Own power consumption
40 mA
- Matching rechargeable battery
SLA
Lead-acid
Lead acid membrane
LiFePO
Li-ion
- Control type
MPPT
- Dim
(W x H x D) 200 x 170 x 70 mm
- Weight
1700 g
- Current load
40 A
- Module load (max.)
40 A
- Width
200 mm
- Height
170 mm
- Depth
70 mm
Documents & Downloads
Datasheet
Datasheet 1667037 Morningstar PS-MPPT-40M Charge controller MPPT 12 V, 24 V 40 A
User & Safety Instructions
User & Safety Instructions 1667037 Morningstar PS-MPPT-40M Charge controller MPPT 12 V, 24 V 40 A
Description
Mid-range MPPT solar charge controller with TRAK star™ Technology.
Advanced Maximum Power Point Tracking (MPPT) Charger for network-independent (off-grid) photovoltaic systems (PV) with up to 1100 Watts.
This control allows the operation of several modules in series for 12 and 24 V battery systems. Detailed Battery programming options enable improved support for the latest lithium and lead-acid batteries.
This text is machine translated.
Advanced Maximum Power Point Tracking (MPPT) Charger for network-independent (off-grid) photovoltaic systems (PV) with up to 1100 Watts.
This control allows the operation of several modules in series for 12 and 24 V battery systems. Detailed Battery programming options enable improved support for the latest lithium and lead-acid batteries.
This text is machine translated.
Features
- 4-level charging
- Trak Star™ Technologoie
- Up to 256 days detailed performance and load data logging
- Automatic PV-based light control
- MODBUS communication allows simple programming, control, remote data access and charging sync
- LC display
- Automatic voltage detection
- Temperature compensation
- High degree of efficiency
- Reliable and durable
- 7 standard battery settings
- Self-diagnosis
- Low-noise design
- Low power consumption
- Over and deep discharge protection
- Circuit breaker
- Overvoltage protection
- Meter bus interface
- Reverse polarity protection
- Temepraturkontrolle
Scope of delivery
- Charge Controllers
- User manual.
