Morningstar SSD-25 Charge controller PWM 12 V 25 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

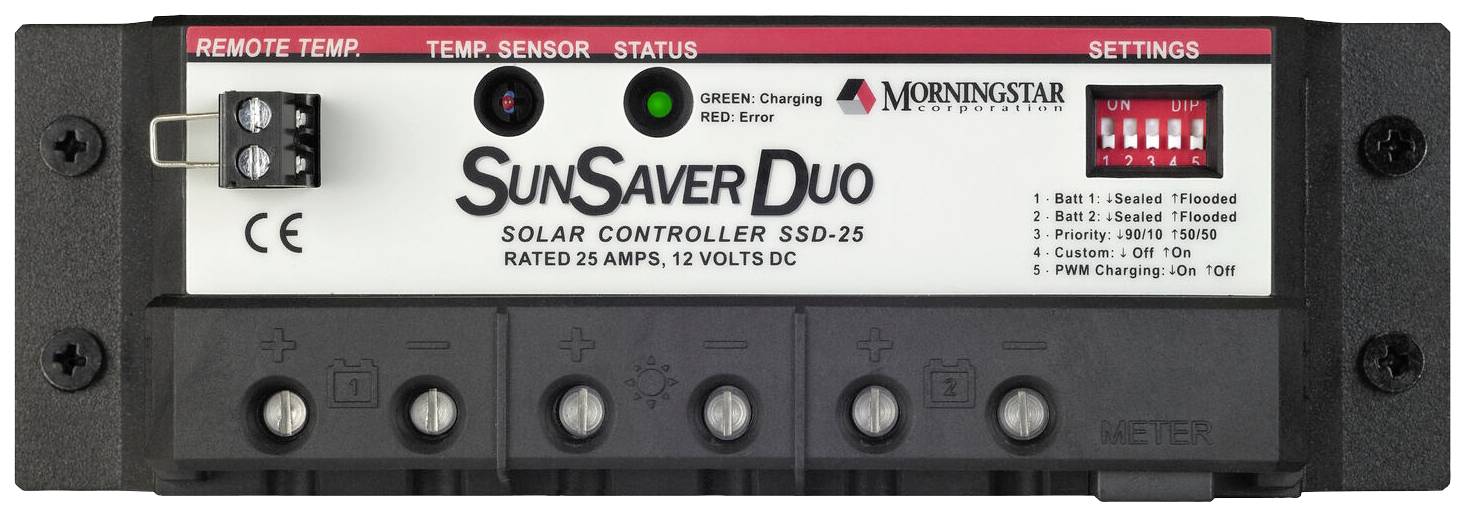

Solar charging regulator Morningstar SSD-25
- Charging two batteries
- Providing valuable information
- Lower costs
- Easy to set up
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
- Charging current (max.)
25 A
- Matching rechargeable battery
Lead
- Control type
PWM
- Dim
(W x H x D) 170 x 60 x 43 mm
- Weight
300 g
- Features
Dual ouput
- Module load (max.)
25 A
- Width
170 mm
- Height
60 mm
- Depth
43 mm
Documents & Downloads
Datasheet
Datasheet 3025481 Morningstar SSD-25 Charge controller PWM 12 V 25 A
User & Safety Instructions
User & Safety Instructions 3025481 Morningstar SSD-25 Charge controller PWM 12 V 25 A
Description
The SunSaver Duo from Morningstar is a highly developed charge regulator for two batteries with pulse width modulation for mobile homes, caravans, boats and country houses. This product charges two separate and isolated batteries at the same time, for example a "home battery" and a "engine battery", based on user-selected priorities.
The SunSaver Duo from Morningstar is based on the legendary SunSaver controller technology, whose long track record in terms of high reliability and improved battery charging is highly recognized in the solar industry. In addition, this regulator has a remote meter with backlight, which can be mounted in or on a wall and shows digital as well as pictogram status information regarding the solar energy system.
The SunSaver Duo is cast in epoxide for environmental protection, can be adjusted by the user by means of DIP switches or connection to a personal computer and has an optional temperature sensor
This text is machine translated.
The SunSaver Duo from Morningstar is based on the legendary SunSaver controller technology, whose long track record in terms of high reliability and improved battery charging is highly recognized in the solar industry. In addition, this regulator has a remote meter with backlight, which can be mounted in or on a wall and shows digital as well as pictogram status information regarding the solar energy system.
The SunSaver Duo is cast in epoxide for environmental protection, can be adjusted by the user by means of DIP switches or connection to a personal computer and has an optional temperature sensor
This text is machine translated.
Features
- SunSaver Duo 25A
- 12VDC
- Longer battery life
- Extensive electronic protection measures
- High reliability
Scope of delivery
- Solar charge regulator
