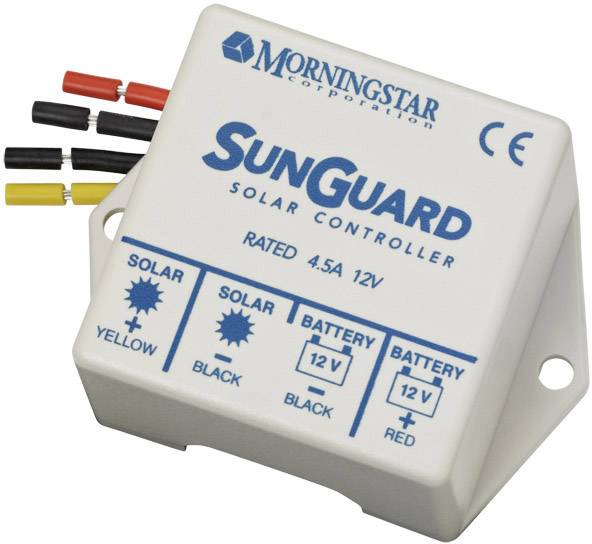

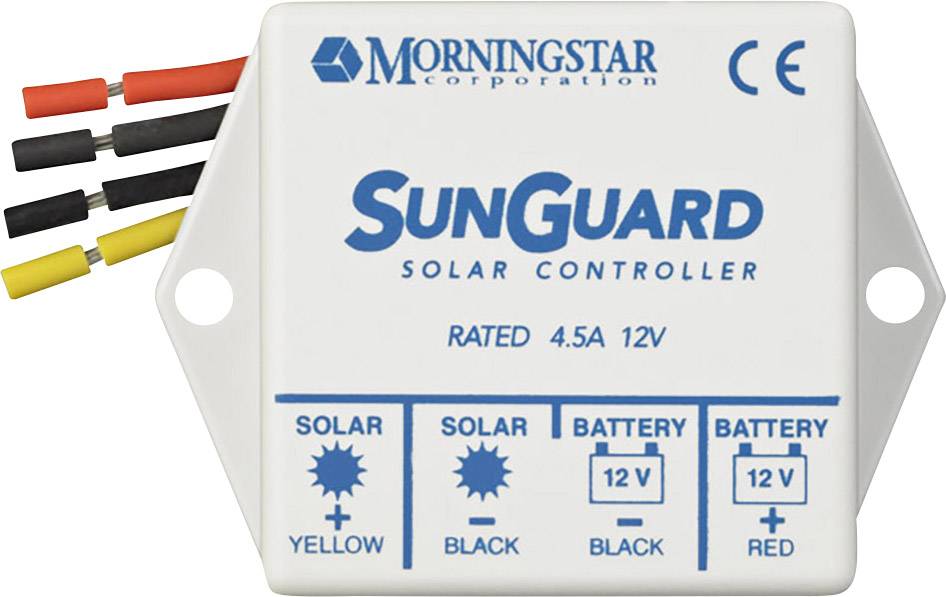

Morningstar Sunguard SG-4 Charge controller PWM 12 V 4.5 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Charge regulator SunGuard SG-4
- 100% electronic circuit
- True pulse width modulation
- Setpoint accuracy up to 60 mV
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
- Temperature range
-40 °C up to +85 °C
- Charging current (max.)
4.5 A
- Own power consumption
6 mA
- Matching rechargeable battery
SLA
Lead-acid
Lead acid membrane
- Control type
PWM
- Dim
(W x H x D) 64 x 38 x 51 mm
- Weight
90 g
- Current load
4.5 A
- Module load (max.)
5.5 A
- Width
64 mm
- Height
38 mm
- Depth
51 mm
Documents & Downloads
Datasheet
Datasheet 1667036 Morningstar Sunguard SG-4 Charge controller PWM 12 V 4.5 A
User & Safety Instructions
User & Safety Instructions 1667036 Morningstar Sunguard SG-4 Charge controller PWM 12 V 4.5 A
Description
Compact, easy to install and high reliability!
The SunGuard with small dimensions and simple mounting convinces optimal effizients at single module systems and small PV systems.
This text is machine translated.
The SunGuard with small dimensions and simple mounting convinces optimal effizients at single module systems and small PV systems.
This text is machine translated.
Features
- 100% electronic circuit
- Consistent high quality
- True pulse width modulation from 0 to 100%
- Series connection (no parallel circuit)
- Setpoint accuracy up to 60 mV
- Temperature compensation
- 25% rated overload
- Load reduction not required
- Lightning protection with 1500 W transient absorbers
- Complete encapsulation with epoxy resin casting mass
- Shock proof ABS-plastic housing
- Weather-proof, Hypalon Connection Cables
- Mounting eyelets
Scope of delivery
- Charge Controllers
- User manual.
