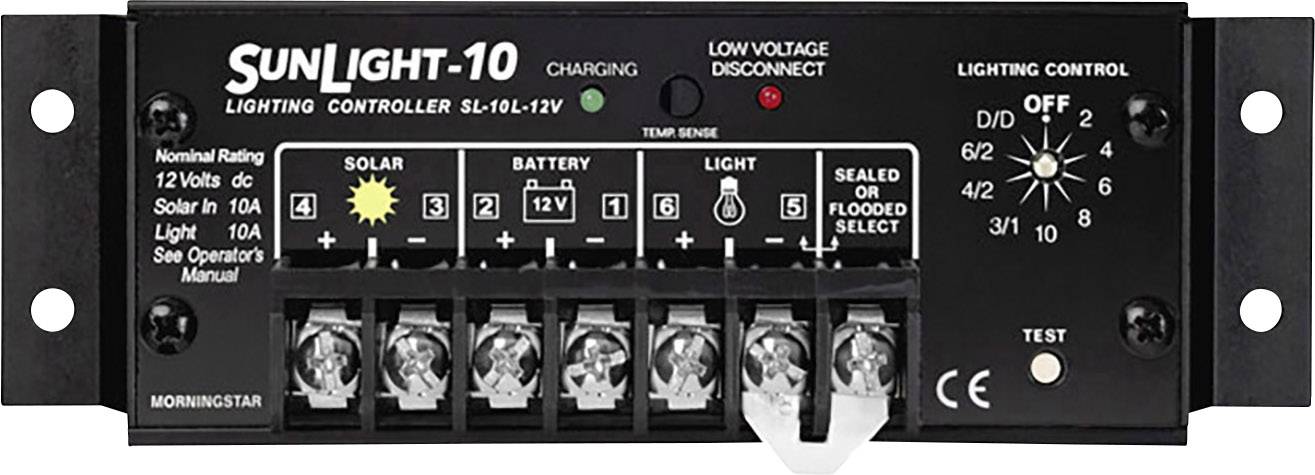

Morningstar SunLight SL-10L 12V Charge controller PWM 12 V 10 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Charge regulator SunLight SL-10L 12V
- Compact and lightweight
- Separate on/off Ein-Funktionen
- 10 lighting programs
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
- Temperature range
-40 °C up to +85 °C
- Charging current (max.)
10 A
- Own power consumption
8 mA
- Matching rechargeable battery
SLA
Lead-acid
Lead acid membrane
- Control type
PWM
- Dim
(W x H x D) 168 x 55 x 34 mm
- Weight
260 g
- Current load
10 A
- Module load (max.)
10 A
- Width
168 mm
- Height
55 mm
- Depth
34 mm
Documents & Downloads
Datasheet
Datasheet 1667003 Morningstar SunLight SL-10L 12V Charge controller PWM 12 V 10 A
User & Safety Instructions
User & Safety Instructions 1667003 Morningstar SunLight SL-10L 12V Charge controller PWM 12 V 10 A
Description
SunLight solar lighting controller with an advanced micro-controller for automatic light control function. With rotary digital switch to select one of the 10 lighting options.
This text is machine translated.
This text is machine translated.
Features
- Micro-controller
- 10 lighting programs
- Fully-automatic operation
- Separate on/off Ein-Funktionen
- Manual Testing option.
- Ubersteuernde undervoltage protection by separation
- Detection of day and night with the help of the
- Solar generator
- Temperature compensation
- 40 Ampere Generator Current in parallel connection to a SUNS aver
- Reliable and durable
- Compact and lightweight
- Mounting eyelets
- LED display
- Epoxy resin encapsulation
- Anodized aluminum casing
Scope of delivery
- Charge Controllers
- User manual.
