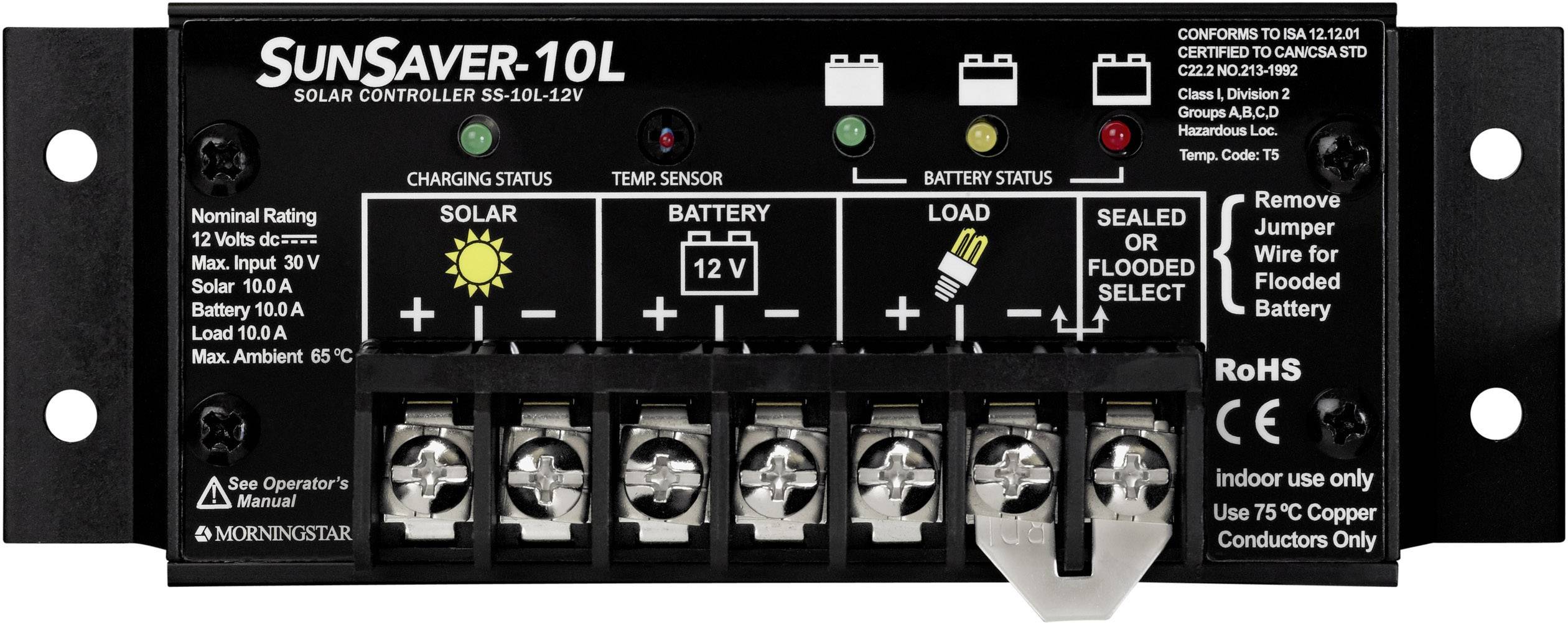

Morningstar SunSaver SS-10L 12V Charge controller PWM 12 V 65 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Charge regulator suns aver
- 4-level charging
- Complete electric protection
- Self-diagnostics to detect critical error
Technical specifications
- Module voltage max. 30 V
- Battery voltage range 6 to 15 V
- Product type
Charge controller
- Nominal voltage
12 V
- Temperature range
-40 °C up to +60 °C
- Charging current (max.)
65 A
- Own power consumption
<8 mA
- Matching rechargeable battery
SLA
Lead-acid
Lead acid membrane
- Control type
PWM
- Dim
(W x H x D) 152 x 55 x 34 mm
- Weight
230 g
- Current load
65 A
- Module load (max.)
10 A
- Width
152 mm
- Height
55 mm
- Depth
34 mm
Documents & Downloads
Datasheet
Datasheet 1667033 Morningstar SunSaver SS-10L 12V Charge controller PWM 12 V 65 A
User & Safety Instructions
User & Safety Instructions 1667033 Morningstar SunSaver SS-10L 12V Charge controller PWM 12 V 65 A
Description
Suns Aver Generation 3!
This proven and reliable charging regulator impresses with its size and a variety of functions only with larger devices. It was a 4-Stufige-Laderegleung is integrated, a complete electrical protection and a self-diagnostics to detect critical error. These and many other features distinguish the suns aver.
This control is generally used in photovoltaic systems, for example, oil/Gasforderanlagen, telecoms and measuring systems, marine equipment and remote houses.
This text is machine translated.
This proven and reliable charging regulator impresses with its size and a variety of functions only with larger devices. It was a 4-Stufige-Laderegleung is integrated, a complete electrical protection and a self-diagnostics to detect critical error. These and many other features distinguish the suns aver.
This control is generally used in photovoltaic systems, for example, oil/Gasforderanlagen, telecoms and measuring systems, marine equipment and remote houses.
This text is machine translated.
Features
- 4-stage charging
- Complete electrical protection
- Self-diagnosis to detect critical errors
- Real 0 to 100% PWM pulse ratio
- Temperature compensation
- Power MOSFET design
- Approved for use in hazardous areas
- Fully automatic operation and automatic troubleshooting
- Maintenance charging
- Balance charge
- Fully encapsulated in epoxy casting compound
- Protection against over-discharge and deep discharge
- Short-circuit-proof
- Reverse polarity protection
- Temperature control
- Overvoltage protection 1500 W per connection
- LED indicator
- Mounting eyelet
- This text is machine translated.
Scope of delivery
- Charge Controllers
- User manual.
