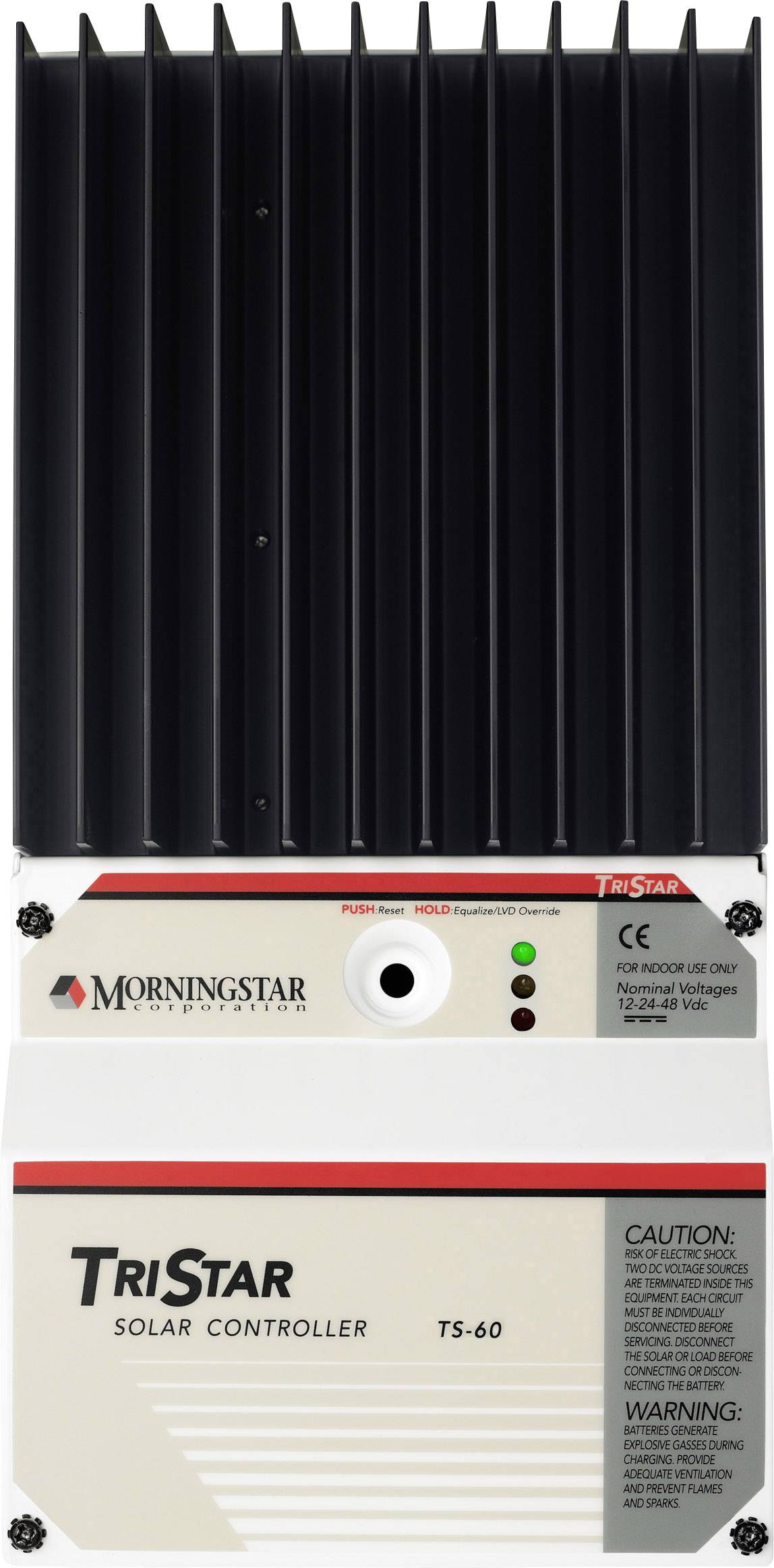

Morningstar TS-60 Charge controller PWM 12 V, 24 V, 36 V, 48 V 60 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Charge controller TS-60
- Energy Harvesting and trak star™ Technologoie
- Extremely fast scanning the entire I-V-curve
- Proprietary four-stage tracking algorithm minimizes power losses
Technical specifications
- Max. Module idle voltage 125 V
- Protection type IP20
- Transient overvoltage protection 4500 W
- Max. Cable size 35 mm²/2 AWG
- Product type
Charge controller
- Nominal voltage
12 V
24 V
36 V
48 V
- Temperature range
-40 °C to +45 °C
- Charging current (max.)
60 A
- Own power consumption
20 mA
- Matching rechargeable battery
SLA
Lead-acid
Lead acid membrane
LiFePO
- Control type
PWM
- Dim
(W x H x D) 127 x 71 x 260 mm
- Weight
1600 g
- Current load
60 A
- Module load (max.)
60 A
- Width
127 mm
- Height
71 mm
- Depth
260 mm
Documents & Downloads
Datasheet
Datasheet 1667043 Morningstar TS-60 Charge controller PWM 12 V, 24 V, 36 V, 48 V 60 A
User & Safety Instructions
User & Safety Instructions 1667043 Morningstar TS-60 Charge controller PWM 12 V, 24 V, 36 V, 48 V 60 A
Description
This Tri Star controller from morning star is a three-function control for reliable solar charging of rechargeable batteries, load control and redirection control. The control works in each one of these three modes of operation, and for simultaneous use of multiple functions, two or more controllers can be used. The charge regulator is based on sophisticated technology and automated manufacturing and offers amazing functionality. The optional Tristar display instrument
The hochentwickeltste and informativste controller display instrument on the market. The controller has UL approval and is suitable for solar home systems as well as for professional applications.
This text is machine translated.
The hochentwickeltste and informativste controller display instrument on the market. The controller has UL approval and is suitable for solar home systems as well as for professional applications.
This text is machine translated.
Features
- Three function control
- High degree of efficiency
- Reliable and durable
- DIP-switch offers the user the choice between 7 different digital presets
- For solar, wind or hydro applications
- Robust thermal design without cooling fan
- Automatic voltage detection
- Low power consumption
- Continuous operation at full power
- Serial RS-232 connection
- Over and deep discharge protection
- Circuit breaker
- Overvoltage protection
- Temepraturkontrolle
- Reverse polarity protection
- Protection against reverse leakage current
- LED display
Scope of delivery
- Charge Controllers
- User manual.
