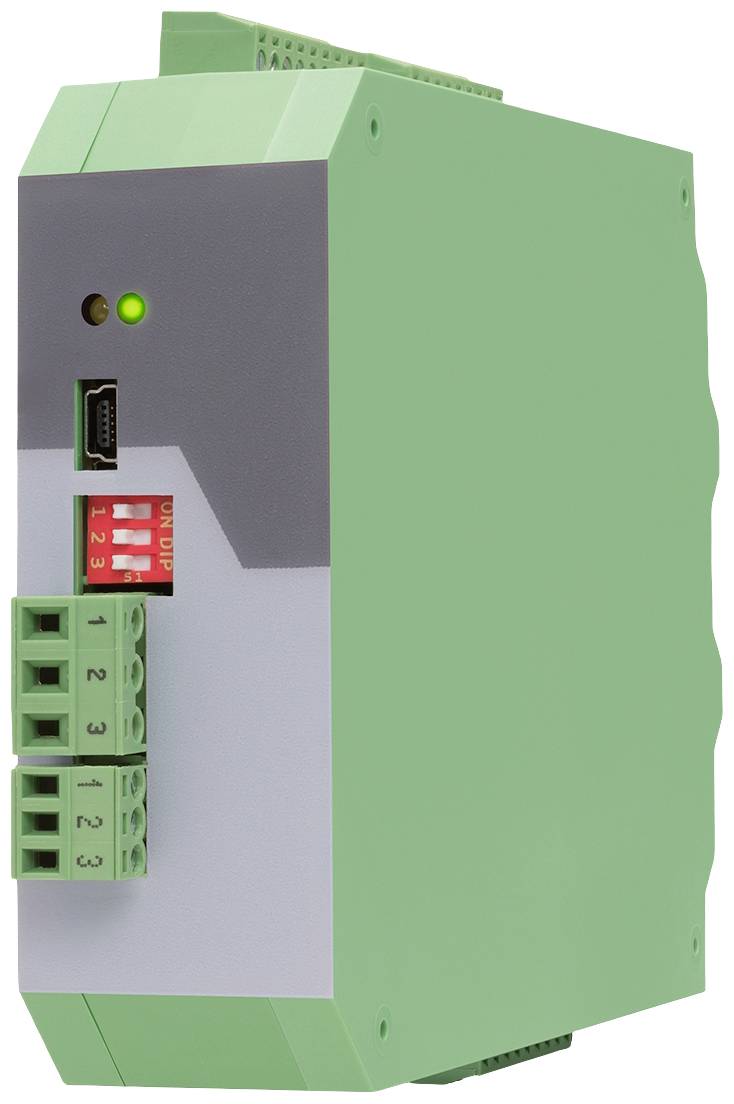

Motrona 6877.5021 IO module Screw terminal No. of digital inputs: 1
EAN:
Part number:
Item no:
Product type
IO module
Interfaces
Screw terminal
Type
6877.5021
Operating voltage
18 - 30 V DC
Height
140 mm
Datasheet (PDF)
Number
Total (€ 289.92 / piece)
€ 289.92
plus VAT.
Only 1 Piece(s) available
Highlights & Details
DMS-measuring amplifier (1-way)
- 6-conductor connection for a DMS full bridge sensor
- 1 x current-voltage output
- Adjustable bridge voltage per from 3 VDC to 10 VDC
- Sensitivity of sensor inputs 1 … 10 mV
- Transmitting the sensor data via RS-485
- Programming via USB and the user interface OS (Freeware)
- 4 x control inputs HTL/PNP
- 4 x control outputs for signaling different operating states
Technical specifications
- Connection type: Screw terminals, 1.5 mm2 / AWG 16
- Power supply input voltage: 18 ... 30 VDC
- Voltage supply protective circuit: Reverse polarity protection
- Power supply remaining ≤ 10 %
- Power supply current consumption: Approx. 50 mA (at 24 V, unloaded)
- DMS supply output voltage: 3-10 VDC
- DMS supply output current: Max. 50 mA
- DMS inputs Number: 1 with readback
- DMS inputs configuration: Voltage
- DMS inputs sensitivity: +/- 5mV, +/-10mV, +/-20mV, +/-40mV, +/-80mV
- DMS inputs resolution 16 bit
- DMS inputs accuracy +/- 0.01% / 10K
- Analog outputs Number: 1
- Analogue output voltage: +/- 10V (external load max. 5 kOhm)
- Analog outputs current: 0/4mA...20mA (max load 270 ohm)
- Analogue output 16-bit resolution
- Analogue outputs accuracy: +/- 0.01% / 10K
- Analog outputs Response time: Depending on the sampling time and filter
- Control inputs Number of:4
- Control inputs Format: HTL, PNP (Low 0 ... 4 V, high 10 ... 30 V
- Control input frequency: Max. 1 kHz
- Control inputs Response time 1 ms
- Control inputs load: Max. 3mA at 24VDC
- Control outputs number: 4
- Control outputs format / level: HTL: 17 ... 29 V (depending on supply voltage)
- CONTROL outputs Output current: Max. 30 mA, High Side Driver
- USB design USB 2.0 Mini B type
- Housing design: 2-wire RS-422
- Housing protocol: LECOM, MODBUS
- Housing material: Plastic
- Casing mounting: On 35 mm DIN rail (according to EN 60715)
- Housing dimensions (W x H x D): 34 x 140 x 118 mm
- Housing protection IP20
- Housing weight: Approx. 100 g
- Ambient temperature operation: 0 °C ... +60 °C (non-condensing)
- Ambient temperature Storage: -25 °C ... +70 °C (not condensing)
- MTBF failure rate in years (continuous operation at 60 °C): 66.5
- Product type
IO module
- Interfaces
Screw terminal
- Type
6877.5021
- Operating voltage
18 - 30 V DC
- Height
140 mm
- Length
118 mm
- Width
34 mm
- No. of digital inputs
1
- Dim
(L x W x H) 118 x 34 x 140 mm
- Manufacturer part #
6877.5021
Documents & Downloads
Datasheet
Datasheet 2899376 Motrona 6877.5021 IO module Screw terminal No. of digital inputs: 1
User & Safety Instructions
User & Safety Instructions 2899376 Motrona 6877.5021 IO module Screw terminal No. of digital inputs: 1
Description
A DMS full-bridge sensor can be connected to this measuring amplifier; an analog output (current/voltage) is available.
It is a USB programming interface and an RS-485 communication interface with LECOM or MODBUS protocol available. With the aid of four HTL control inputs, a reset of the DMS sensors can be triggered.
The four HTL CONTROL outputs transmit the exceeding, undercutting of switching points as well as movements outside of a range. A DMS error can also be output.
By means of the HTL control inputs the self-attitude at the outputs can be retracted.
It is also possible to set the analog output via the HTL control inputs.
This text is machine translated.
It is a USB programming interface and an RS-485 communication interface with LECOM or MODBUS protocol available. With the aid of four HTL control inputs, a reset of the DMS sensors can be triggered.
The four HTL CONTROL outputs transmit the exceeding, undercutting of switching points as well as movements outside of a range. A DMS error can also be output.
By means of the HTL control inputs the self-attitude at the outputs can be retracted.
It is also possible to set the analog output via the HTL control inputs.
This text is machine translated.
Features
- Robust plastic casing for direct snapping onto DIN rails
Scope of delivery
- User manual
