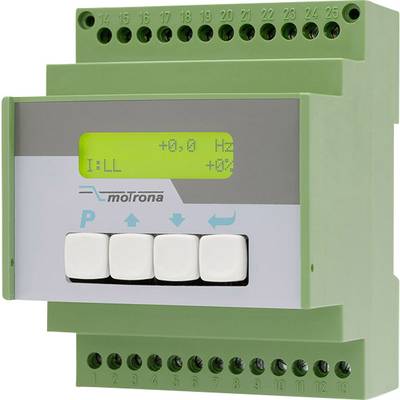

Motrona 6890.5060 6890.5060 Speed monitor
EAN:
Part number:
Item no:
Product type
Speed monitor
Operating voltage
24 V DC
Type
6890.5060
Probe inputs
2
Outputs
1 analogue output/3 relay outputs/3 switching outputs
Datasheet (PDF)
Number
Total (€ 494.96 / piece)
€ 494.96
plus VAT.
Highlights & Details
Universal guard for speed, standstill, and direction of rotation
- 3 programmable relay outputs
- 1 analogue output
Technical specifications
- Auxiliary voltage output for sensor: 5.2V max. 200 mA
- RS422, TTL, HTL encoder inputs:
- Input frequency for TTL max. 1 MHz, HTL max. 350 kHz; Analogue output: +/-10 V, 0 - 20 mA, 4 - 20 mA, resolution 14 Bit, Accuracy: 0.1%; settling time: approx. 200 us
- Relay outputs: 3 potential-free changeover, breaking capacity 30 VDC/2 A or 125 VAC/0.6A or 230VAC/0.3A
- Response time: approx. 4 msec.
- Switching Outputs: 3 fast, short-circuit proof PNP outputs 5-30 V with each 350 mA
- Reaction time:< 1 msec.
- Serial Interface: RS 232/2400 -38400 Baud
- Type
6890.5060
- Product type
Speed monitor
- Probe inputs
2
- Outputs
1 analogue output/3 relay outputs/3 switching outputs
- Operating voltage
24 V DC
- Dim
(L x W x H) 76 x 72 x 91 mm
- Weight
180
- Width
72 mm
- Height
91 mm
- Length
76 mm
Documents & Downloads
Datasheet
Datasheet 1380702 Motrona 6890.5060 6890.5060 Speed monitor
User & Safety Instructions
User & Safety Instructions 1380702 Motrona 6890.5060 6890.5060 Speed monitor
Description
The devices are designed as a guard blocks for the control cabinet installation. They are used to monitor the machines to overspeed, Unterdrehzahl, direction of rotation or standstill. The analog output can also be used for open-loop and closed-loop control purposes.
Features of these devices are the very high frequency range, the fast response and versatility in terms of possible monitoring functions and universal inputs for connection of incremental encoders (RS422), proximity switches, light barriers or HTL and TTL signals. Easy setting via 4 buttons and LCD or serial RS232 interface.
This text is machine translated.
Features of these devices are the very high frequency range, the fast response and versatility in terms of possible monitoring functions and universal inputs for connection of incremental encoders (RS422), proximity switches, light barriers or HTL and TTL signals. Easy setting via 4 buttons and LCD or serial RS232 interface.
This text is machine translated.
Features
- Analog output proportional to the programd input frequency; 3 programmable relay outputs for overspeed, Unterdrehzahl and standstill
Scope of delivery
- CD with operator software
- User manual
