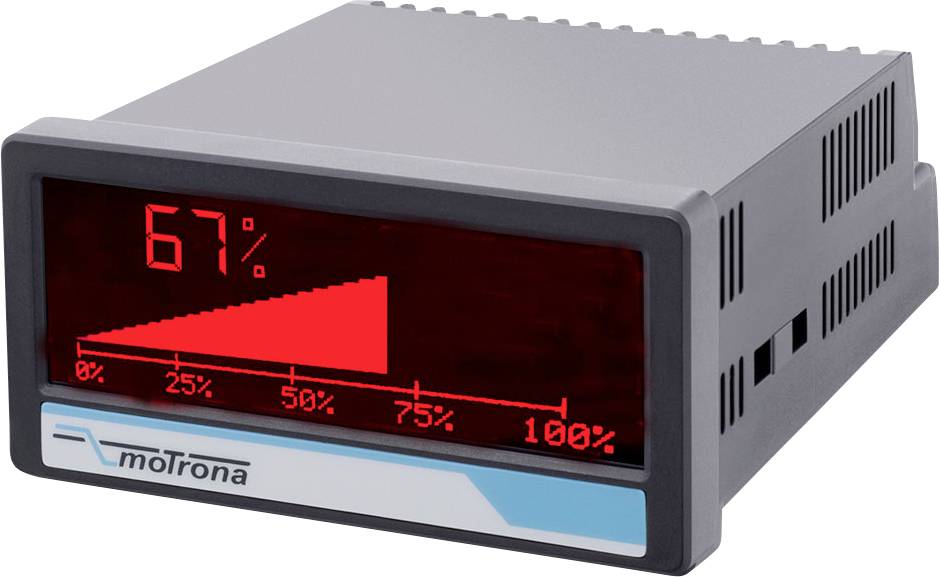

Motrona 6967.5150 Digital display
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Control inputs – number: 5
- Control inputs – response time 1 ms
- Control inputs – load: Max. 2 mA at 24 VDC
- Control outputs - number: 4
- CONTROL-outputs – response time: Approx. 50 ms
- Housing – material: ABS, UL 94 V-0
- Housing – mounting: Panel-mounted
- Connections – Connection type: Screw terminals, 1.5 mm² / AWG 16
- Control outputs - Output current: Max. 200 mA
- Ambient temperature – operation: -20°C … +60°C non-condensing
- DC voltage supply – Protection against incorrect polarity
- Power supply DC – power consumption: Approx. 100 mA (no load)
- External fuse: T 0.5 A.
- AC power supply (option AC) Power consumption: Approx. 3 VA (unloaded)
- AC power supply – external fuse: T 0.1A
- Auxiliary voltage output – For DC supply: 24 VDC (approx. V smaller than input voltage), max. 250 mA or 5 VDC (± 15%), max. 250 mA
- Auxiliary voltage output – For AC supply: 24 VDC (± 15%) (max. 150 mA to 45°C / 80 mA from 45°C) or 5 VDC (± 15%), max. 250 mA
- Auxiliary voltage output - EtherCAT® interface Connection: 2 Ethernet ports RJ45 with galvanic isolation
- Auxiliary voltage output (1 ECAT IN / 1 ECAT OUT) – data transfer rate: 100 Mbit/s full duplex
- Auxiliary voltage output (1 ECAT IN / 1 ECAT OUT) – Communication: EtherCAT® Sub Device with CoE (CANopen over EtherCAT®) 1 send process data object (TxPDO) and 1 receive process data object (RxPDO) with fixed mapping
- Control inputs – format: HTL, PNP (low 0 … 3 V, high 9 … 30 V)
- Analog Output – Configuration: Current or Voltage Output
- Analog output – (AO/AR option) Voltage output: -10…+10 V (max. 2 mA)
- Analogue output – current output: 0/4 … 20 mA (load max. 270 Ohm)
- Analogue output – 16-bit resolution
- Analogue output – response time: Approx. 50 ms
- Control outputs – (AO/AR/CO/CR option) Format / Level: 5 … 30 V (depending on the voltage on COM+), PNP
- Relay Outputs – Number: 2
- Relay Outputs – (Option RL) Configuration: Changer (floating)
- Relay outputs - AC switching rating: Max. 250 VAC / 3 A / 750 VA
- Relay outputs - DC switching rating: Max. 150 VDC / 2 A / 50 W.
- Relay outputs – response time: Approx. 50 ms
- Relay Outputs - Serial Interface: Format (Option A0/CO): RS232 (Option AO/AR/CO/CR) Format (Option AR/CR) RS485
- Relay Outputs - Baud Rate: 9600, 19200 or 38400 Baud
- Relay Outputs – Lecom or Modbus RTU protocol
- Display – Type: Graphic LCD with backlight
- Display – Display area: 8 decades plus sign (-99999999 … 99999999) 13 mm
- Display – Digit height (single + Dual): 26 mm digit height (large display) red/green/yellow (switchable)
- Display - Colour: Touch screen (resistive)
- Housing – cut-out (W x H): 91 x 43 mm
- Ambient conditions Altitude: Max. 2000 m above sea level
- Product type
Digital display
- Type
6967.5150
- Display technology
LCD
IP65 (on front)/IP20 (on back)
- Display (counts)
-99999999
- Dim
(L x W x H) 116 x 96 x 48 mm
- Weight
200 g
- Max. operating voltage
230 V AC
30 V DC
- Min. operating voltage
115 V AC
18 V DC
- Display lighting
red
green
yellow
- Width
96 mm
- Height
48 mm
- Length
116 mm
- Interfaces
RJ45
RJ45
- Digit height
26 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3805208 Motrona 6967.5150 Digital display
User & Safety Instructions
User & Safety Instructions 3805208 Motrona 6967.5150 Digital display
Description
The EtherCAT display collects, processes, analyzes, visualizes and transmits process data. Thanks to the versatile interface the device can be configured and scaled during the operation and in parallel for the transmission of status information. With its resistive touch screen, multi-color graphic display (red, green, yellow) and an integrated bar graph display, the Ideal indicator is suitable as an on-site display device.
This text is machine translated.
This text is machine translated.
Features
- EtherCAT Interface
- 5 control inputs for remote triggering
- Power supply 18 ... 30 VDC
- Installation housing with 96 x 48 mm and protection class IP65
- Bright and high-contrast graphics display with event-dependent color variants
- Emulation of a 7-segment display with symbols, units and bar graph display
- Intuitive and easy configuration through plain text and touch-screen
Scope of delivery
- User manual
