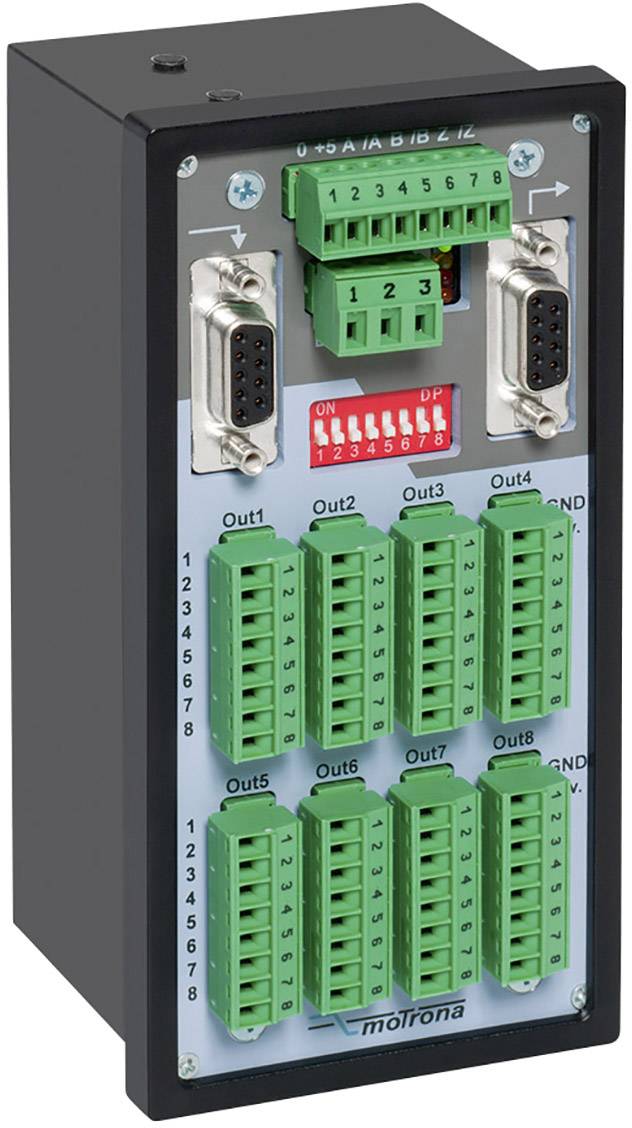

Motrona 7186.5280 Distributor/splitter
EAN:
Part number:
Item no:
Product type
Distributor/splitter
Operating voltage
24 V DC
Type
7186.5280
Probe inputs
1
Outputs
8
Datasheet (PDF)
Highlights & Details
Encoder distributor/splitter for incremental signals
- 1 pulse input in the format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422]
- Input frequency up to 200 kHz [HTL] or 500 kHz [RS422 / TTL]
- 8 push-pull output stages, formats corresponding to the input signals, but with individual assignment of the output level for each output
Technical specifications
- Type
7186.5280
- Product type
Distributor/splitter
- Probe inputs
1
- Outputs
8
- Operating voltage
24 V DC
- Dim
(L x W x H) 60.5 mm x 72 mm x 144 m
- Mounting depth
60.5 mm
- Weight
400 g
- Width
72 mm
- Height
144 m
- Length
60.5 mm
Documents & Downloads
Datasheet
Datasheet 2160784 Motrona 7186.5280 Distributor/splitter
User & Safety Instructions
User & Safety Instructions 2160784 Motrona 7186.5280 Distributor/splitter
Description
The GV480 is a very compact, space-saving and extremely versatile 8-way distributor for signals of incremental encoders and measuring systems.
The device is a complete electrical isolation of all input and output circuits against each other. This is of particular advantage for pulse distribution under system parts very far away from the area as well as for unfavorable EMC conditions, potential shifts and poor earthing conditions within large systems.
The encoder input of the devices can be switched and processes differential TTL or RS422 signals as well as HTL signals of a symmetrical or asymmetrical type. The isolated output channels consist of counter-current stages with individual assignment of the output level.
Several devices can be cascaded via a separate plug connection without any loss of terminals. In case of cascaded arrangements, it is also possible to switch between the signal sources.
This text is machine translated.
The device is a complete electrical isolation of all input and output circuits against each other. This is of particular advantage for pulse distribution under system parts very far away from the area as well as for unfavorable EMC conditions, potential shifts and poor earthing conditions within large systems.
The encoder input of the devices can be switched and processes differential TTL or RS422 signals as well as HTL signals of a symmetrical or asymmetrical type. The isolated output channels consist of counter-current stages with individual assignment of the output level.
Several devices can be cascaded via a separate plug connection without any loss of terminals. In case of cascaded arrangements, it is also possible to switch between the signal sources.
This text is machine translated.
Features
- Compact housing for mounting on 35 mm DIN rail (according to EN 60715); connection via screw terminals
