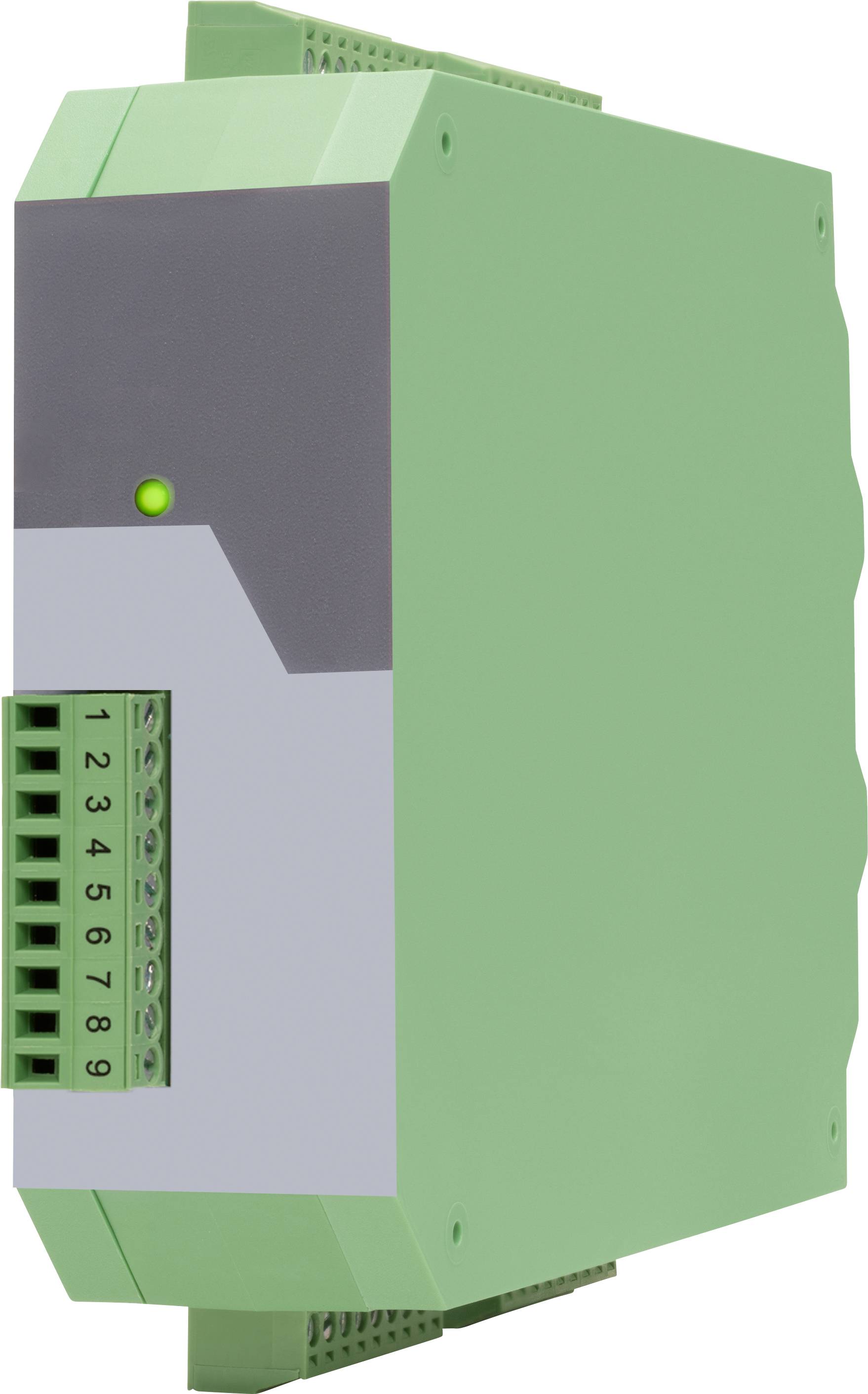

Motrona 7379.5020.CO 7379.5020.CO Signal converter 1 pc(s)
Part number:
Item no:
Product type
Signal converter
Input signal (current) (max.)
20 mA
Input signal (voltage) (max.)
10 V
Type
7379.5020.CO
Dim
(L x W x H) 140 x 34 x 109 mm
Datasheet (PDF)
Technical specifications
- AWG 16
- Voltage supply – Protective circuit: Reverse polarity protection
- Reference output – output voltage: +10 V
- Reference output – load: Max. 10 mA/ ≥ 1 kOhm
- Analog inputs – Number: 4
- Analogue inputs – Configuration: 2x power and 2x voltage input
- Analogue inputs – resolution / accuracy: 16 bit / ± 0.2 % (25 °C)
- Control inputs – number: 3
- Control inputs – (option "CO") Format: HTL, PNP (Low 0 … 3 V, High 9 … 30 V)
- CONTROL-inputs – response time: Approx. 1ms
- Control inputs – transmission time (IO link): Every approx. 1 ms - (IO link cycle time)
- Control inputs – load: Max. 2 mA at 24VDC
- Control outputs - number: 2
- Control outputs – response time: Min. 1 ms
- Control outputs (depending on "Sampling Time" and "Average Filter" setting) - Transfer time (IO Link)): All approx. 1 ms - (IO Link cycle time)
- IO-Link - Unit / Specification: Device / IO Link V1.1
- IO-Link - bit rate: COM 3 (230.4 kbit / s)
- IO-Link - Port Class: Type A.
- IO-Link - Cycle time: Min. 1 ms
- IO-Link - Data width: 11 bytes (4 x 2 bytes (input data) + 1 bytes (CO status) + 2 bytes
- Display elements – function: 1x LED green for operating mode or IO Link status (with option "CO")
- Housing – Material: Plastic
- Housing – Mounting: On 35 mm DIN rail
- Housing – Dimensions (W x H x D): 34 x 100 x 131 mm
- Housing (without connectors) – Weight: Approx. 160 g.
- Housing (without connectors) – Protection class: IP20
- Ambient conditions – altitude: Max. 2000 m above sea level
- Ambient conditions – humidity: Max. 80% relative humidity up to 30°C.
- Type
7379.5020.CO
- Product type
Signal converter
- Input signal (current) (max.)
20 mA
- Input signal (voltage) (max.)
10 V
- Dim
(L x W x H) 140 x 34 x 109 mm
- Connection
Screw terminal
- Output (voltage)
5 - 30 V (je nach Spannung an Com+), PNP
- Output (current)
max. 100 mA je Ausgang (bei externer Com+ Versorgung!)
- Operating voltage
18 - 30 V DC
- Max. operating voltage
30 V DC
- Min. operating voltage
18 V DC
- Input signal (voltage)
-10 - +10 V (1 MOhm)
- Input signal (current)
0 - 20 mA / 4 - 20 mA (100 Ohm)
- Input resistance
1 MΩ
- Content
1 pc(s)
- Configuration
Software
- Width
34 mm
- Height
109 mm
- Length
140 mm
- Current consumption
90 mA
- Max. ambient temperature
60 °C
- Min. ambient temperature
-20 °C
- Supply voltage (num.)
24 V DC
- Operating voltage U(B)
12 ... 30 VDC
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3805214 Motrona 7379.5020.CO 7379.5020.CO Signal converter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3805214 Motrona 7379.5020.CO 7379.5020.CO Signal converter 1 pc(s)
Description
Signal converter with 2 analogue inputs for current and 2 analogue inputs for voltage, as well as IO-Link interface. The converter with option CO also has 3 control inputs and 2 control outputs. This IO-Link coupler reliably transmits incremental signals to the IO-Link communication world. In addition, a USB-port is available, on which the converted signals can also be read. The device configuration is done conveniently via the USB interface or alternatively via IO-Link with the help of common engineering tools.
This text is machine translated.
This text is machine translated.
Features
- 2 analog inputs for current (0…20mA or 4…20mA - adjustable)
- 2 analog inputs for voltage (-10V … +10V)
- IO-Link interface
- 3x HTL PNP control inputs and 2x PNP control outputs
- Power supply 12 ... 30 VDC
- Compact case for mounting on 35 mm DIN rail
- (According to EN 60715)
Scope of delivery
- User manual
