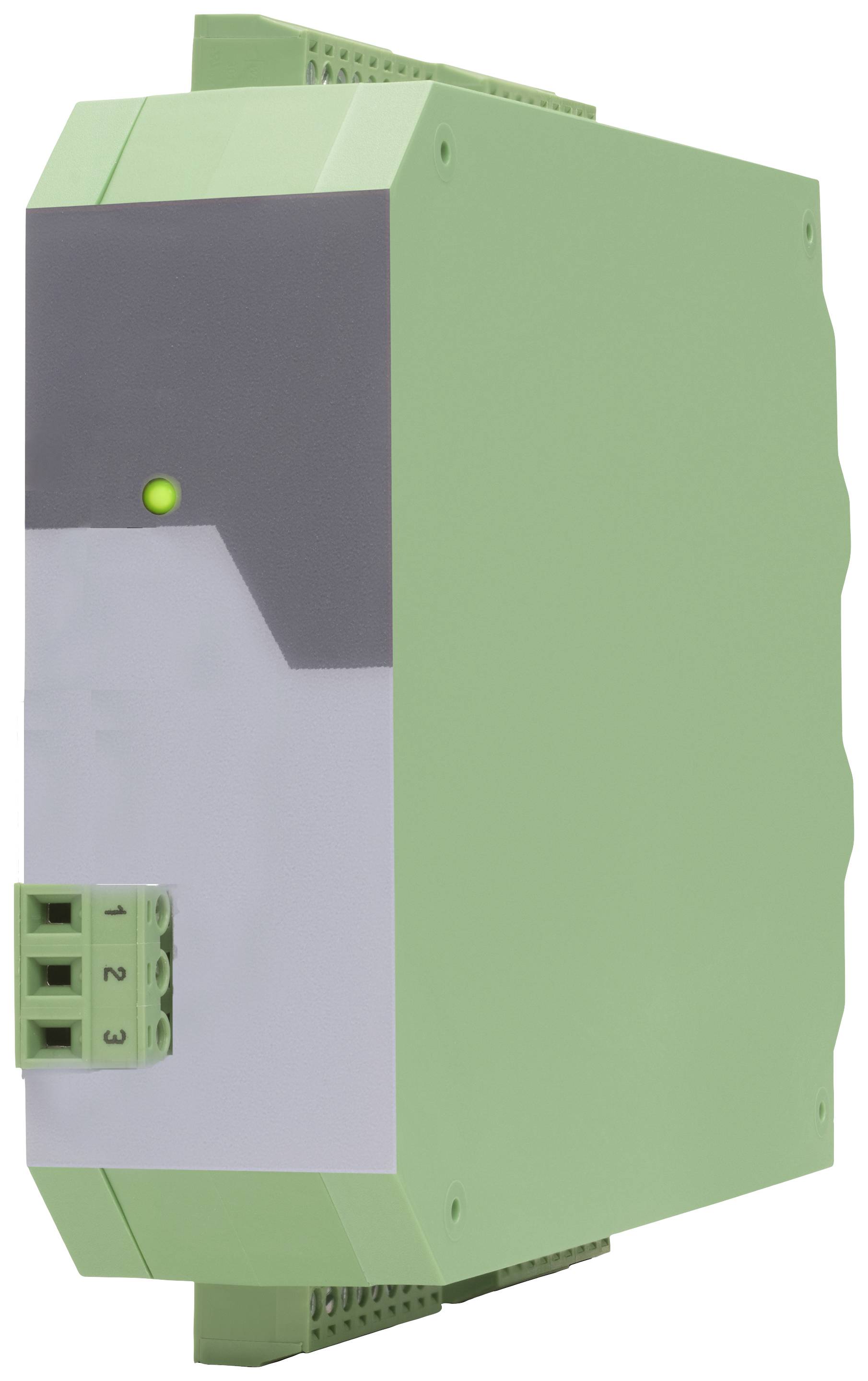

Motrona 7379.5020 IO module Screw terminal No. of digital inputs: 4
EAN:
Part number:
Item no:
Product type
IO module
Interfaces
Screw terminal
Type
7379.5020
Operating voltage
24 V DC
Operating voltage
10 - 30 V DC
Datasheet (PDF)
Number
Total (€ 217.65 / piece)
€ 217.65
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Analogue to IO-Link converter
- 4 analogue inputs
- 2x current and 2x voltage input
- Voltage input: -10 … +10 V (Ri ≈ 1 MOhm)
- Current input: 0 … 20 mA / 4 … 20 mA (Ri ≈ 100 ohms)
- Resolution 16 bit / ± 0.2% (25°C)
- Specification: Device / IO link V1.1
- Bit rate COM 3 (230.4 kBit/s)
- Port class: Type A
- Cycle time: 3ms
- Data width: 11 bytes (4 x 2bytes (input data) + 1 bytes (CO status) + 2 bytes (diagnostic data))
Technical specifications
- Connection type: Screw terminals, 1.5 mm2/ AWG 16
- Voltage supply input voltage: 24VDC (18 ... 30 VDC) via 10 link
- Voltage supply protective circuit: Reverse polarity protection
- Power supply current consumption: Approx. 90 mA (unloaded)
- Reference output voltage: +10 V
- Reference output accuracy ± 0.1 %
- Reference output load: Max. 10 mA/> 1 kOhm
- Analog inputs Number: 4
- Analogue input configuration: 2x power and 2x voltage input
- Analog inputs Voltage input: -10 ... +10 V (Ri 1 MOhm)
- Analog inputs Current input: 0 ... 20 mA / 4 ... 20 mA (Ri 100 ohm)
- Analogue inputs Resolution / Accuracy 16 Bit / ± 0.2 % (25 °C)
- Control inputs (only with option "CO") Number: 3
- Control inputs (only with option "CO") Format: HTL, PNP (Low 0 ... 3 V, high 9 ... 30 V
- Control inputs (only with option "CO") Frequency: Max. 1 kHz
- Control inputs (only with option "CO") Response time: Approx. 1 ms
- Control inputs (only with option "CO") transmission time (10 link): Every approx. 1 ms - (10 link cycle time)
- Control inputs (only with option "CO") Load: Max. 2 mA at 24VDC
- Control outputs (only with "CO" option) Number: 2
- Control outputs (only with option "CO") Format: 5 ... 30 V (depending on voltage on Com+), PNP
- Control outputs (only with the "CO" option) Output current: Max. 100 mA per output
- CONTROL-outputs (only with option "CO") Response time: Min. 1 ms (Depending on "Sampling Time" and "Average Filter" settings)
- Control outputs (only with option "CO") transmission time (10 link)): Every approx. 1 ms - (10 link cycle time)
- IO-Link module/specification: Device /10 link V1.1
- IO-Link bitrate COM 3 (230.4 kBit/s)
- IO-Link Port Class: Type A
- IO-Link cycle time: Min. 1 ms
- IO-Link Data width: 11 bytes (4 x 2bytes (input data) + 1 bytes ("CO" status) + 2 bytes (diagnostic data))
- Display elements Number of:1 LED
- Display elements Function: 1 x green for operating status or 10 link status (with option "CO")
- Housing material: Plastic
- Casing mounting: On 35 mm DIN rail (according to EN 60715)
- Housing dimensions (W x H x D): (Without connections) 34 x 100 x 131 mm
- Case dimensions (W x H x D): (With connections) 34 x 109 x 140 mm
- Housing weight: Approx. 160 g
- Housing protection IP20
- Ambient temperature operation: -20 °C ... +60 °C non-condensing
- Ambient temperature Storage: -25 °C ... +70°C
- Ambient conditions Altitude: Max. 2000 m above sea level
- Ambient conditions Humidity: Max. 80% relative humidity up to 30°C.
- Environmental conditions Pollution level: 2
- MTBF failure rate in years: (Continuous operation at 60 °C) 102.7 a
- Product type
IO module
- Interfaces
Screw terminal
- Type
7379.5020
- Operating voltage
24 V DC
- Operating voltage
10 - 30 V DC
- Height
109 mm
- Length
140 mm
- Width
34 mm
- No. of digital inputs
4
- Dim
(L x W x H) 140 x 34 x 109 mm
- Manufacturer part #
7379.5020
Documents & Downloads
Datasheet
Datasheet 2899373 Motrona 7379.5020 IO module Screw terminal No. of digital inputs: 4
User & Safety Instructions
User & Safety Instructions 2899373 Motrona 7379.5020 IO module Screw terminal No. of digital inputs: 4
Description
The device can be used as a signal converter for analog standard signals (-10 … +10 V or 0/4 … 20 mA), which are to be transmitted as cyclic process values via IO-Link. Along with its four analogue inputs (two permanently designed as voltage and the other two permanently as current inputs) the signal converter also has a highly exact reference output (+10.00 V ± 0.1 %), which can be used for connecting various potentiometers.
This text is machine translated.
This text is machine translated.
Features
- Robust plastic casing for direct snapping onto DIN rails
Scope of delivery
- User manual
