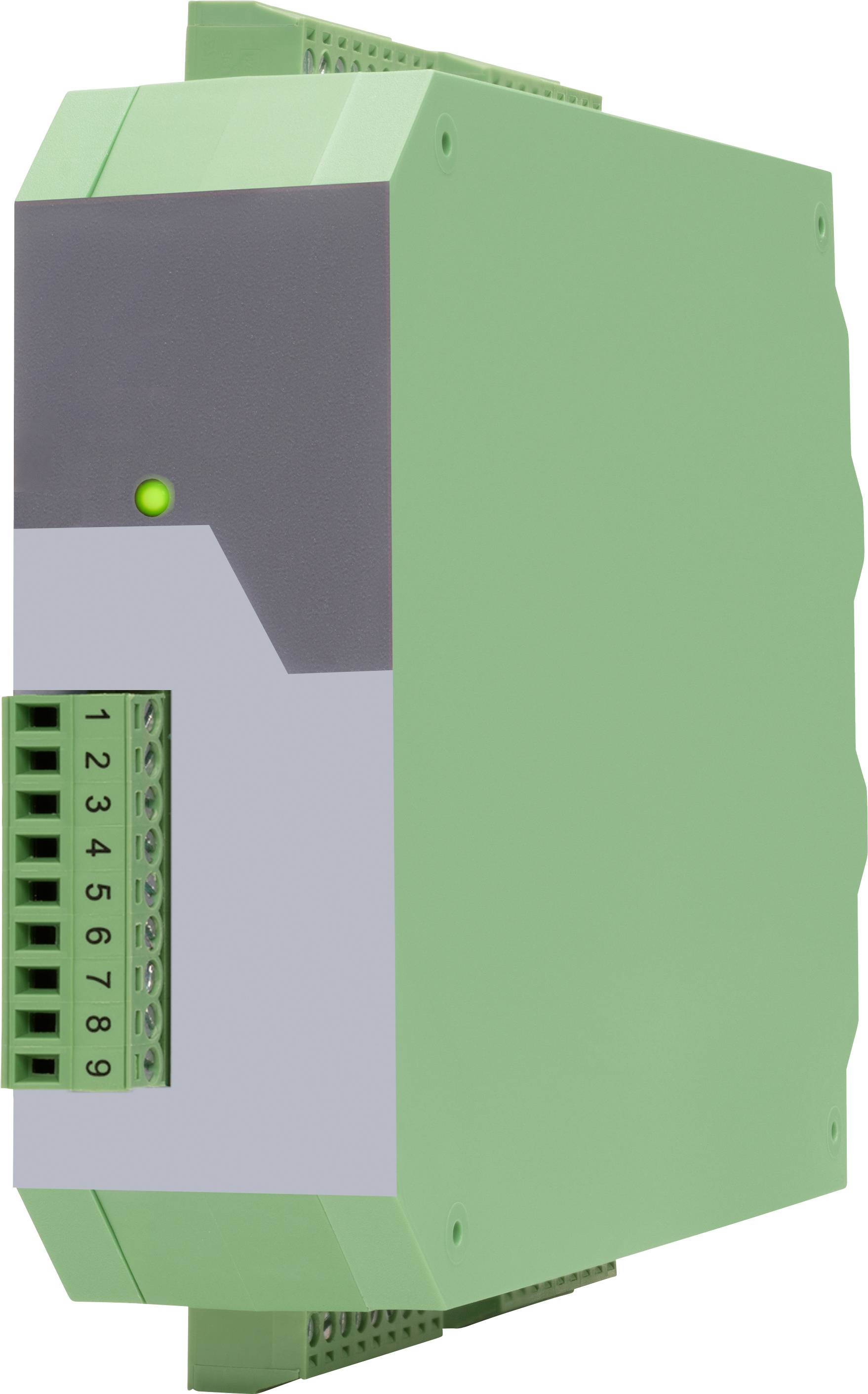

Motrona 7379.5022 7379.5022 Signal converter 1 pc(s)
Part number:
Item no:
Product type
Signal converter
Input signal (voltage) (max.)
30 V
Type
7379.5022
Dim
(L x W x H) 140 x 34 x 109 mm
Connection
Screw terminal
Datasheet (PDF)
Technical specifications
- AWG 16
- Voltage supply – Protective circuit: Reverse polarity protection
- IO-Link - Unit / Specification: Device / IO Link V1.1
- IO-Link - bit rate: COM 3 (230.4 kbit / s)
- IO-Link - Port Class: Type A.
- IO-Link - Cycle time: Min. 2 ms
- IO-Link – Data width: 15 bytes (3 x 4bytes (input data) + 1 bytes (CO status) + 2 bytes
- Display elements – function: 1x LED green for operating mode or IO Link status (with option "CO")
- Housing – Material: Plastic
- Housing – Mounting: On 35 mm DIN rail
- Housing – Dimensions (W x H x D): 34 x 100 x 131 mm
- Housing (without connectors) – Weight: Approx. 160 g.
- Housing (without connectors) – Protection class: IP20
- Ambient conditions – altitude: Max. 2000 m above sea level
- Ambient conditions – humidity: Max. 80% relative humidity up to 30°C.
- Transmitter power supply – output voltage: 5 VDC and 24 VDC (approx. 1V lower than input voltage)
- Sensor supply – Output current: Max. 125 mA
- Encoder supply – IO Link master port: Min. 200 mA
- Incremental Inputs – Number: 2
- Incremental Inputs - Tracks: A, B (HTL Single Ended, TTL Single Ended) A, /A, B, /B (RS422, HTL Differential)
- Incremental Inputs - Configurations: RS-422, HTL Differential, HTL Single Ended, TTL
- Incremental inputs – RS422: Max. 1 MHz (RS-422 differential signal > 0.5 V)
- Incremental Inputs – HTL Differential: Max. 1 MHz (HTL Differential Signal > 1 V)
- Incremental inputs – HTL single ended: Max. 350kHz, (low: 0 … 5V, high: 9 … 30 V)
- Incremental inputs – TTL: Max. 350kHz, (low: 0 … 0.6V, high: 2.2 … 5V
- Type
7379.5022
- Product type
Signal converter
- Input signal (voltage) (max.)
30 V
- Dim
(L x W x H) 140 x 34 x 109 mm
- Connection
Screw terminal
- Operating voltage
18 - 30 V DC
- Max. operating voltage
30 V DC
- Min. operating voltage
18 V DC
- Input signal (voltage)
HTL Single Ended: Low: 0 … 5V. High: 9 … 30 V; TTL: Low: 0 … 0.6V. High: 2.2 … 5V
- Content
1 pc(s)
- Configuration
Software
- Width
34 mm
- Height
109 mm
- Length
140 mm
- Current consumption
75 mA
- Max. ambient temperature
60 °C
- Min. ambient temperature
-20 °C
- Supply voltage (num.)
24 V DC
- Operating voltage U(B)
12 ... 30 VDC
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3805206 Motrona 7379.5022 7379.5022 Signal converter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3805206 Motrona 7379.5022 7379.5022 Signal converter 1 pc(s)
Description
Signal converter with incremental input and IO-Link interface for encoders and sensors with HTL-, TTL-, RS422-, NPN-, PNP- or NAMUR signal standard. This IO-Link coupler reliably transmits incremental signals to the IO-Link communication world. In addition, a USB-port is available, on which the converted signals can also be read. The device configuration is done conveniently via the USB interface or alternatively via IO-Link with the help of common engineering tools.
This text is machine translated.
This text is machine translated.
Features
- 1 incremental input (A, /A, B, /B) for HTL/TTL/RS422 for NPN/PNP/NAMUR encoders and sensors
- IO-Link interface
- Power supply 12 ... 30 VDC
- Compact case for mounting on 35 mm DIN rail
- (According to EN 60715)
Scope of delivery
- User manual
