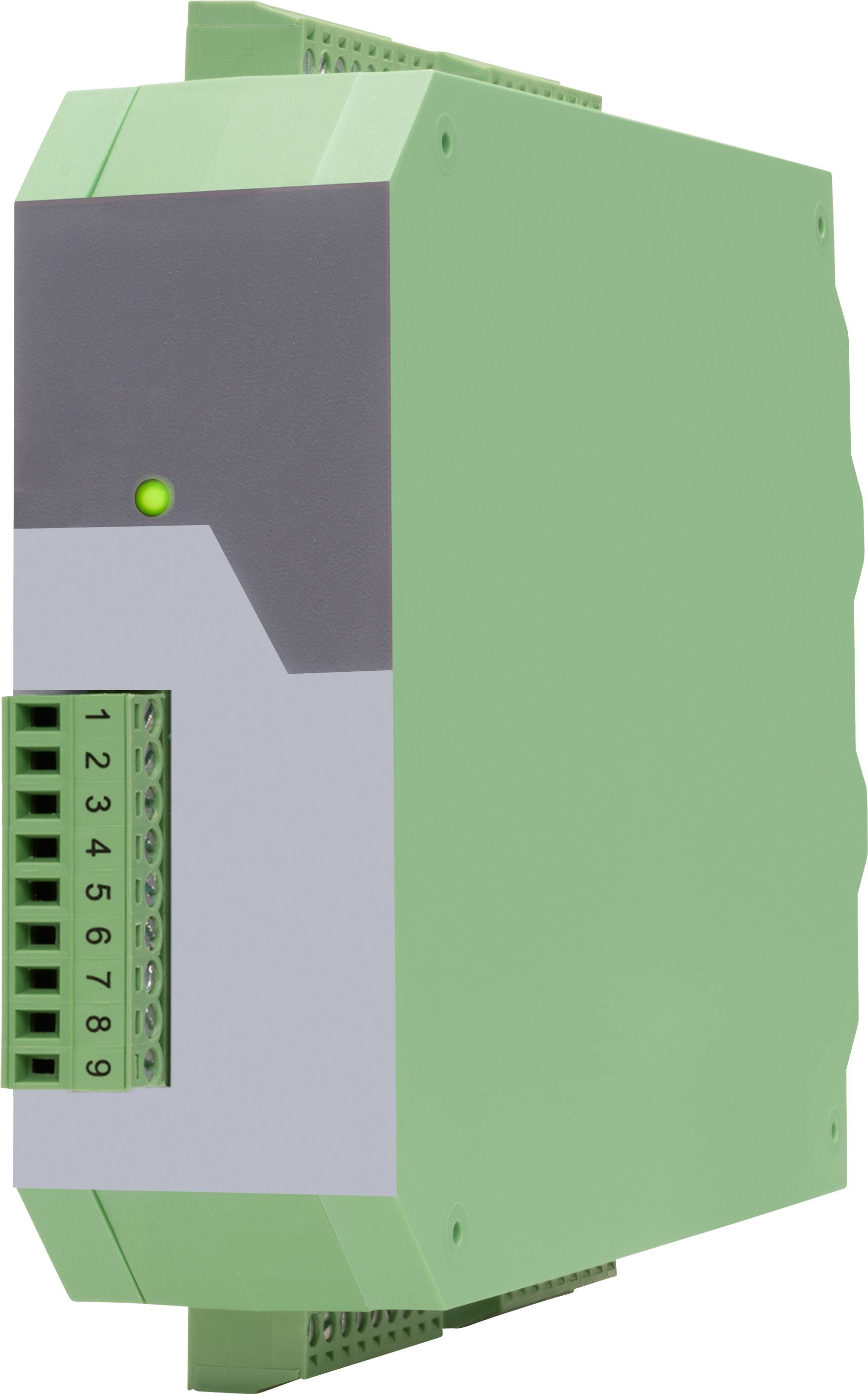

Motrona 7379.5023.CO 7379.5023.CO Signal converter 1 pc(s)
Part number:
Item no:
Product type
Signal converter
Input signal (current) (max.)
2 mA
Input signal (voltage) (max.)
30 V
Type
7379.5023.CO
Dim
(L x W x H) 140 x 34 x 109 mm
Datasheet (PDF)
Technical specifications
- AWG 16
- Voltage supply – Protective circuit: Reverse polarity protection
- Control inputs – number: 3
- CONTROL-inputs – response time: Approx. 1ms
- Control inputs – transmission time (IO link): Every approx. 1 ms - (IO link cycle time)
- Control inputs – load: Max. 2 mA at 24VDC
- Control outputs - number: 2
- Control outputs – response time: Min. 1 ms
- IO-Link - Unit / Specification: Device / IO Link V1.1
- IO-Link - bit rate: COM 3 (230.4 kbit / s)
- IO-Link - Port Class: Type A.
- IO-Link - Cycle time: Min. 1 ms
- IO-Link - Data width: 6 bytes (1 x 4 bytes (input data) + 1 bytes (CO status) + 1 bytes
- Display elements – function: 1x LED green for operating mode or IO Link status (with option "CO")
- Housing – Material: Plastic
- Housing – Mounting: On 35 mm DIN rail
- Housing – Dimensions (W x H x D): 34 x 100 x 131 mm
- Housing (without connectors) – Weight: Approx. 160 g.
- Housing (without connectors) – Protection class: IP20
- Ambient conditions – altitude: Max. 2000 m above sea level
- Ambient conditions – humidity: Max. 80% relative humidity up to 30°C.
- Control inputs – (only with option "CO") Format: HTL, PNP (Low 0 … 3 V, High 9 … 30 V)
- Transmitter power supply – output voltage: 5 VDC and 24 VDC (approx. 1V lower than input voltage)
- Sensor supply – Output current: Max. 125 mA
- Encoder supply – IO Link master port: Min. 200 mA
- SSI interface - SSI input / output: TTL differential (RS422)
- SSI Interface - tracks: Clock, /Clock, Data, /Data
- SSI Interface - Master or slave configuration
- SSI Interface - Format: Binary or gray code
- SSI interface - Frequency range 100 kHz - 2 MHz (adjustable)
- SSI interface - resolution: 10 … 32 bits
- SSI interface – load: Ri = approx. 13 kOhm
- Control outputs (depending on "Sampling Time (s)" setting) – Transfer time (IO Link)): All approx. 1 ms - (IO Link cycle time)
- Type
7379.5023.CO
- Product type
Signal converter
- Input signal (current) (max.)
2 mA
- Input signal (voltage) (max.)
30 V
- Dim
(L x W x H) 140 x 34 x 109 mm
- Connection
Screw terminal
- Output (voltage)
5 - 30 V (je nach Spannung an Com+), PNP
- Output (current)
max. 100 mA je Ausgang (bei externer Com+ Versorgung!)
- Operating voltage
18 - 30 V DC
- Max. operating voltage
30 V DC
- Min. operating voltage
18 V DC
- Input signal (voltage)
Low 0 … 3 V. High 9 … 30 V
- Content
1 pc(s)
- Configuration
Software
- Width
34 mm
- Height
109 mm
- Length
140 mm
- Current consumption
75 mA
- Max. ambient temperature
60 °C
- Min. ambient temperature
-20 °C
- Supply voltage (num.)
24 V DC
- Operating voltage U(B)
12 ... 30 VDC
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3805213 Motrona 7379.5023.CO 7379.5023.CO Signal converter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3805213 Motrona 7379.5023.CO 7379.5023.CO Signal converter 1 pc(s)
Description
Signal converter with SSI input and IO-Link interface for single-turn and multi-turn encoders. The converter with option CO also has 3 control inputs and 2 control outputs. This IO-Link coupler enables the transmission of SSI signals to an IO-Link-based system. In addition, a USB-connection is available, through which the converted data can also be read. Device parameterization is straightforward – either via the USB interface or via IO-Link with common engineering tools.
This text is machine translated.
This text is machine translated.
Features
- 1 SSI input (10 … 32 bits) for single-turn and multi-turn encoders
- IO-Link interface
- 3x HTL PNP control inputs and 2x PNP control outputs
- Power supply 12 ... 30 VDC
- Compact case for mounting on 35 mm DIN rail
- (According to EN 60715)
Scope of delivery
- User manual
