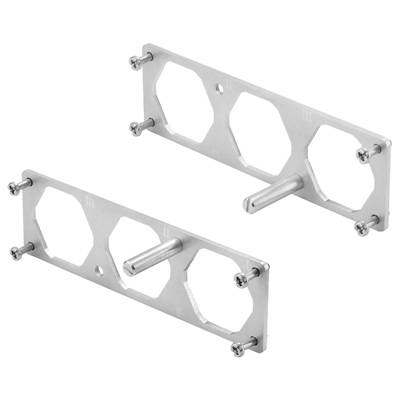

Mounting frame HDC 24B HP250 MPL3 TYP2 Weidmüller Content: 1 pc(s) Mounting frame
EAN:
Part number:
Item no:
Product type
Mounting frame
Number of pins
3
Type
HDC 24B HP250 MPL3 TYP2
Manufacturer part #
1103750000
Factory colour
Silver-grey
Datasheet (PDF)
Highlights & Details
Mounting frame
- HDC24B HP 250MPL 3 TYPE 2
Technical specifications
- Size: 8
- Mounting dimensions Width: 32 mm
- Mounting dimensions Height: 130 mm
- Width: 42 mm
- Height: 46 mm
- Length: 140 mm
- Type
HDC 24B HP250 MPL3 TYP2
- Product type
Mounting frame
- Manufacturer part #
1103750000
- Factory colour
Silver-grey
- Number of pins
3
- Total no. of pins
3
- Content
1 pc(s)
- Material
Stainless steel
- Suitable for
HighPower
- Max. temperature
+120 °C
- Height
46 mm
- Length
140 mm
- Width
42 mm
- Weight
95.9 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 200386 Mounting frame HDC 24B HP250 MPL3 TYP2 Weidmüller Content: 1 pc(s) Mounting frame
User & Safety Instructions
User & Safety Instructions 200386 Mounting frame HDC 24B HP250 MPL3 TYP2 Weidmüller Content: 1 pc(s) Mounting frame
Description
Mounting frame. HDC-use, number of poles: 3, size: 8. Heavy-duty connectors are used wherever a secure, simple, and time-saving assembly of machinery and equipment is required. The connector housing made of aluminum die-cast offers an excellent protection against dirt, moisture and mechanical load. Special modular connector allow the combination of signals, power supply, pneumatics and field bus connections in a single plug connector. Weidmüller offers with the new rock star ® heavy plug connectors a future-oriented assortment with many patented innovations. It presents itself as one of the biggest assortments worldwide. It convinces with stainless steel brackets on the standard housing and the unique easy push-in connection.
