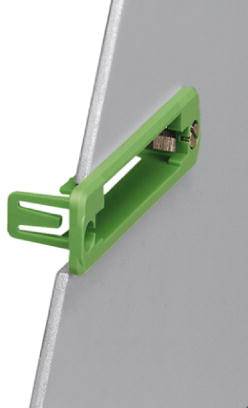

Mounting frame IC-DFR 9 1852095 Phoenix Contact Content: 50 pc(s)
EAN:
Part number:
Item no:
Product type
Add-on bracket
Manufacturer part #
1852095
Factory colour
Green
Content
50 pc(s)
max. cross section
2.5 mm²
Datasheet (PDF)

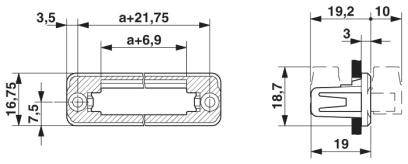

Technical specifications
- Width 69.39 mm
- Height: 16.75 mm
- Length: 19 mm
- Contact spacing: 5.08 mm
- Number of pins: 9
- Insulating material: PA
- Dimension a: 47.54 mm
- Product type
Add-on bracket
- Manufacturer part #
1852095
- Factory colour
Green
- Content
50 pc(s)
- max. cross section
2.5 mm²
- Type
IC-DFR 9
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2136558 Mounting frame IC-DFR 9 1852095 Phoenix Contact Content: 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2136558 Mounting frame IC-DFR 9 1852095 Phoenix Contact Content: 50 pc(s)
Description
Feed-THROUGH ASSEMBLY FRAME FOR INVERTED COMBICON-PLUG IC 2,5/-STGF-5,08. Cable connection on the inside of the device enables flexible positioning of the wall bushing. Mounting flanges reduce the mechanical stress on the solder joints. Can be combined with MSTB 2.5 family.
