Mounting socket USB-3.0 A/A F/F 180° PC with hinged lid USB-3.0 A/A F/F 180° PC 493112 Lütze Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Number of pins
8
USB type
A
Connector standard
USB 3.0 A socket
Type
USB-3.0 A/A F/F 180° PC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 30.24
3
4% = € 1.32
€ 28.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 30.24 / piece)
€ 30.24
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Type USB 3.0 port
- Style plug 1: USB 3.0 port type A
- Style plug 2: USB 3.0 port type A
- Insulation resistance 100 MΩ
- Constant resistance 30 mΩ
- Case material PC, ABS
- Mounting: Front mounting
- Installation depth: approx. 100 mm
- Dimensions (WxHxD) 31 x 49.5 x 44.5 mm
- Weight: 30 g
- Max. Power 4.5 W
- Operating voltage max. 30 V
- 5 Gbit/s transfer rate
- Packaging type
Piece
- Type
USB-3.0 A/A F/F 180° PC
- Number of pins
8
- USB type
A
- Connector standard
USB 3.0 A socket
- Connection
Socket
- Type A
USB 3.0 A socket
- Type B
USB 3.0 A socket
- Case material
PC
- Manufacturer part #
493112
- Factory colour
Black
- Content
1 pc(s)
- Contact material
CuSn, gold plated
- Material
PC
- Nominal voltage (details)
5 V
- Nominal current (details)
0.9 A
- Width
31 mm
- Length
49.5 mm
IP65
IP67
IP68
IP69
- Features
+ hinged cover
- Max. temperature
+70 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 3337958 Mounting socket USB-3.0 A/A F/F 180° PC with hinged lid USB-3.0 A/A F/F 180° PC 493112 Lütze Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3337958 Mounting socket USB-3.0 A/A F/F 180° PC with hinged lid USB-3.0 A/A F/F 180° PC 493112 Lütze Content: 1 pc(s)
Description

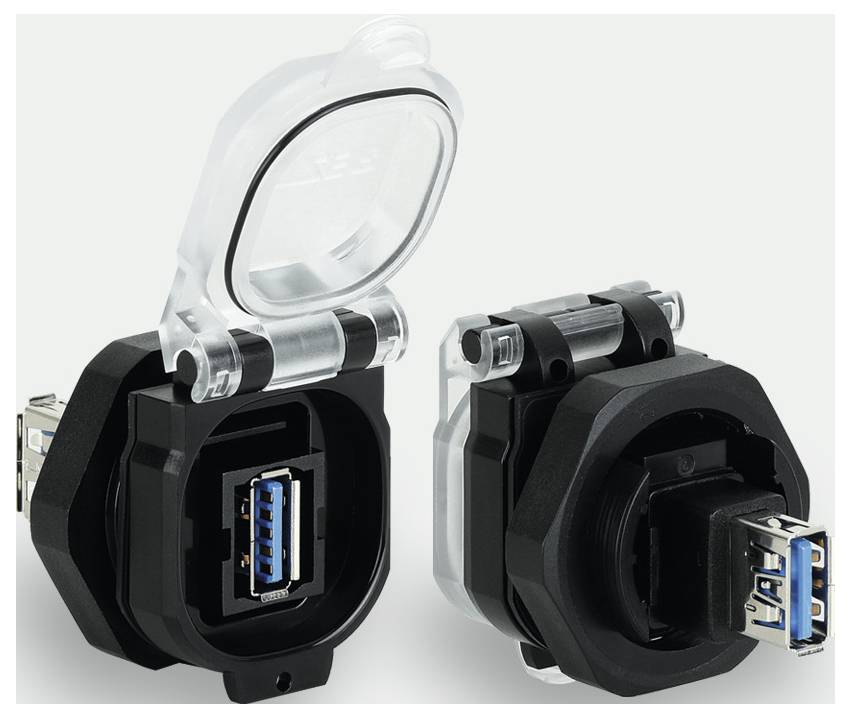

USB 3.0 panel-mounted socket for front mounting PG21, shielded, socket type A / socket type A / 180° / 1:1
This text is machine translated.
This text is machine translated.
Features
- Service interface for control cabinets and control panels
- Very compact and robust design
- Transparent hinged lid, locks in when opened
- High protection class IP69
- Straight plug connector 180°
- Installation depth about 100 mm
- Lead-sealable
- Identification by label is possible
