MPE Garry 001-4-028-6-B1STF-XT0 IC socket 1 pc(s)
Part number:
Item no:
Product type
IC socket

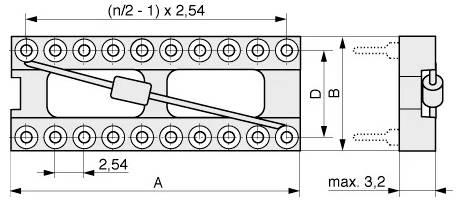

Length
35.5 mm
Width
17.7 mm
Height
3.2 mm
Dim
(L x W x H) 35.5 x 17.7 x 3.2 mm
Datasheet (PDF)
Highlights & Details
IC sockets with 100nF capacitor
Our service for you
Technical specifications
- Soldibility 260 °C / 10 s
- Pins 0.52 mm
- can be plugged with 0.4 mm
- Series distance 15.24 mm
- Breakdown voltage 1,000 V RMS / min.
- Product type
IC socket
- Length
35.5 mm
- Width
17.7 mm
- Height
3.2 mm
- Dim
(L x W x H) 35.5 x 17.7 x 3.2 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Nominal current
3 A
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
-55 °C
Documents & Downloads
Datasheet
Datasheet 3735435 MPE Garry 001-4-028-6-B1STF-XT0 IC socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3735435 MPE Garry 001-4-028-6-B1STF-XT0 IC socket 1 pc(s)
Description
Precision socket with integrated 100 nF capacitor for broadband decoupling up to 100 MHz
Up to twenty-fold reduction of impedance in comparison to conventional decoupling
Impedance in the frequency range up to 100MHz under 10W
This text is machine translated.
Up to twenty-fold reduction of impedance in comparison to conventional decoupling
Impedance in the frequency range up to 100MHz under 10W
