Name: MPE Garry 001-5-040-6-B1STF-XT0 IC socket 1 pc(s)
Brand: MPE Garry
SKU: 3735441

A grey rectangular integrated circuit socket with multiple pins protruding downward, designed for securely holding a dual inline package (DIP) chip.

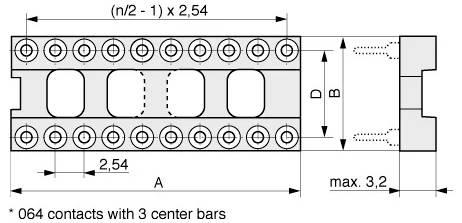

'Diagram of a contact component showing dimensions: (n/2 - 1) x 2.54, width A, heights B and D, and maximum height 3.2. Includes 064 contacts with 3 center bars.'

1/2

Product type

IC socket

Length

50.8 mm

Width

17.7 mm

Height

3.2 mm

Dim

(L x W x H) 50.8 x 17.7 x 3.2 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

IC precision sockets, tin/gold

Our service for you

Technical specifications

Soldibility 260 °C / 10 s
Pins 0.52 mm
can be plugged with 0.4 mm
Series distance 15.24 mm
Breakdown voltage 1,000 V RMS / min.

Product type: IC socket

Length: 50.8 mm

Width: 17.7 mm

Height: 3.2 mm

Dim: (L x W x H) 50.8 x 17.7 x 3.2 mm

RoHS-compliant: Yes

Content: 1 pc(s)

Nominal current: 3 A

Operating temperature (max.): 125 °C

Operating temperature (min.): -55 °C

Documents & Downloads

Datasheet

Datasheet 3735441 MPE Garry 001-5-040-6-B1STF-XT0 IC socket 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3735441 MPE Garry 001-5-040-6-B1STF-XT0 IC socket 1 pc(s)

Description

IC sockets, carrier, precision IC socket RM 2.54mm
Base with 2 middle classes
4 finger contact spring
Mounting caps without mounting help

This text is machine translated.

Description

IC sockets, carrier, precision IC socket RM 2.54mm
Base with 2 middle classes
4 finger contact spring
Mounting caps without mounting help

This text is machine translated.
