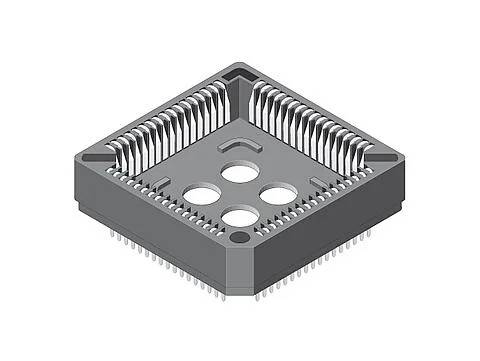

MPE Garry 081-1-068-0-XT0 PLCC socket 1 pc(s)
Part number:
Item no:
Product type
PLCC socket
Length
30.8 mm
Width
30.8 mm
Height
8.2 mm
Dim
(L x W x H) 30.8 x 30.8 x 8.2 mm
Datasheet (PDF)
Highlights & Details
PLCC sockets
Our service for you
Technical specifications
- Soldibility 260 °C / 10 s
- Breakdown voltage 600 V RMS / min.
- Product type
PLCC socket
- Length
30.8 mm
- Width
30.8 mm
- Height
8.2 mm
- Dim
(L x W x H) 30.8 x 30.8 x 8.2 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Nominal current
1 A
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3735533 MPE Garry 081-1-068-0-XT0 PLCC socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3735533 MPE Garry 081-1-068-0-XT0 PLCC socket 1 pc(s)
Description
PLCC base with solder pins and precision contacts (acc JEDEC MO-047/MO-052), which ensure a secure chip hold due to its special shape
