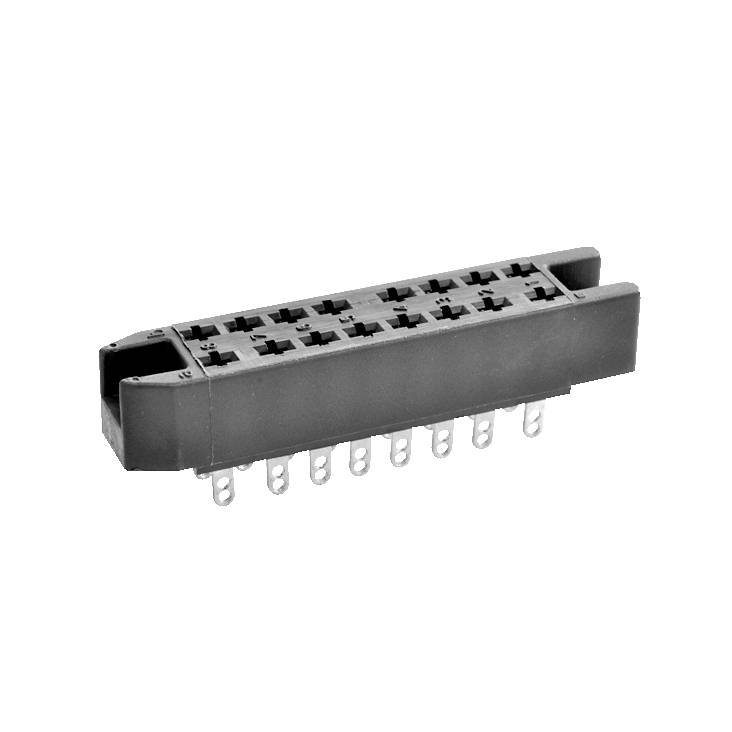

MPE Garry 369-1-012-0-NTX-KT0 Edge connector (sockets) 1 pc(s) Piece
Part number:
Item no:
Product type
Edge connector (sockets)
Connector type
Power strip
CS
1.27 mm
Content
1 pc(s)
Packaging type
Piece
Highlights & Details
MPE MicroParts, straight terminal block RM1.2
- Content 1 pc(s)
Our service for you
Technical specifications
- Height (incl. pins): 7.1 mm
- Soldibility 260 °C / 10 s
- Board thickness, min. 1.6 mm
- Breakdown voltage 500 V RMS / min.
- Packaging type
Piece
- Product type
Edge connector (sockets)
- Connector type
Power strip
- CS
1.27 mm
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Connection
Print
- Case material
PA
- Manufacturer part #
369-1-012-0-NTX-KT0
- Content
1 pc(s)
- Width
5.0 mm
- Height
4.0 mm
- Length
17.3 mm
- Type
369-1-012-0-NTX-KT0
- Dim
(L x W x H) 17.3 x 5.0 x 4.0 mm
- RoHS-compliant
Yes
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3735392 MPE Garry 369-1-012-0-NTX-KT0 Edge connector (sockets) 1 pc(s) Piece
Description
Socket strip micro match 1.27mm
For PCB mounting up to 1.6mm thick
