MPE Garry 383-1-020-SBN-ZS Edge connector (pins) 1 pc(s)
Part number:
Item no:
Product type
Edge connector (pins)
Content
1 pc(s)
Nominal current
10 A
Nominal current - rounded value
10 A
Case material
PA
Datasheet (PDF)
Highlights & Details

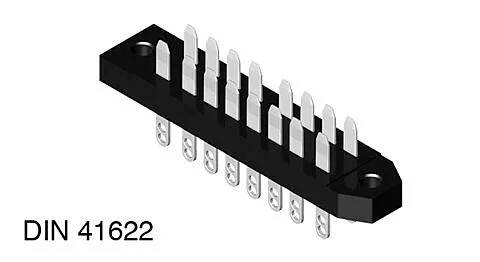

Terminal strips DIN41.622
- Content 1 pc(s)
Our service for you
Technical specifications
- Plug-in force per contact, min. 85 N
- Soldibility 230 °C / 5 s
- Product type
Edge connector (pins)
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Case material
PA
- Manufacturer part #
383-1-020-SBN-ZS
- Content
1 pc(s)

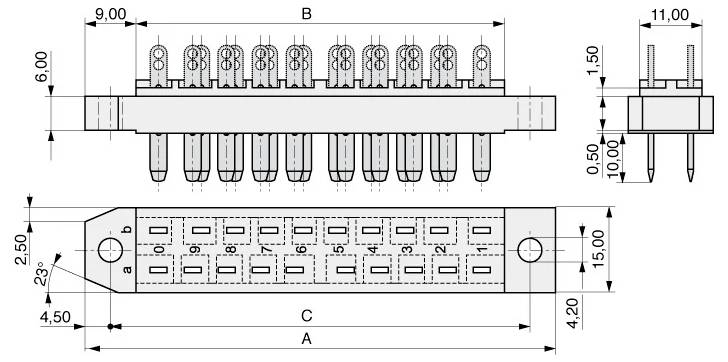

- Width
83.0 mm
- Height
27.0 mm
- Type
383-1-020-SBN-ZS
- Dim
(W x H x D) 83.0 x 27.0 x 15 mm
- RoHS-compliant
Yes
- Depth
15 mm
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-20 °C
Documents & Downloads
Datasheet
Datasheet 3735303 MPE Garry 383-1-020-SBN-ZS Edge connector (pins) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3735303 MPE Garry 383-1-020-SBN-ZS Edge connector (pins) 1 pc(s)
Description
Terminal strip V1 20-pin, 2-row, straight, with solder lugs
