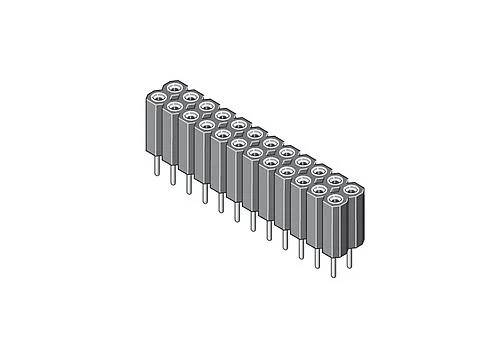

MPE Garry SIL socket (precision) 115-2-040-0-MTF-XS0 1 pc(s) Piece
Part number:
Item no:
Packaging type
Piece
Product type
SIL socket (precision)
Total number of pins
40
Connection
0.64 mm jack connector
Nominal current
3 A
Datasheet (PDF)
Highlights & Details
Precision socket strips H=6.9 mm straight
- Content 1 pc(s)
Our service for you
Technical specifications
- Soldibility 260 °C / 10 s
- can be plugged with 0.64 mm
- Dielectric strength 500 V RMS
- Packaging type
Piece
- Product type
SIL socket (precision)
- Total number of pins
40
- Connection
0.64 mm jack connector
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Gold plated
- Contact material
Beryllium / copper
- Pin Ø
0.64 mm

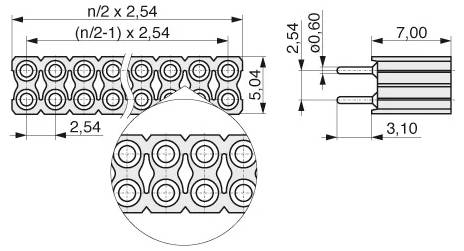

- Dim
(W x H x D) 50.8 x 10.1 x 5.04 mm
- Manufacturer part #
115-2-040-0-MTF-XS0
- Content
1 pc(s)
- Width
50.8 mm
- Height
10.1 mm
- RoHS-compliant
Yes
- Type
115-2-040-0-MTF-XS0
- Depth
5.04 mm
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
-55 °C
Documents & Downloads
Datasheet
Datasheet 3735388 MPE Garry SIL socket (precision) 115-2-040-0-MTF-XS0 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3735388 MPE Garry SIL socket (precision) 115-2-040-0-MTF-XS0 1 pc(s) Piece
Description
Precision socket connector
With 6 finger clip made from beryllium-copper
gold-plated
This text is machine translated.
With 6 finger clip made from beryllium-copper
gold-plated
