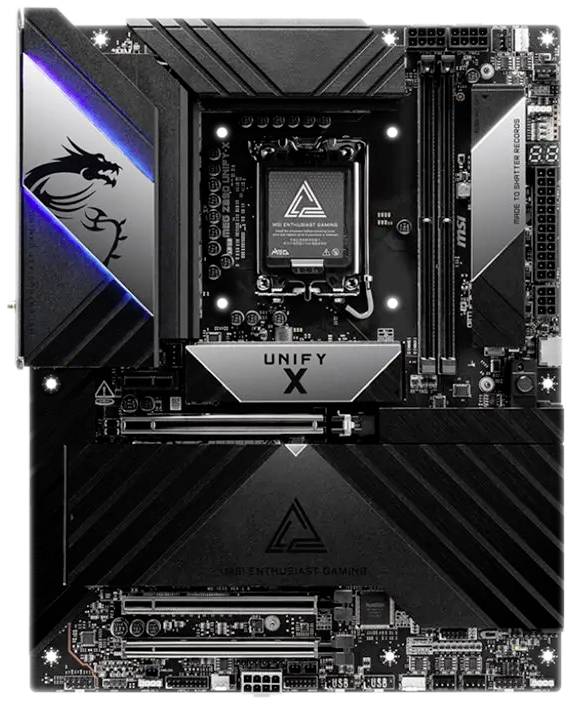

MSI 7E20-001R Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® Z890
EAN:
Part number:
Item no:
Technical specifications
- Depth: 24.4 cm
- MODEL MEG Z890 UNIFY-X
- Video output type: Graphics adapter (CPU required)
- LAN:5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
- Audio: HD Audio (8-channel)
- USB/FireWire connections 2 x USB4 + 2 x USB-C 3.2 Gen 2 + 8 USB 3.2 Gen 2 + (1 x USB-C 3.2 2x 2nd Gen + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via an internal pin strip)
- Storage interfaces 6 x SATA-600 (RAID), 6 x M.2
- Supported RAM: 2 DIMM slots - DDR5, non-ECC, unbuffered
- Max. RAM size 128 GB
- Compatible processors: (Supports Intel core ultra processors (2 series)
- Processor base: LGA1851 socket
- Intel Z890 chipset
- Width 30.5 cm
- Audio output type: Sound card
- Formfactor: ATX
- Supported RAM speeds: 4800 MHz (O.C.), 3600 MHz, 2400 MHz, 3200 MHz (O.C.)
- Supported RAM Health Check: Non-ECC
- Supported RAM technology: DDR5 SDRAM
- Supported RAM memory (registered or buffered): Unbuffered
- Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11a, IEEE 802.11g, 5 Gigabit Ethernet
- Max. Supported number: 1
- Max. Supported size: 128 GB
- Serial ATA-600 (RAID) memory, M.2 socket
- USB 3.2 2 1st Gen, USB 3.2 2nd Gen, USB-C 1 3.2 2nd Gen, USB-C 3.2 2x 2nd Gen
- Product type: Motherboard
- Product type
Motherboard
- Chipset
Intel® Z890
#####Intel® 1851
- Form factor
ATX
- RAM type
DDR5 RAM
- RAM / Max. upgrade
128 GB
- Interfaces
Wi-Fi 7 (IEEE 802.11be)
M.2
- No. of DDR5 slots
2 x
- No. of Gigabit LANs
1 x
- No. of USB 3.2
8 x
- No. of USB 3.0 ports
2 x
- No. of SATA III ports
6 x
- Factory colour
Multicolour
- Depth
24.4 cm
- Width
30.5 cm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3348345 MSI 7E20-001R Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® Z890
Description
The MSI MEG Z890 UNIFY-X motherboard has been developed for gamers and PC enthusiasts and provides a robust foundation for high-performance systems. It supports Intel core ultra processors with a Intel Z890 chipset, thus ensuring compatibility with the advances in computer technology. This motherboard has an ATX form factor with a Dual channel memory architecture that supports DDR5 SDRAM speeds of up to 4800 MHz with overclocking and offers the user optimum performance in demanding applications.The MEG Z890 UNIFY-X is equipped with six SATA-600 ports and a versatile M.2 socket for fast storage solutions. High-definition audio is provided via the Realtek ALC4080 codec and provides an impressive audio experience. The network capabilities are extensive and offer 5 gigabit Ethernet and Wi-Fi 7 support for seamless online gaming and streaming as well as Bluetooth 5.4 for improved device connectivity. Combined with innovative cooling technologies and built-in functions such as MSI Mystic Light and EZ Debug LED, this motherboard is suitable for modern users looking for performance, aesthetics and reliability.
Contains Wi-Fi 7 support and 5 Gigabit Ethernet for high speed networks
High-resolution audio via Realtek ALC4080 Codec
Extensive connectivity with six SATA 600 ports and multiple M.2 sockets
Dual channel memory architecture with DDR5 SDRAM up to 4800 MHz
Supports Intel core ultra processors with Intel Z890 chipset
Increased user comfort
Thanks to the pre-mounted I/O shield and the EZ M.2 Clip II, installation and setup are possible without any problem for builders of all levels of experience.
Improved storage management
The MSI memory-boost technology improves the memory performance and stability, especially in high-speed DDR5 modules.
Versatile expansion options
With five expansion slots, including PCIe 4.0 support, users have the flexibility to upgrade hardware in the future, be it for graphics cards or other add-ons.
Advanced cooling solutions
Equipped with Frozr AI cooling and an enlarged chipset heat sink, this motherboard optimizes thermal performance and allows permanent operation even in intensive tasks.
Robust power supply concept
The MEG Z890 UNIFY-X features a 20+2+1+1 phase power supply design that ensures stable power supply for improved performance under load.
This text is machine translated.
Contains Wi-Fi 7 support and 5 Gigabit Ethernet for high speed networks
High-resolution audio via Realtek ALC4080 Codec
Extensive connectivity with six SATA 600 ports and multiple M.2 sockets
Dual channel memory architecture with DDR5 SDRAM up to 4800 MHz
Supports Intel core ultra processors with Intel Z890 chipset
Increased user comfort
Thanks to the pre-mounted I/O shield and the EZ M.2 Clip II, installation and setup are possible without any problem for builders of all levels of experience.
Improved storage management
The MSI memory-boost technology improves the memory performance and stability, especially in high-speed DDR5 modules.
Versatile expansion options
With five expansion slots, including PCIe 4.0 support, users have the flexibility to upgrade hardware in the future, be it for graphics cards or other add-ons.
Advanced cooling solutions
Equipped with Frozr AI cooling and an enlarged chipset heat sink, this motherboard optimizes thermal performance and allows permanent operation even in intensive tasks.
Robust power supply concept
The MEG Z890 UNIFY-X features a 20+2+1+1 phase power supply design that ensures stable power supply for improved performance under load.
This text is machine translated.
