MSI 7E64-001R Motherboard PC base #####Intel® 1851 Form factor (details) Micro-ATX Motherboard chipset Intel® H810
EAN:
Part number:
Item no:

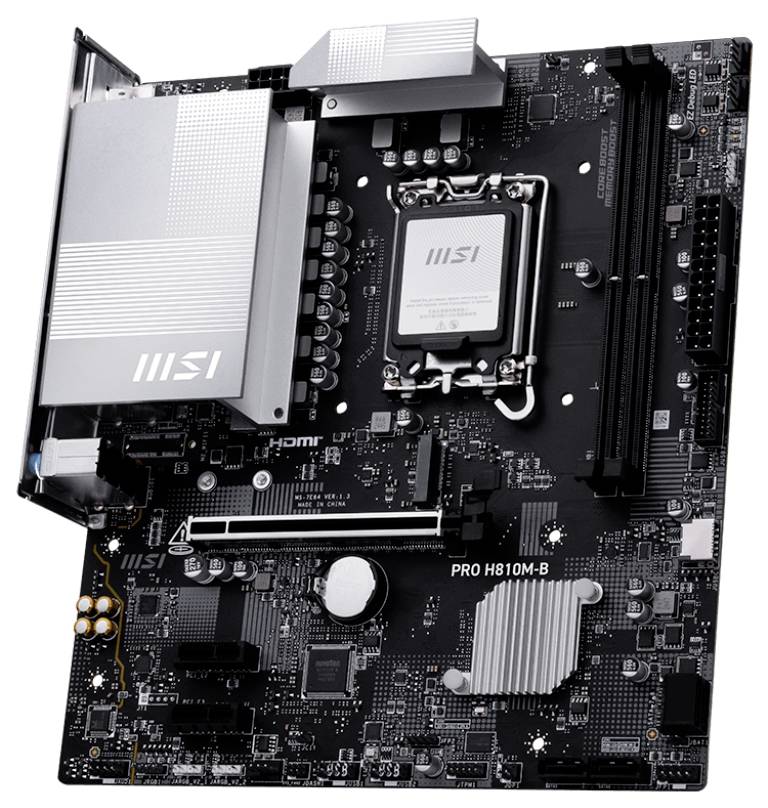

MSI 7E64-001R Motherboard
Technical specifications
- LAN: Realtek® 8125 2.5 Gbps LAN
- Audio: Realtek® ALC897 Codec; 7.1-Channel High Definition Audio
- USB: 4x USB 2.0 (rear); 4x USB 2.0 (front); 2x USB 5 Gbps Type A (rear); 2x USB 5 Gbps Type A (front); 1x USB 10 Gbps Type C (front)
- Internal IO: 1x Power connector (ATX_PWR); 1x Power connector (CPU_PWR); 1x CPU fan; 2x system fan; 2x front panel (JFP); 1x chassis intrusion (JCI); 1x front audio (JAUD); 1x tuning controller connector (JDASH); 3x addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector (JRGB); 1x TPM support 2.0-pin 4x USB 2.0 ports; 2x USB 5Gbps type A ports; 1x USB 10Gbps type C ports
- Operating System: Support for Windows® 11 64-bit
- Product type
Motherboard
- Chipset
Intel® H810
#####Intel® 1851
- Form factor
Micro-ATX
- Processor/type
Intel® Core™ Ultra Processors (Series 2)
- RAM type
DDR5 RAM
- RAM / Max. upgrade
128 GB
- Interfaces
HDMI™
DisplayPort
USB C®
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
RJ45
- No. of DDR5 slots
2 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x1
2 x
- No. of USB 2.0 ports
12 x
- No. of USB 3.2
6 x
- No. of USB 3.0 ports
2 x
- No. of SATA III ports
4 x
- Onboard audio
7.1 HD
- Factory colour
Multicolour
- Depth
300 mm
- Height
100 mm
- Width
300 mm
- UKCA
yes
