MSI 7E71-001R Motherboard PC base #####AMD AM5 Form factor (details) Micro-ATX Motherboard chipset AMD® B850
EAN:
Part number:
Item no:

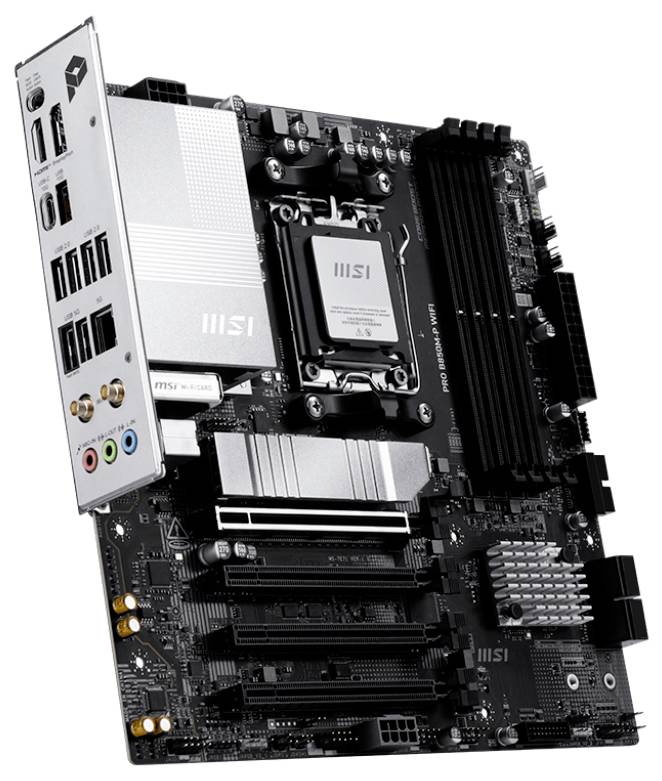

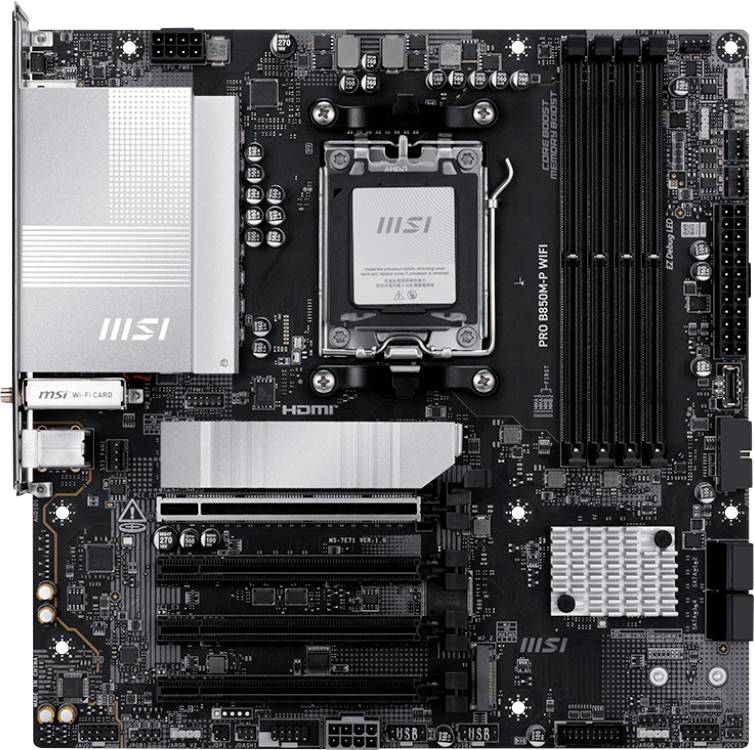

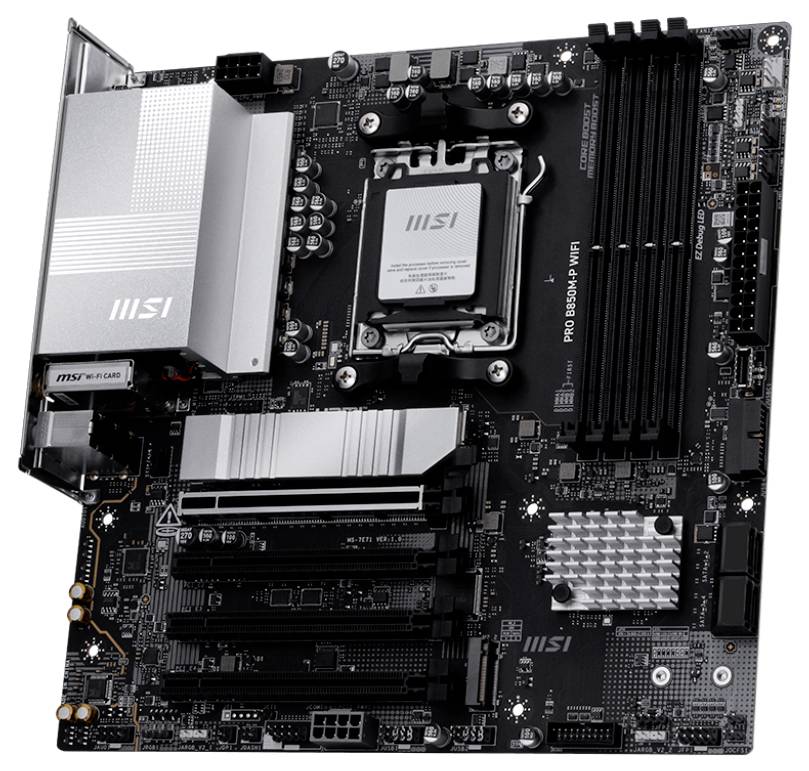

MSI 7E71-001R Motherboard
Technical specifications
- LAN: Realtek® 8126VB 5G LAN
- Audio: Realtek® ALC897; 7.1-Channel High Definition Audio
- USB: 4x USB 2.0 (rear); 4x USB 2.0 (front); 2x USB 5Gbps type A (rear); 4x USB 5Gbps type A (front); 1x USB 10Gbps type A (rear); 1x USB 10Gbps type C (rear); 1x USB 10Gbps type C (front)
- Internal IO: 1x Power connector (ATX_PWR); 1x Power connector (CPU_PWR); 1x Power connector (PCIE_PWR 8-pin); 1x CPU fan; 1x combo fan (pump_sys fan); 3x system fan; 2x front panel (JFP); 1x chassis intrusion (JCI); 1x front audio (JCOM); 1x tuning controller connector (JDASH V2); 3x RGB Addresseable LED 1x RGB LED connector (JRGB); 1x TPM pin header (support TPM 2.0); 4x USB 2.0 ports; 4x USB 5Gbps type A ports; 1x USB 10Gbps type C ports
- Operating System: Support for Windows® 11 64-bit
- Product type
Motherboard
- Chipset
AMD® B850
#####AMD AM5
- Form factor
Micro-ATX
- Processor/type
AMD Ryzen™ 9000/ 8000/ 7000 Series
- RAM type
DDR5 RAM
- RAM / Max. upgrade
256 GB

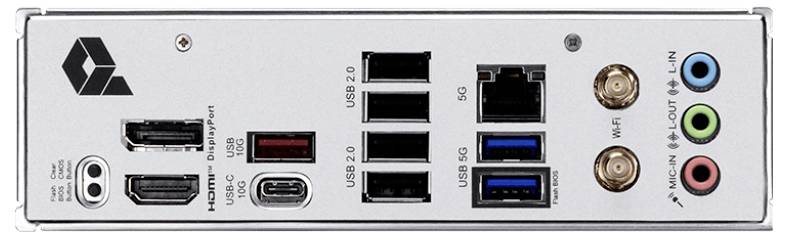

- Interfaces
HDMI™
DisplayPort
USB C®
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
RJ45
Wi-Fi 7 (IEEE 802.11be)
Bluetooth
- No. of DDR5 slots
4 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x1
3 x
- No. of USB 2.0 ports
12 x
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- No. of USB 3.2
10 x
- No. of USB 3.0 ports
3 x
- No. of SATA III ports
4 x
- Onboard audio
7.1 HD
- Depth
300 mm
- Height
100 mm
- Width
300 mm
- UKCA
yes
