MSI 80I Z890 Gaming Wifi Motherboard Form factor (details) ATX
EAN:
Part number:
Item no:
Highlights & Details

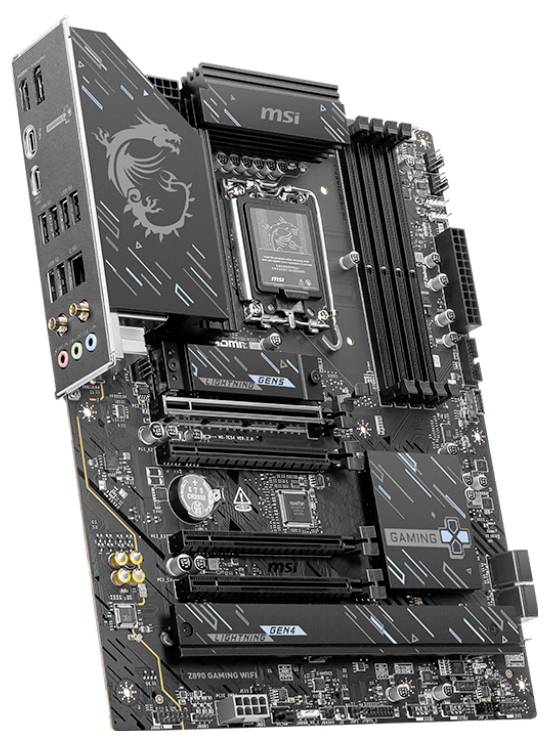

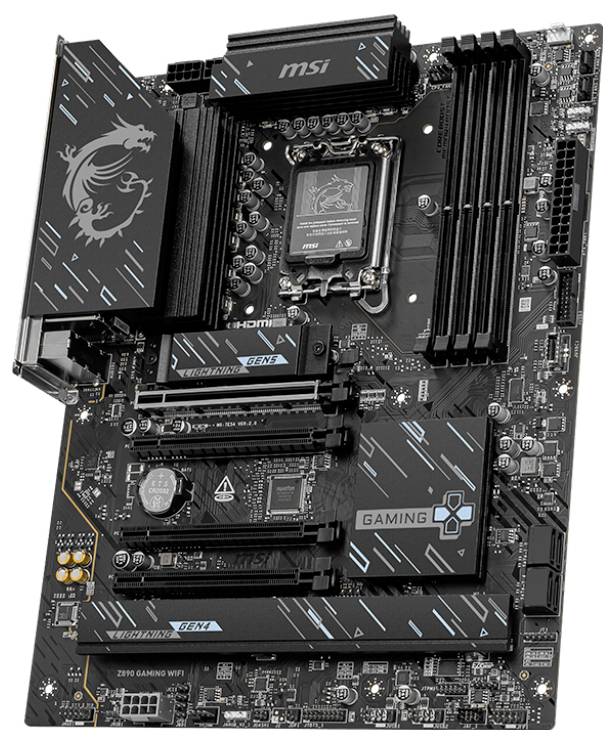

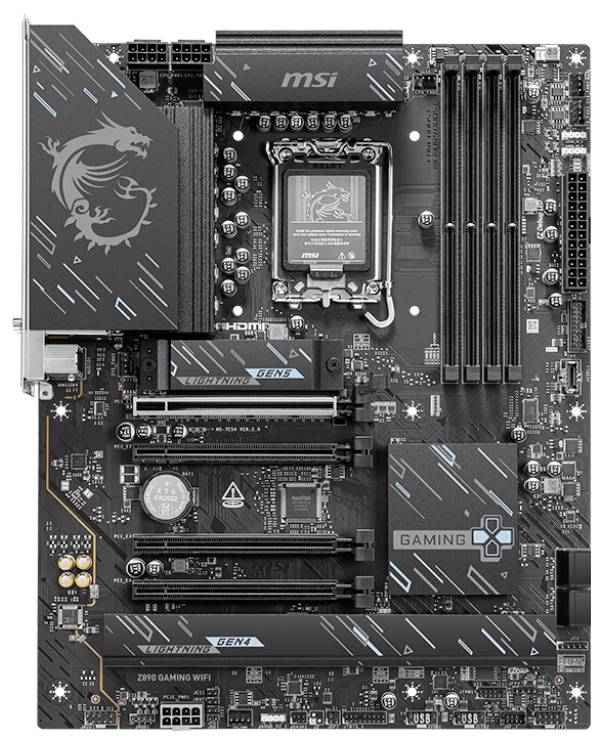

MSI 80I Z890 Gaming Wifi Motherboard
- Intel LGA 1851 (socket V1) Intel core ultra (series 2)
- PC ATX Intel Z890 Realtek ALC897 7.1 channels
- DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 4
- BIOS Type: UEFI AMI 256 Mbit ACPI Version: 6.5
- 2.5 Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4
Technical specifications
- LGA 1851 (socket V1)
- Supported processor slots: LGA 1851
- Supported memory: DDR5 SDRAM
- HDMI version 2.1
- WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
- Intel Z890 motherboard chipset
- Product type
Motherboard
- Form factor
ATX
- RAM type
DIMM
- RAM / Max. upgrade
256 GB
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
4 x
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- No. of SATA III ports
4 x
- Bluetooth
5.4
- Bluetooth
Yes
- Factory colour
Black
- Depth
304.8 mm
- Width
243.8 mm
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
6 x
- Onboard graphics card
No
- 10/100/1000 Mbps ports
1 x
- Range of use
PC
- Wi-Fi
Yes
- UKCA
yes
- BIOS memory size
256 Mbit
- Ethernet LAN
yes
- Number of memory slots
4
- Number of M.2 (M) slots
3
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
- Total number of SATA connectors
4
- ATX Power connector (24-pin)
yes
- Number of HDDs supported
7
- PCI Express x1 (Gen 4.x) slots
1
- PCI Express x4 (Gen 4.x) slots
2
- Supported memory clock speed (max)
8800 MHz
1
- EPS power connector (8-pin)
yes
- RAID support
yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
- Thunderbolt ports quantity
1
- Number of storage drives supported
4
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3618919 MSI 80I Z890 Gaming Wifi Motherboard Form factor (details) ATX
Description
The MSI Z890 GAMING Wi-Fi motherboard offers an extensive range of functions and is suitable for Ideal high-performance gaming and productivity setups. This motherboard is based on the Intel Z890 chipset and the LGA1851 socket, supports Intel core ultra processors and offers a Dual channel memory architecture with support for DDR5 SDRAM at speeds of up to 8800 MT/s. The versatile expansion options include multiple PCIe slots that can accommodate both high-performance graphics cards and storage devices, providing flexibility for upgrades.

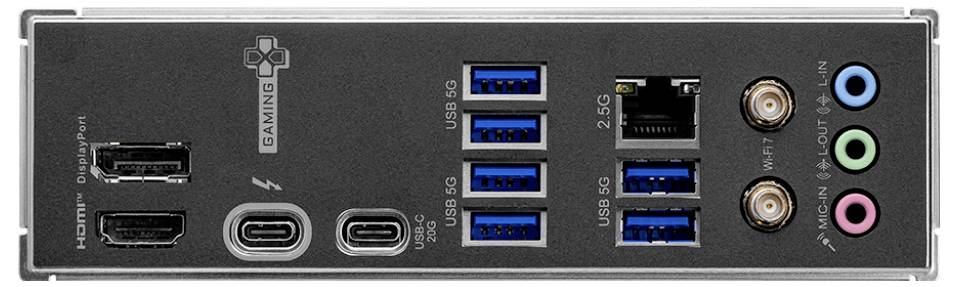

Equipped with advanced connectivity options, the Z890 GAMING WIFI has USB-C 3.2 2x 2nd Gen, Thunderbolt 4 and 2.5 Gigabit Ethernet for fast data transfer and network performance. The built-in Realtek ALC897 sound card delivers high-definition audio over eight channels for an amazing sound experience. In order to keep the components cool, the motherboard has MSI's Frozr AI cooling technology as well as an advanced heat sink design, so that users can stretch their hardware to the limit without overheating.
