MSI A520M PRO Motherboard PC base AMD AM4 Form factor (details) Micro-ATX Motherboard chipset AMD® A520
EAN:
Part number:
Item no:

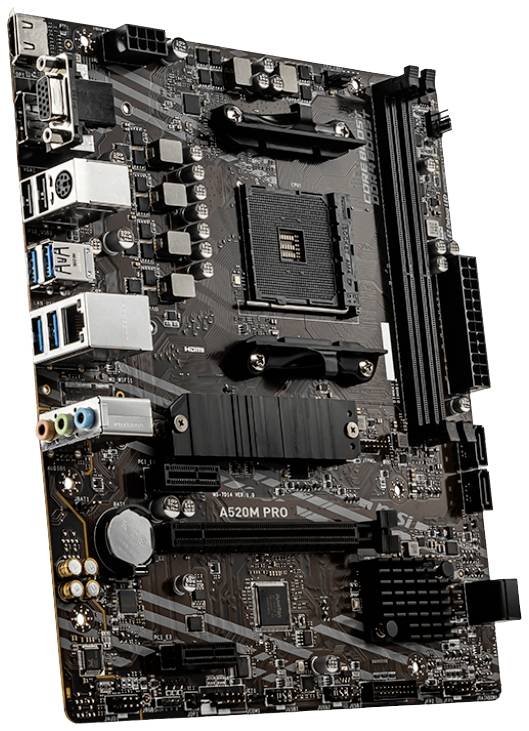

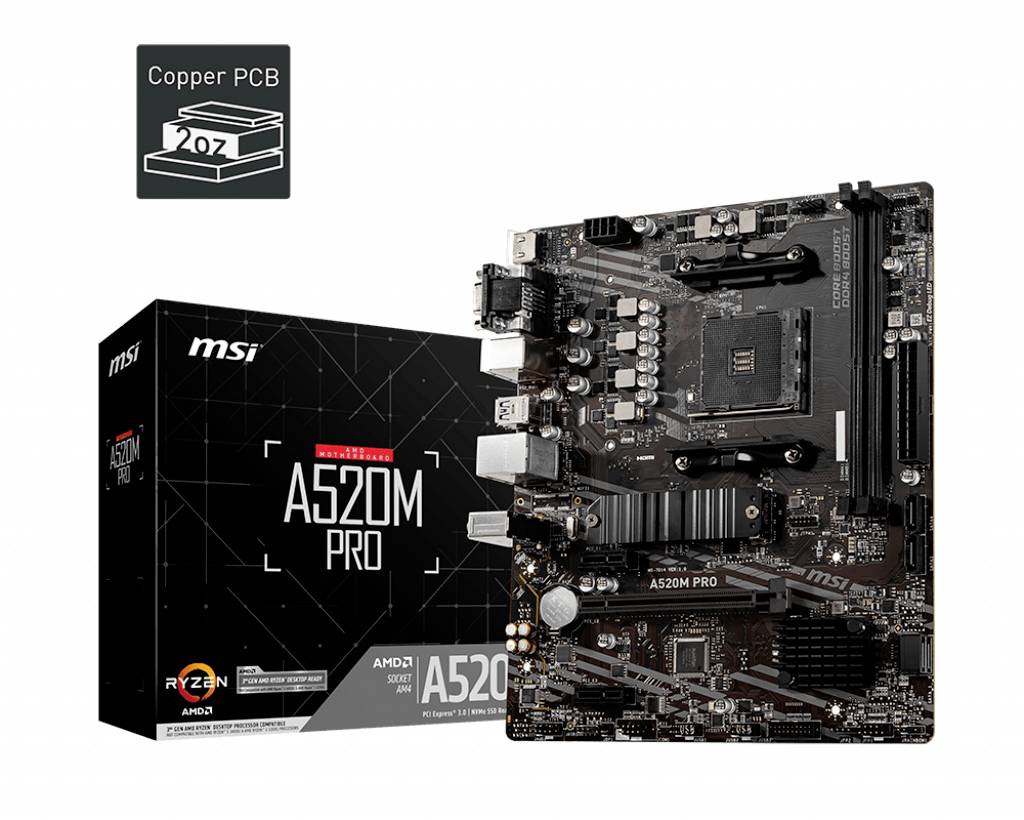

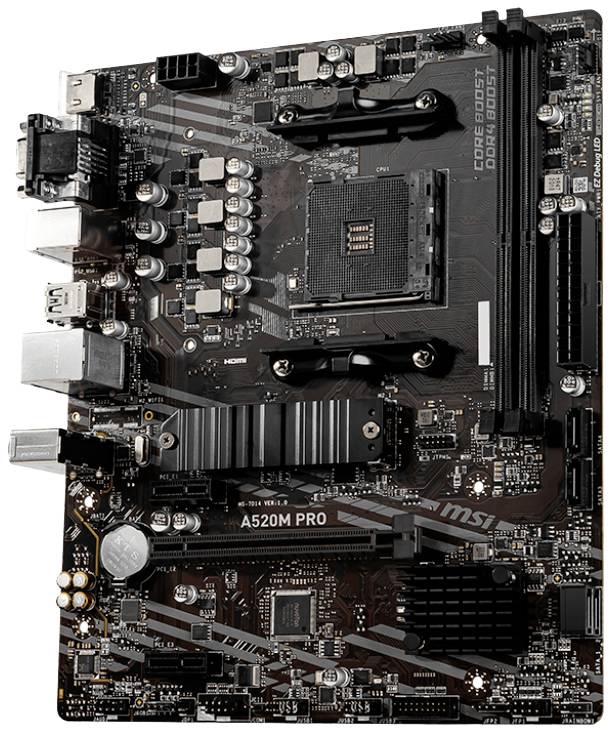

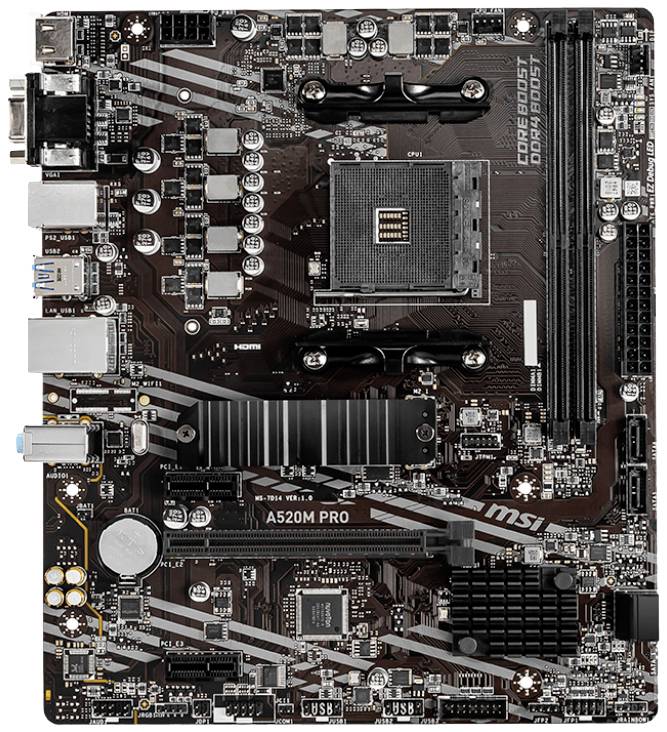

MSI A520M PRO Motherboard
Highlights & Details
- AMD processors for socket AM4
- AMD Ryzen™ 3/4/5 processors. Generation
- 2x DDR4 DIMM slots up to 4600 (O.C.) MHz/max. 64 GB
- Internal connections 4x SATA III, 1x M.2

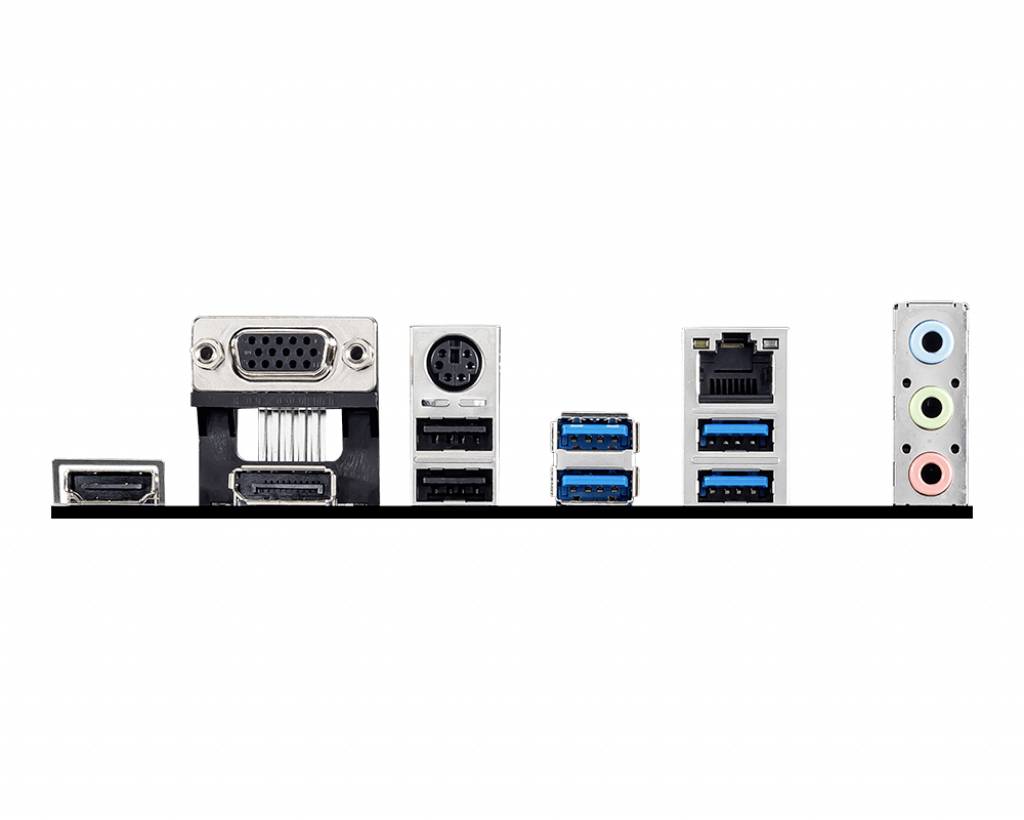

- I/O Panel:VGA, HDMI, DisplayPort, 4x USB 3.0, 2x USB 2.0, RJ45, PS/2
- This text is machine translated.
Technical specifications
- Product type
Motherboard
- Chipset
AMD® A520
AMD AM4
- Form factor
Micro-ATX
- RAM type
DDR4 RAM
- Clock speed
4600 MHz
- RAM / Max. upgrade
64 GB
- Interfaces
VGA
HDMI™
DisplayPort
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
RJ45
Audio stereo (3.5 mm jack)
PS/2
- No. of DDR4 slots
2 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x1
2 x
- No. of USB 2.0 ports
2 x
- No. of USB type A 3.0 ports
4 x
- No. of SATA III ports
4 x
- Onboard audio
7.1
- No. of PS/2 ports
1 x
- Depth
210 mm
- Height
65 mm
- Width
244 mm
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of VGA ports
1 x
- Range of use
PC
- Weight
698 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2851101 MSI A520M PRO Motherboard PC base AMD AM4 Form factor (details) Micro-ATX Motherboard chipset AMD® A520
Description
Features
- Processor manufacturer: AMD
- Socket AM4
- Compatible processors:
- - 3rd generation AMD Ryzen™ 3
- - 3rd generation AMD Ryzen 5
- - 3rd generation AMD Ryzen™ 7
- Supported memory: DDR4 SDRAM
- RAM maximum: 64 GB
- RAM type DIMM
- Supported drive interfaces: PCI Express 3.0, SATA
- Supported drives: HDD & SSD
- RAID levels 0, 1, 10
- Maximum resolution 4096 x 2160 pixel
- Ethernet interfaces, type Gigabit Ethernet
- Realtek 8111H LAN controller
