MSI B760 Motherboard PC base #####Intel® 1700 Form factor (details) ATX Motherboard chipset Intel® B760
EAN:
Part number:
Item no:
Highlights & Details

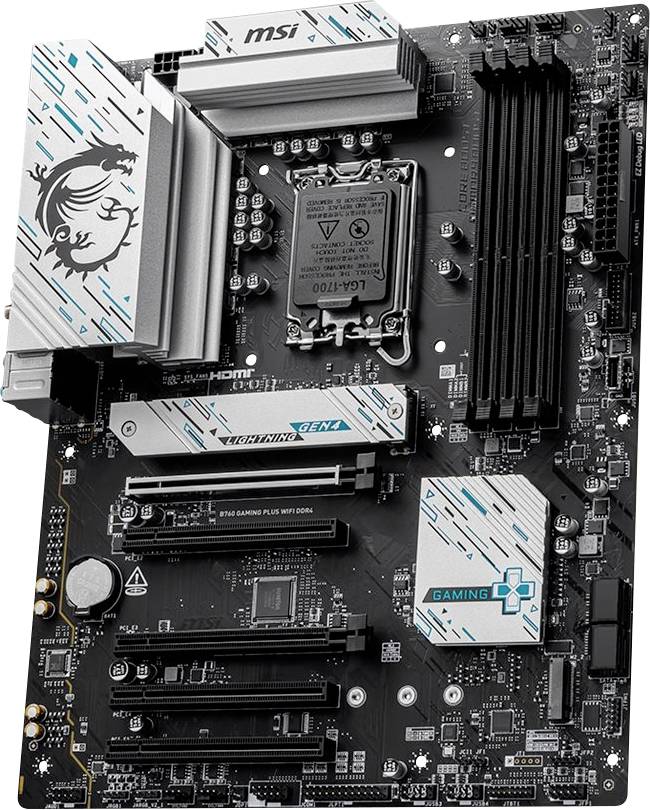

MSI B760 Motherboard
- Intel LGA 1700 Intel® Celeron®, Intel® Pentium® Gold
- PC ATX Intel B760 Realtek ALC897 7.1 channels
- DDR4 SDRAM 4 DIMM No ECC RAM maximum: 128 GB
- M.2, SATA RAID support Number of supported storage drives: 6
- BIOS Type: UEFI AMI 256 Mbit ACPI Version: 6.4
- 2.5 Gigabit Ethernet WLAN Wi-Fi 6 (802.11ax) Bluetooth 5.3
- This text is machine translated.
Technical specifications
- LGA 1700 processor socket
- Supported processor slots: LGA 1700
- ECC compatibility: Non-ECC
- HDMI version 2.1
- WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
- Intel B760 motherboard chipset
- Product type
Motherboard
- Chipset
Intel® B760
#####Intel® 1700
- Form factor
ATX
- RAM type
DDR4 SDRAM
- RAM / Max. upgrade
128 GB
- Interfaces
USB A (USB 2.0)
USB A (USB 3.2 2nd gen)
USB C®
Gigabit LAN (1 Gbps)
HDMI™
DisplayPort
- No. of PCIe 3.0 x16
2 x
- No. of PCIe x16
2 x
- No. of PCIe x1
3 x
- No. of USB 2.0 ports
4 x
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- No. of SATA III ports
4 x
- Bluetooth
5.3
- Bluetooth
Yes
- Depth
304.8 mm
- Height
100 mm
- Width
243.8 mm
- No. of 10 Gb LAN ports
1 x
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of USB ports
4 x
- No. of memory slots
4
- No. of USB A 2.0 ports
4 x
- No of. USB type A 3.1 /3.2 2nd gen
2 x
- Mobile internet
WiFi
- No. of HDMI connections
1
- 10/100/1000 Mbps ports
1 x
- Range of use
PC
- Wi-Fi
built-in
- Wi-Fi
Yes
- UKCA
yes
