MSI B760M PROJECT ZERO Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel® B760
EAN:
Part number:
Item no:

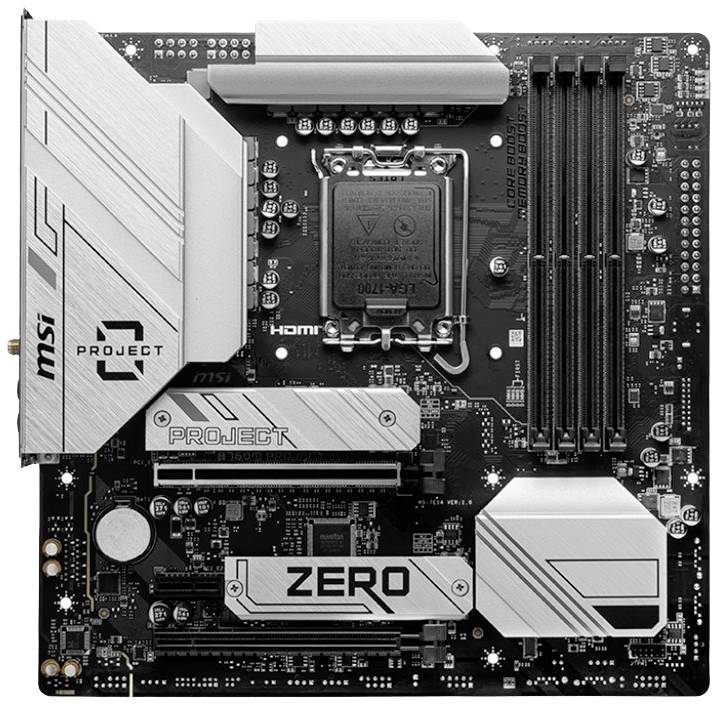

MSI B760M PROJECT ZERO Motherboard
Technical specifications
- Supported RAM Health Check: Non-ECC
- RAM - Registered or buffered: Unbuffered
- RAM features: Two-channel memory architecture, Intel extreme memory profiles (XMP)
- Audio type: HD audio (8-channel)
- Audio Codec: Realtek ALC897
- Audio-compatibility: High-definition audio
- Network interfaces: 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
- Expansion slots: 1 x CPU; 4 x DIMM 288-pin; 1 x PCIe 5.0 x16; 1 x PCIe 3.0 x1; 1 x PCIe 4.0 x16 (x4 mode); 2 x M.2 slot (2242/2260/2280 M.2 slot with key M)
- Memory interfaces: SATA-600 ports: 4 x 7-pin serial ATA- RAID 0 / RAID 1 / RAID 10 / RAID 5; PCIe 4.0 ports 1 x M.2; SATA-600 / PCIe 4.0 ports: 1 x M.2
- External interfaces: 1 x HDMI; 1 x DisplayPort; 4 x USB 2.0; 1 x USB-C 3.2 Gen2; 3 x USB 3.2 Gen 2; 1 x LAN (2.5Gigabit Ethernet); 2 x antenna; 1 x audio line out – mini jack plug; 1 x microphone – mini jack plug; 1 x audio line-out (center/subwoofer) – mini jack plug; 1 x audio line-out (rear) – mini jack plug; 1 x audio line-in – mini jack plug; 1 x SPDIF output
- Internal interfaces: 4 x USB 2.0 - multi-pin connector; 1 x USB 3.2 Gen 1 - multi-pin connector; 2 x USB-C 3.2 Gen 2 - multi-pin connector; 1 x audio - multi-pin connector; 1 x SPI - multi-pin connector; 1 x Thunderbolt - multi-pin connector
- Power connections: Main power connection, 24-pin, 2 x 8-pin ATX12V connections
- BIOS Features: M-FLASH, MSI ClickBIOS 5
- Hardware features: MSI audio boost, over-current protection, 6 layers PCB, MSI Mystic Light, 2oz copper PCB, M.2 Shield FROZR, water pump header, pre-assembled I/O shield, MSI core boost, extended heat sink design, DIY Friendly Design, Surface Mount Technology (SMT), MSI Memory Boost, EZ Debug LED
- Product type
Motherboard
- Chipset
Intel® B760
Intel® 1700
- Form factor
Micro-ATX
- Processor/type
unterstützt Intel Core / Pentium Gold / Celeron der 12., 13. und 14. Generation
- RAM type
DDR5 RAM
- Clock speed
5800 MHz
6000 MHz
4800 MHz
6200 MHz
6400 MHz
6600 MHz
7000 MHz
6800 MHz
7200 MHz
5200 MHz
Show more
- RAM / Max. upgrade
256 GB
- Interfaces
HDMI™
DisplayPort
USB A (USB 2.0)
USB C® (USB 3.2 2x 2nd gen)
USB A (USB 3.2 2nd gen)
Gigabit LAN (1/2.5 Gbps)
Audio line in
Audio line out
Microphone (3.5 mm jack)
S/PDIF
Show more
- No. of DDR5 slots
4 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x1
1 x
- No. of USB 2.0 ports
8 x
- No. of USB 3.2 2nd Gen (USB 3.1)
3 x
- No. of USB 3.2
2 x
- No. of USB 3.0 ports
3 x
- Factory colour
Multicolour
- Depth
300 mm
- Height
100 mm
- Width
300 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3045593 MSI B760M PROJECT ZERO Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel® B760
Description
Scope of delivery
- WLAN-antenna
- M.2 screws/spacer sets
- Cable sticker
- EZ M.2 clip
- 1 x Serial ATA cable
- This text is machine translated.
