MSI B850 Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B850
EAN:
Part number:
Item no:

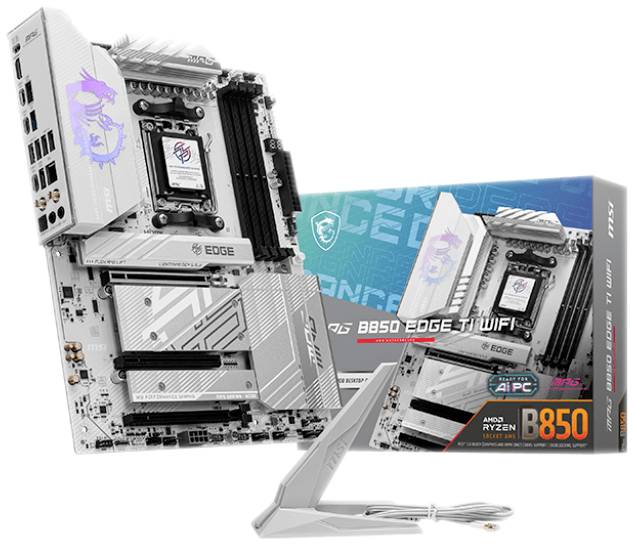

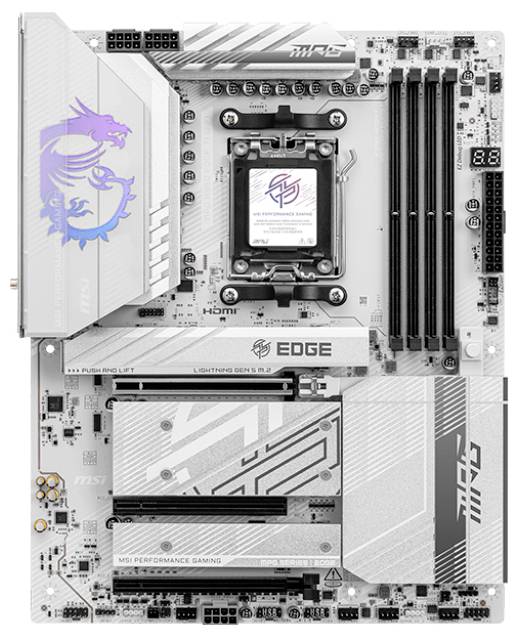

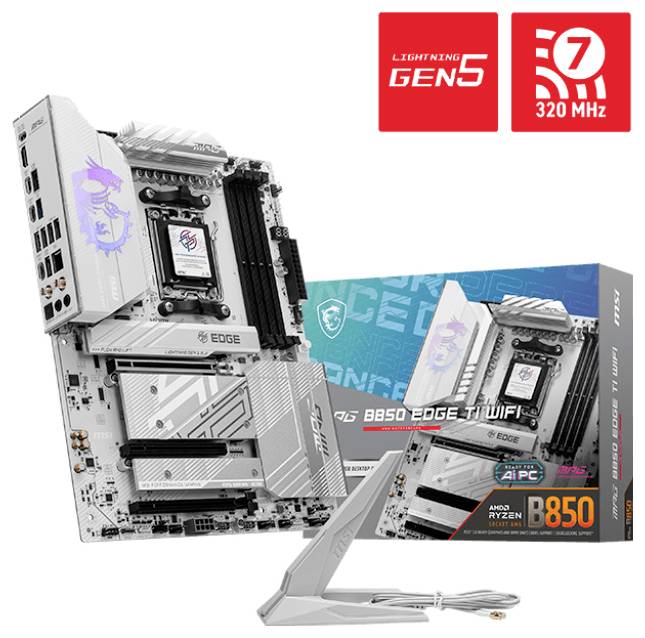

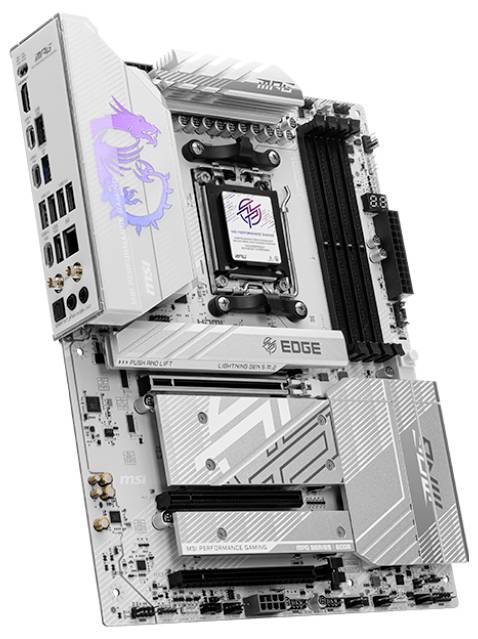

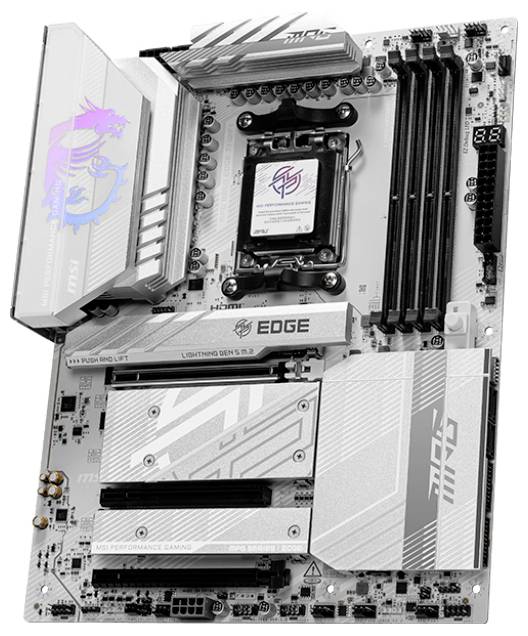

MSI B850 Motherboard
Highlights & Details
- AMD socket AM5 AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
- PC ATX AMD B850 Realtek ALC4080 7.1 channels
- DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
- HDD & SSD M.2, Micro SATA III RAID-support Number of supported storage drives: 8
- 2.5 Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4
- This text is machine translated.
Technical specifications
- Socket AM5
- Supported processor slots: Socket AM5
- C-Ko compatibility: Non-ECC
- Number of CPU fan ports: 6
- Number of water pump connections: 1
- Number of GB LED pin strips: 3
- HDMI version 2.1
- WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
- AMD B850 motherboard chipset
- 1. M.2 Largest key size: 22110
- 1. M.2 highest PCI Express generation: 5.0
- 2. M.2 Largest key size: 2280
- 2. M.2 highest PCI Express generation: 5.0
- 3. M.2 Largest key size: 2280
- 3. M.2 highest PCI Express generation: 4.0
- 4. M.2 Largest key size: 2280
- 4. M.2 highest PCI Express generation: 4.0
- Product type
Motherboard
- Chipset
AMD® B850
#####AMD AM5
- Form factor
ATX
- RAM type
DDR5 RAM
- RAM / Max. upgrade
256 GB

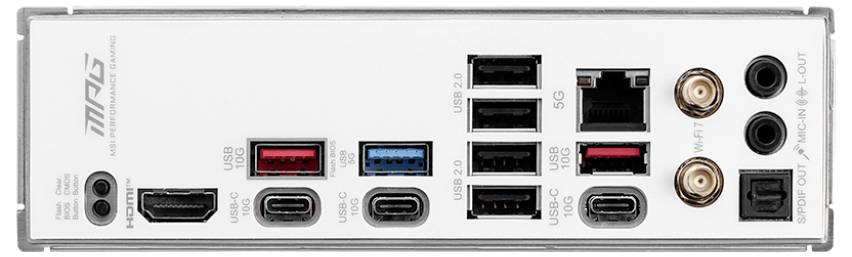

- Interfaces
HDMI™
USB A (USB 2.0)
USB A (USB 3.2 2nd gen)
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
4 x
- No. of USB 3.2 2nd Gen (USB 3.1)
3 x
- No. of SATA III ports
4 x
- Bluetooth
5.4
- Bluetooth
Yes
- Factory colour
White
- Depth
243.8 mm
- Height
100 mm
- Width
304.8 mm
- No. of HDMI ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
1 x
- No of. USB type A 3.1 /3.2 2nd gen
2 x
- 10/100/1000 Mbps ports
1 x
- Range of use
PC
- Wi-Fi
Yes
- UKCA
yes
- Ethernet LAN
yes
- Number of memory slots
4
- Number of M.2 (M) slots
4
- Maximum internal memory supported by processor
256 GB
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
- Total number of SATA connectors
4
- USB 2.0 ports quantity
4
- CPU fan connector
yes
- Number of HDDs supported
4
- RGB LED pin header
yes
- Supported memory clock speed (max)
8400 MHz
- RAID support
yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
4
- Number of storage drives supported
8
