MSI B860 Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® B860
EAN:
Part number:
Item no:

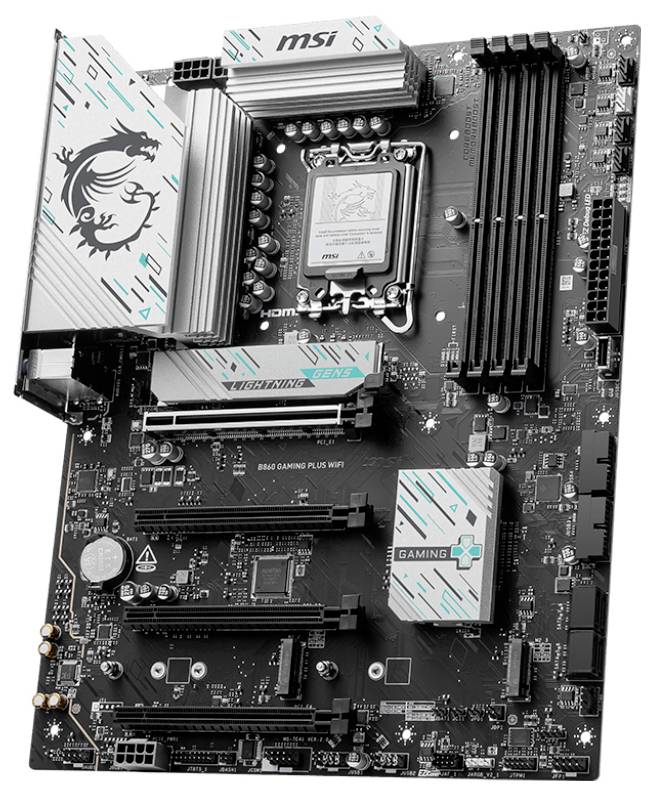

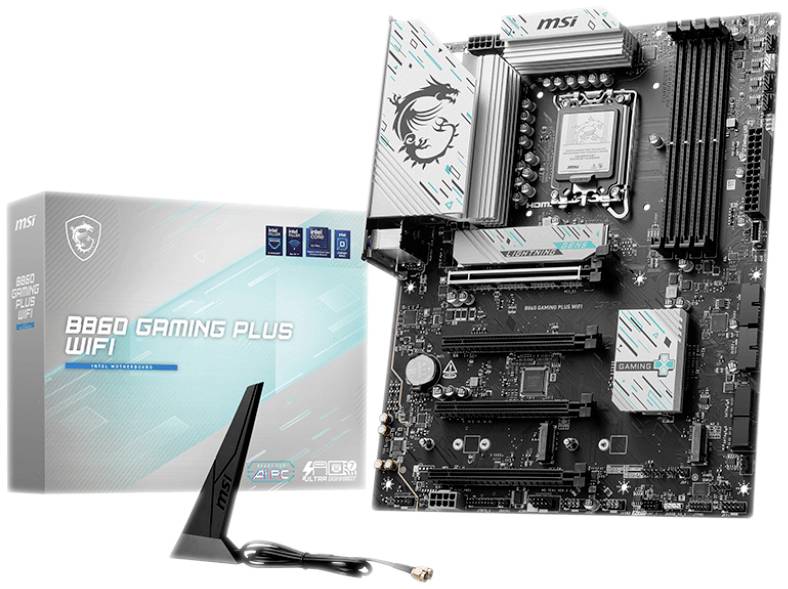

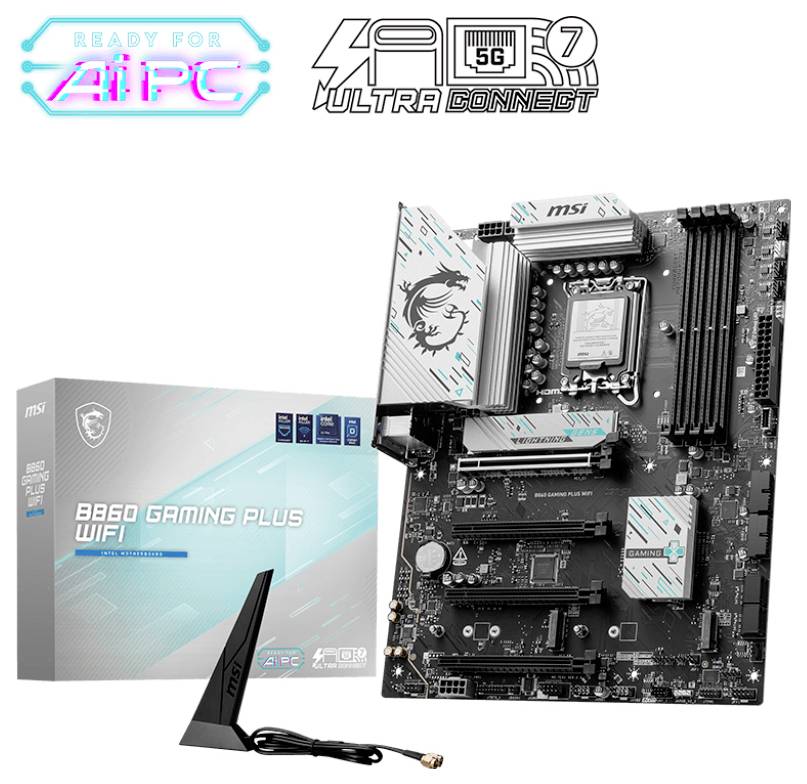

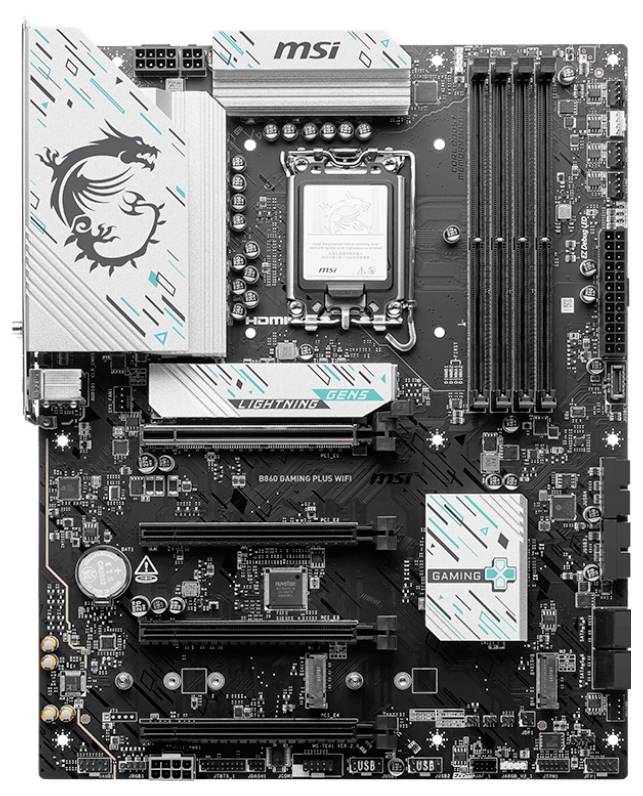

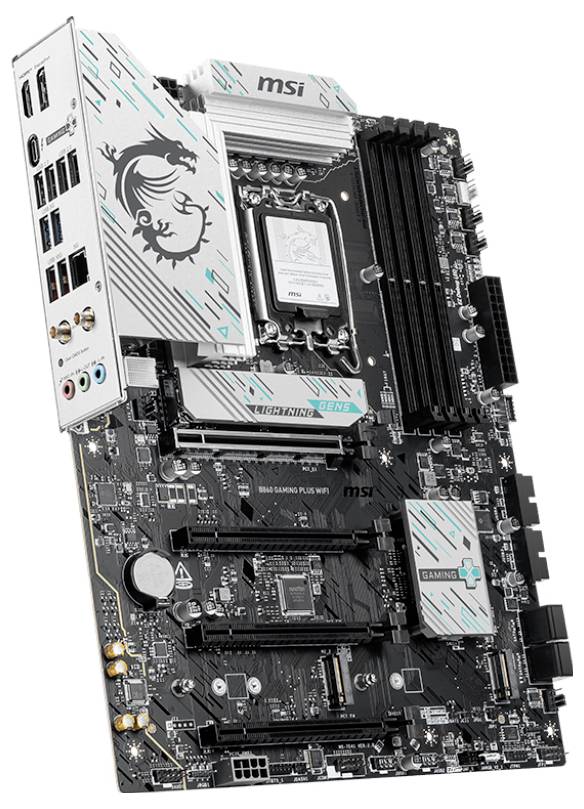

MSI B860 Motherboard
Highlights & Details
- Intel LGA 1851 (socket V1) Intel core ultra (series 2)
- PC ATX Intel B860 Realtek ALC897 7.1 channels
- DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
- HDD & SSD M.2, Micro SATA III RAID-support Number of supported storage drives: 7
- BIOS Type: UEFI AMI 256 Mbit ACPI Version: 6.5
- 5 Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4
- This text is machine translated.
Technical specifications
- LGA 1851 (socket V1)
- Supported processor slots: LGA 1851
- C-Ko compatibility: Non-ECC
- Number of CPU fan ports: 1
- Number of water pump connections: 1
- Number of GB LED pin strips: 3
- HDMI version 2.1
- WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
- Intel B860 motherboard chipset
- 1. M.2 Largest key size: 2280
- 1. M.2 highest PCI Express generation: 5.0
- 2. M.2 Largest key size: 2280
- 2. M.2 highest PCI Express generation: 4.0
- 3. M.2 Largest key size: 2280
- 3. M.2 highest PCI Express generation: 4.0
- Product type
Motherboard
- Chipset
Intel® B860
#####Intel® 1851
- Form factor
ATX
- RAM type
DDR5 RAM
- RAM / Max. upgrade
256 GB

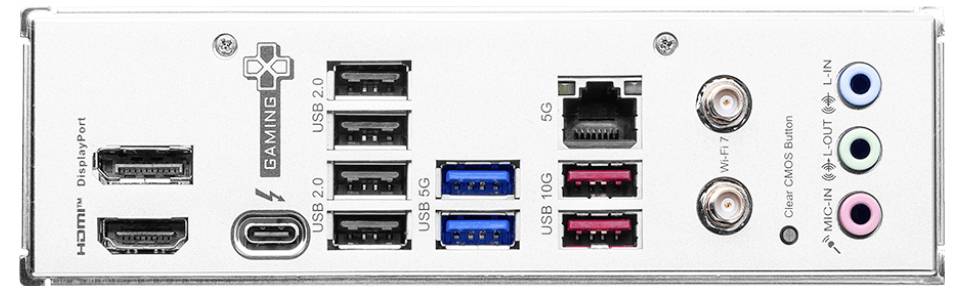

- Interfaces
HDMI™
USB A (USB 2.0)
- No. of PCIe 3.0 x16
3 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
4 x
- No. of SATA III ports
4 x
- Bluetooth
5.4
- Bluetooth
Yes
- Factory colour
Black
- Depth
304.8 mm
- Height
100 mm
- Width
243.8 mm
- No. of HDMI ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- No of. USB type A 3.1 /3.2 2nd gen
2 x
- 10/100/1000 Mbps ports
1 x
- Range of use
PC
- Wi-Fi
Yes
- UKCA
yes
- BIOS memory size
256 Mbit
- Ethernet LAN
yes
- Number of memory slots
4
- Number of M.2 (M) slots
3
- Maximum internal memory supported by processor
256 GB
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
- Total number of SATA connectors
4
- USB 2.0 ports quantity
4
- CPU fan connector
yes
- Number of HDDs supported
4
- RGB LED pin header
yes
- Supported memory clock speed (max)
8800 MHz
- RAID support
yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
4
- Number of storage drives supported
7
