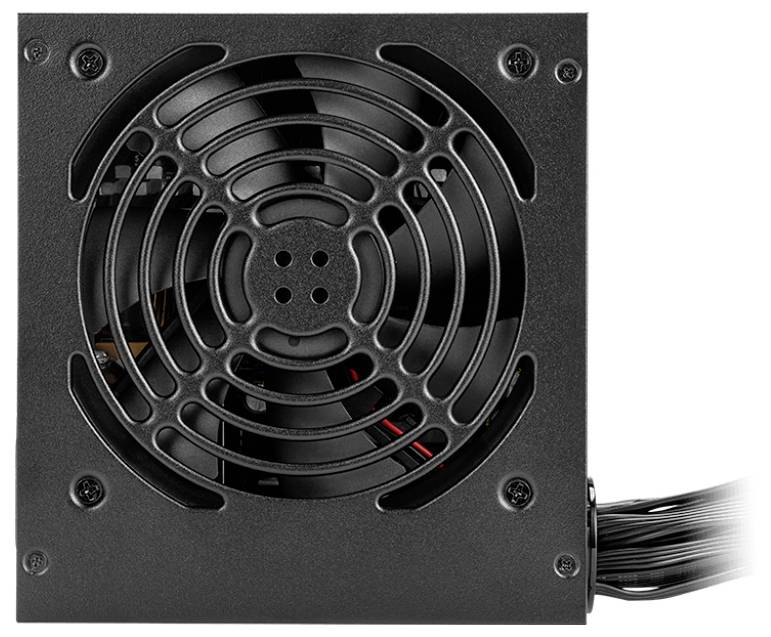

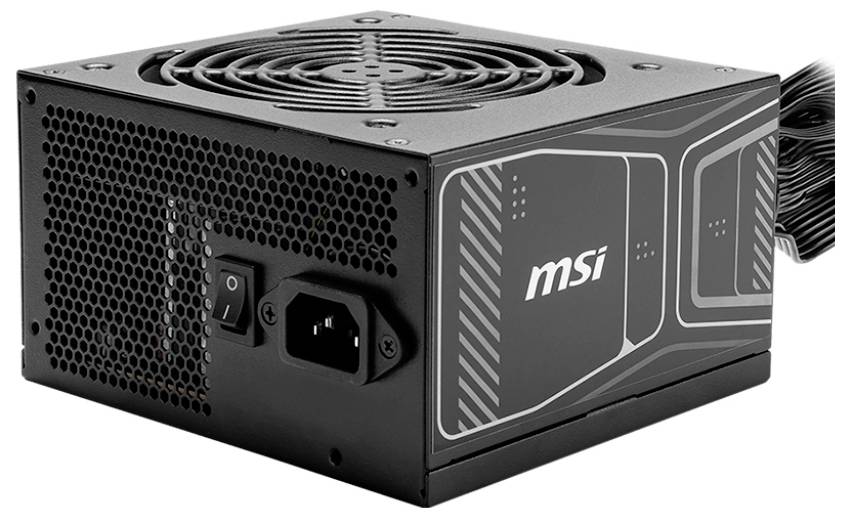

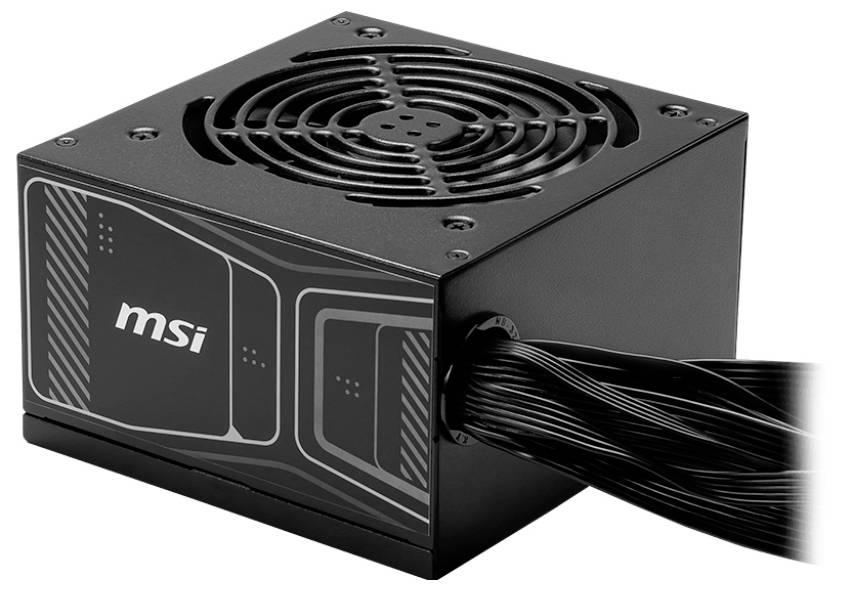

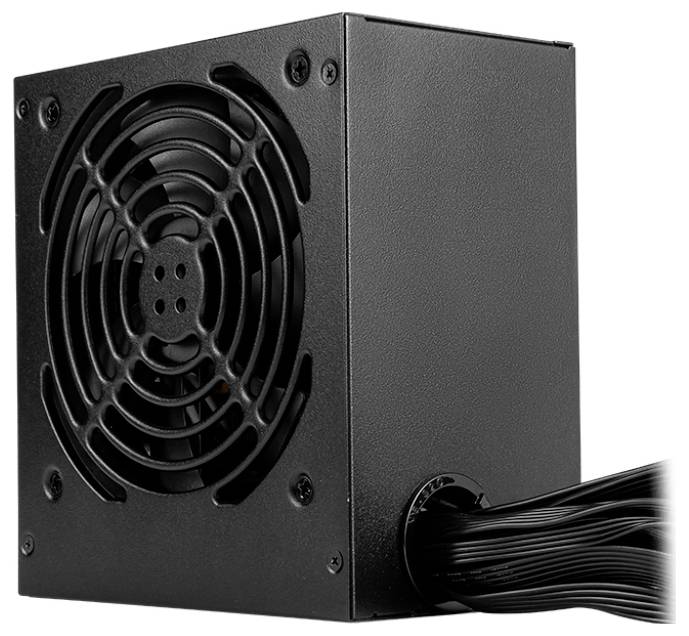

MSI MAG A850GN PCIE5 PC power supply unit 850 W ATX 80 PLUS Gold
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
850 W
Certification
80 PLUS Gold
Form factor
ATX
Factory colour
Black
Highlights & Details
MSI MAG A850GN PCIE5 PC power supply unit
- Power supply unit output 850 W
- PCI-Express (6+2-Pin) 2x
- Cable management
- 80 PLUS Gold
Technical specifications
- 80 Plus Certification 80 PLUS Gold
- Fan diameter 12 cm
- Number of fans: 1 fans
- Product type
PC power supply unit
- PSU output power
850 W
- Certification
80 PLUS Gold
- Form factor
ATX
- Factory colour
Black
- Dim
(W x H x D) 150 x 86 x 140 mm
- Depth
140 mm
- Height
86 mm
- Width
150 mm
- Weight
2.375
- -12V / DC
0.3 A
- +12 V/DC (1)
70.5 A
- 5 V DC
20 A
- +5V / DC SB
3 A
- 4-pin Molex
2
- 6-pin PCIe
2
- 5-pin SATA
4
- Power rating
751 W -
- Cooling
Active
- 3.3V DC
20 A
- Power supply (details)
100 - 240 V
- Operating voltage
230 V / AC
- UKCA
yes
- Illumination
no
- Motherboard power cable length
60 cm
- ATX Power connector (24-pin)
no
- EPS power connector (4+4 pin)
yes
- PCI Express power connectors (16-pin)
1
- Number of +12V rail(s)
1
- Efficiency
90 %
- On/off switch
yes
- EPS power connector (8-pin)
no
- ATX power connector (20+4 pin)
no
- CPU power connector (4+4 pin)
yes
- Combined power (+3.3V)
110 W
- Combined power (+12V)
846 W
- Combined power (+5V)
110 W
- Combined power (-12V)
3.6 W
- Combined power (+5Vsb)
15 W
