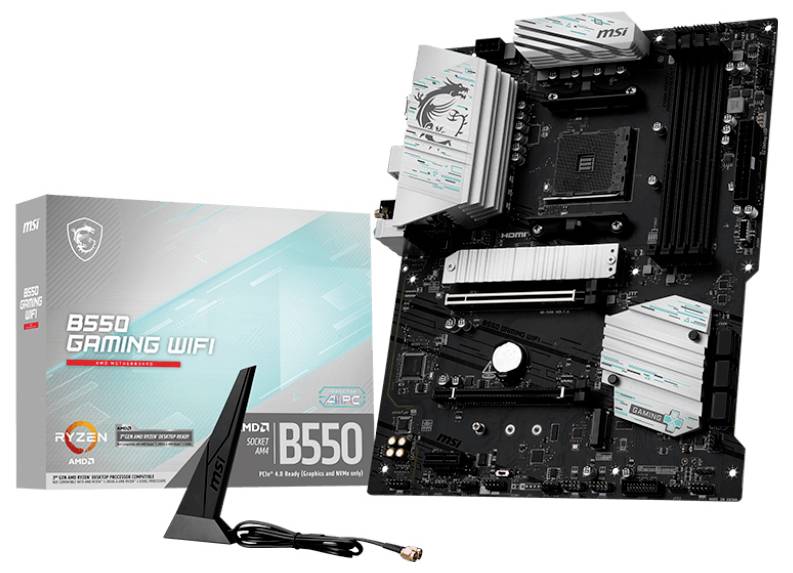

'MSI B550 Gaming WiFi motherboard' alongside its box and antenna. Features include Ryzen support and AMD B550 chipset.

'MSI B550 Gaming WiFi motherboard' alongside its box and antenna. Features include Ryzen support and AMD B550 chipset.

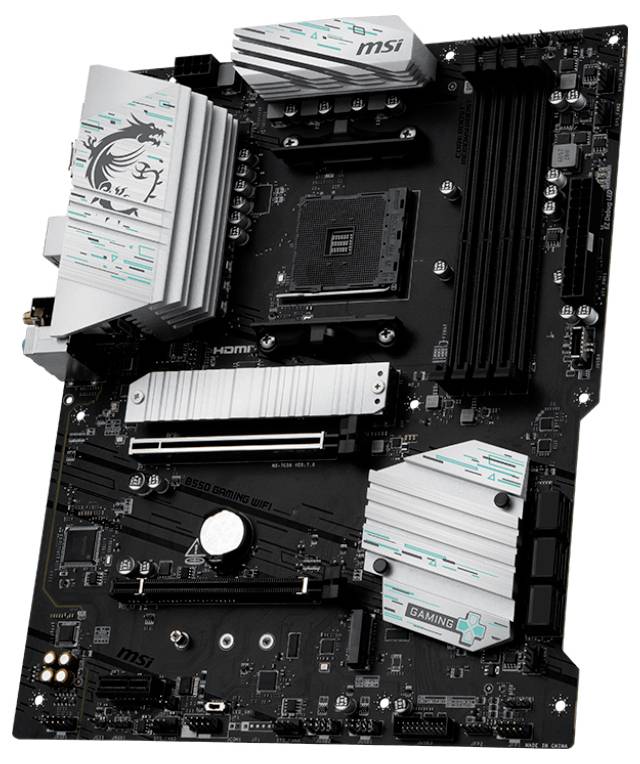

A black MSI motherboard with silver heatsinks, multiple PCIe slots, RAM slots, and labeled sections for gaming performance.

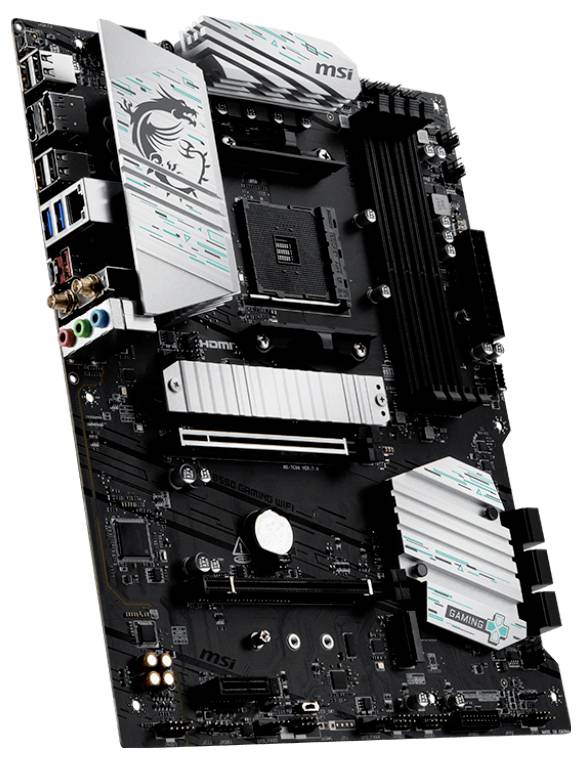

A black MSI motherboard with silver heatsinks, features multiple expansion slots, USB ports, audio jacks, and RGB accents arranged diagonally.

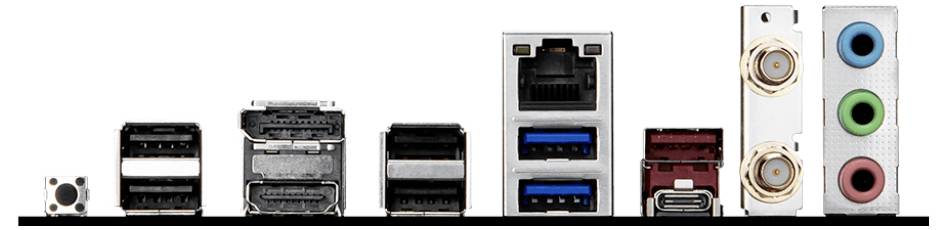

A variety of computer ports including USB, Ethernet, HDMI, and audio jacks arranged in a row from left to right.

1/5

MSI

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

MSI Motherboard

AMD socket AM4 AMD Ryzen 3000 series
PC ATX AMD B550 Realtek ALC897 7.1 channels
DDR4 SDRAM 4 DIMM RAM maximum: 128 GB
HDD & SSD SATA III
BIOS type: UEFI AMI 256 Mbit ACPI version: 6.0 Clear CMOS jumper
Gigabit Ethernet WLAN Wi-Fi 5 (802.11ac) Bluetooth 5.0
This text is machine translated.

Technical specifications

Socket AM4
ECC compatibility: ECC and non-ECC
WLAN-standards Wi-Fi 5 (802.11ac)
AMD B550 motherboard chipset
1. M.2 Largest key size: 22110
1. M.2 highest PCI Express generation: 4.0
2. M.2 Largest key size: 2280
2. M.2 highest PCI Express generation: 3.0

Product type: Motherboard

Chipset: AMD® B550

: AMD AM4

Form factor: ATX

Processor/type: Ryzen 3000 Series

RAM type: DIMM

RAM / Max. upgrade: 128 GB

Interfaces: M.2 PCIe

No. of DDR4 slots: 4 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 4 x

No. of USB 3.2 2nd Gen (USB 3.1): 1 x

No. of SATA III ports: 6 x

Onboard audio: 7.1

No. of PS/2 ports: 1 x

Bluetooth: 5.0

Bluetooth: Yes

Depth: 243.8 mm

Width: 304 mm

Display resolution: 4096 x 2160 Pixel

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 4 x

No. of USB type A 3.1 / 3.2 1st Gen: 2 x

No of. USB type A 3.1 /3.2 2nd gen: 1 x

10/100/1000 Mbps ports: 1 x

Range of use: PC

Wi-Fi: Yes

UKCA: yes

BIOS memory size: 256 Mbit

Ethernet LAN: yes

PCI Express x1 (Gen 3.x) slots: 2

Maximum number of SMP processors: 1

Number of memory slots: 4

Number of M.2 (M) slots: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Total number of SATA connectors: 6

S/PDIF out port: yes

Front panel connector: yes

12V power connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Chassis intrusion connector: yes

Digital audio optical out: 1

Front panel audio connector: yes

WiFi-AP antenna jack: 2

TPM connector: yes

RGB LED pin header: yes

Supported memory clock speed (max): 2667 MHz

Drivers included: yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Unbuffered memory: yes

Clear CMOS jumper: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3618922 MSI Motherboard PC base AMD AM4 Form factor (details) ATX Motherboard chipset AMD® B550
