Name: MSI MPG B760I EDGE WIFI Motherboard PC base Intel® 1700 Form factor (details) Mini-ATX Motherboard chipset Intel® B760
Brand: MSI
SKU: 3045506

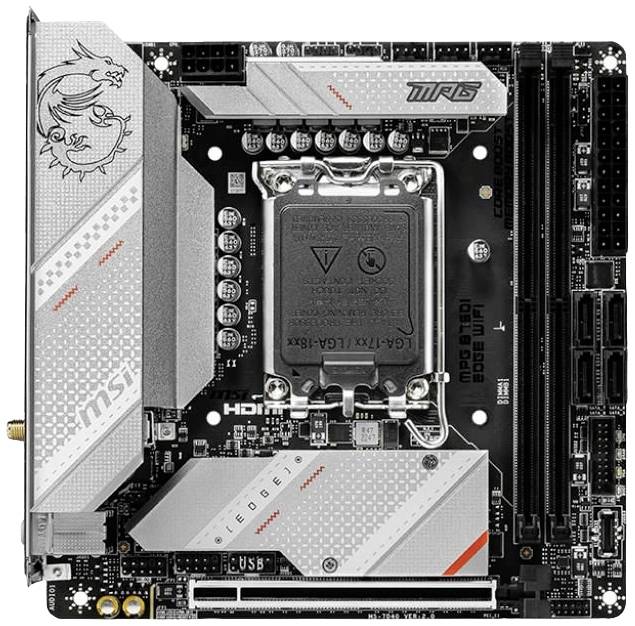

Compact computer motherboard with multiple ports and a CPU socket in the centre, adorned with a stylised dragon.

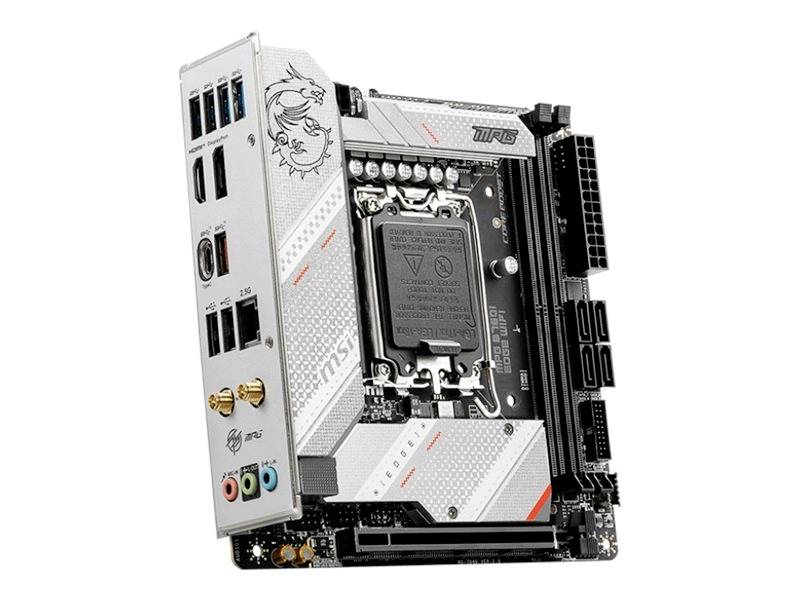

Motherboard with multiple ports, including USB ports and audio connections, featuring white, silver, and black design elements.

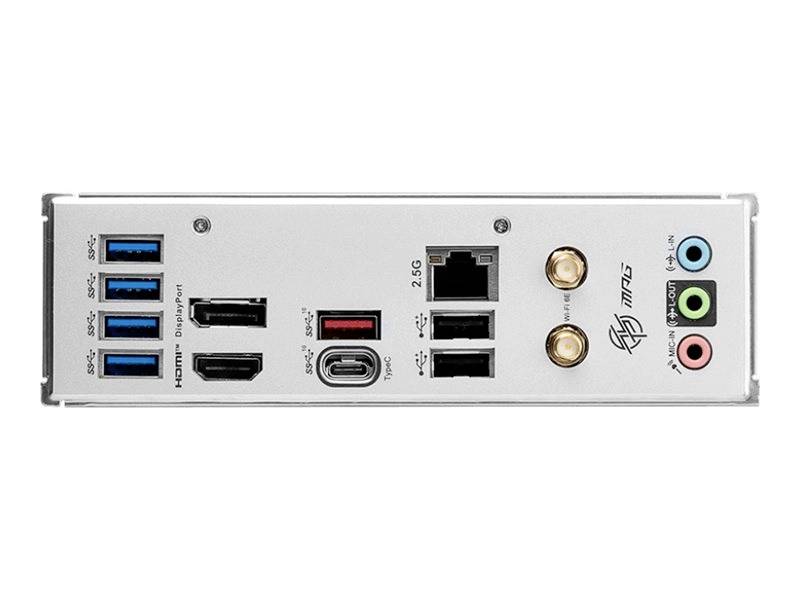

Back of a computer motherboard with multiple ports: USB, HDMI, DisplayPort, network port, audio inputs.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

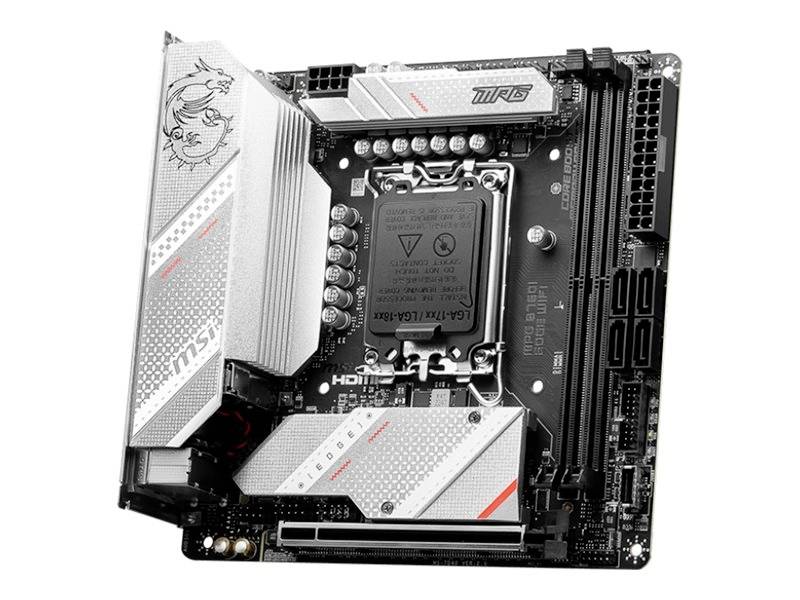

MSI MPG B760I EDGE WIFI Motherboard

Supports DDR5 memory
Lightning fast gaming experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
Improved performance design: Direct 8+1+1 phase power supply, Core Boost, Memory Boost
First-class thermal solution: Enlarged heat sink, MOSFET heat conduction pads for 7 W/mk, additional throttle heat conductive pads and M.2 Shield Frozr are designed for a high performance system and non-stop gaming experience
2.5G LAN and Intel Wi-Fi 6E solution: Improved network solution for professional and multimedia use, providing a secure, stable and fast network connection
Audio amplification: Reward your ears with sound quality in studio quality for an even more intense gaming experience
High-quality PCB: 8-layer PCB made of material at server level
Pre-installed I/O shielding: Better EMI protection and more comfort during installation
This text is machine translated.

Pre-contractual information under the EU Data Act

Technical specifications

Supported RAM Health Check: Non-ECC
RAM - Registered or buffered: Unbuffered
RAM features: Two-channel memory architecture, Intel extreme memory profiles (XMP)
Audio type: HD audio (8-channel)
Audio Codec: Realtek ALC897
Audio-compatibility: High-definition audio
Network controller Realtek RTL8125BG
Network interfaces: 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Expansion slots: 1 x CPU; 2 x DIMM 288-pin; 1 x PCIe 5.0 x16; 2 x M.2 socket (2280 M.2 Key M slot); 1 x M.2 socket (Key E); 2 x M.2 socket (2280 M.2 Key M slot)
Memory interfaces: SATA-600 ports: 4 x 7-pin serial ATA- RAID 0 / RAID 1 / RAID 10 / RAID 5; PCIe 4.0 ports 1 x M.2; SATA-600 / PCIe 4.0 ports: 1 x M.2
External interfaces: 4 x USB 3.2 Gen 1; 2 x USB 2.0; 1 x USB-C 3.2 Gen 2; 1 x USB 3.2 Gen 2; 2 x antenna; 1 x LAN (2.5Gigabit Ethernet); 1 x audio line out – mini jack plug; 1 x headphone output – mini jack plug; 1 x microphone – mini jack plug; 1 x HDMI; 1 x DisplayPort
Internal interfaces: 2 x USB 2.0 - multi-pin connector; 2 x USB 3.2 Gen 1 - multi-pin connector; 1 x USB-C 3.2 Gen 2 - multi-pin connector; 1 x audio - multi-pin connector
Power connections: Main power connection, 24-pin, ATX12V plug, 8-pin
BIOS type: AMI
BIOS Features: Multilingual BIOS, MSI ClickBIOS 5, ACPI 6.4 support, SMBIOS 3.5 support
Hardware features: MSI audio boost, 8 layer PCB, debug LED, MSI mystic light, MSI steel armor, 2oz copper PCB, M.2 shield FROZR, water pump header, pre-mounted I/O shield, MSI core boost, Extended heat sink design, DIY friendly design, firmware Trusted Platform Module (TPM) 2.0, compatible with Windows 11, 8+1+1 Phase Power design, MSI memory boost, 90A Power stage

Product type: Motherboard

Chipset: Intel® B760

: Intel® 1700

Form factor: Mini-ATX

Processor/type: unterstützt 12. Generation von Intel Core / Pentium / Celeron

RAM type: DDR5 RAM

Clock speed: 5800 MHz
6000 MHz
4800 MHz
6200 MHz
6400 MHz
6600 MHz
7000 MHz
6800 MHz
7200 MHz
5200 MHz
5000 MHz
5600 MHz
5400 MHz
Show more

RAM / Max. upgrade: 64 GB

Interfaces: USB A (USB 3.2 1st gen)
USB A (USB 2.0)
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 2nd gen)
Gigabit LAN (1/2.5 Gbps)
Audio line in
Audio line out
Microphone (3.5 mm jack)
HDMI™
DisplayPort
Bluetooth
Wi-Fi 6E (IEEE 802.11ax)
Show more

No. of DDR5 slots: 2 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 4 x

No. of USB 3.2 2nd Gen (USB 3.1): 1 x

No. of USB 3.2: 6 x

No. of USB 3.0 ports: 2 x

Factory colour: Multicolour

Depth: 250 mm

Height: 100 mm

Width: 200 mm

UKCA: yes
