Name: MSI MPG Z890 Edge TI Wifi Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® Z890
Brand: MSI
SKU: 3342046

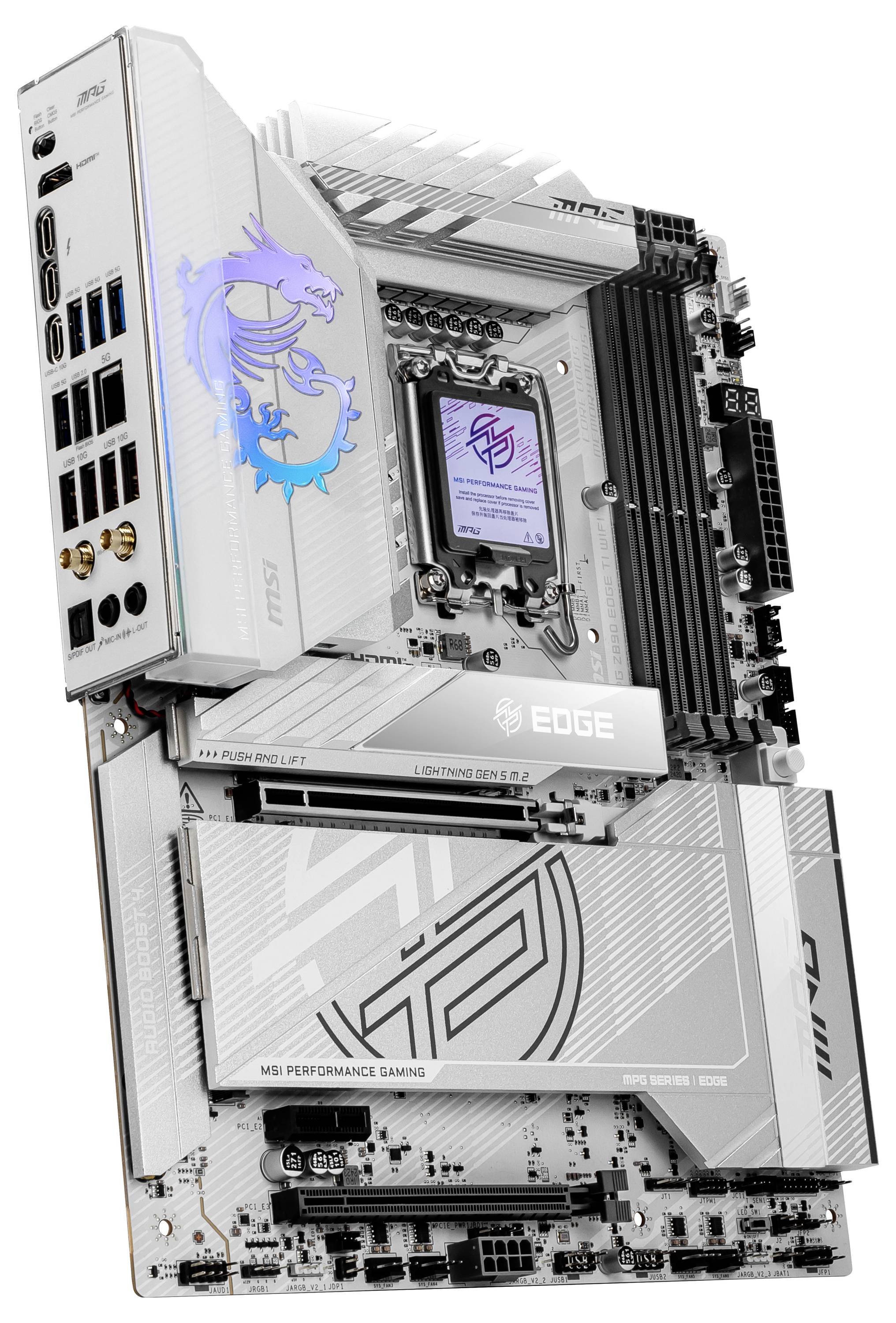

Silver MSI Z790 motherboard for Intel CPUs, with integrated heatsink and multiple connection options.

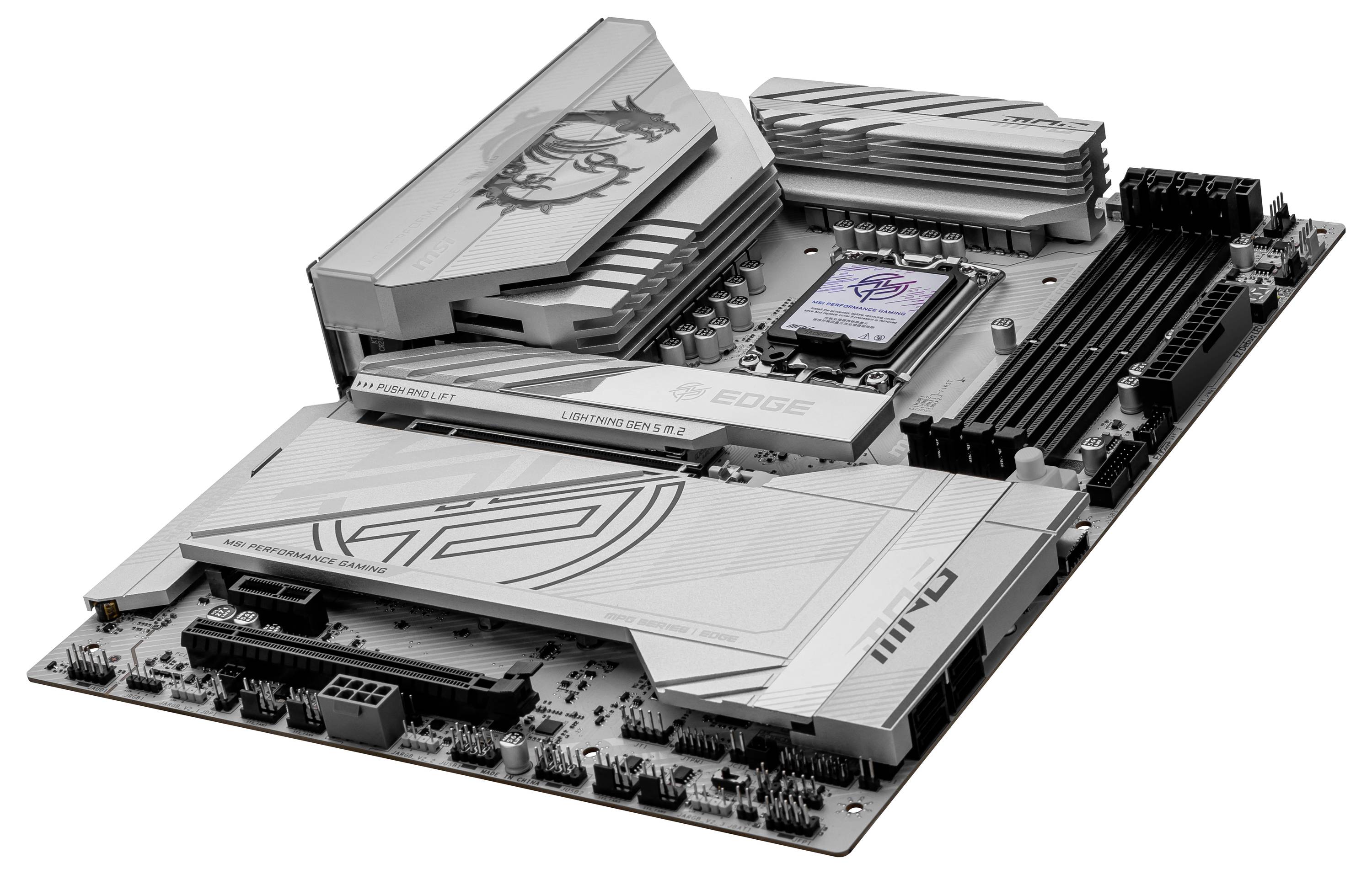

A silver computer motherboard with a CPU socket, memory slots, and various connections. Design featuring geometric patterns.

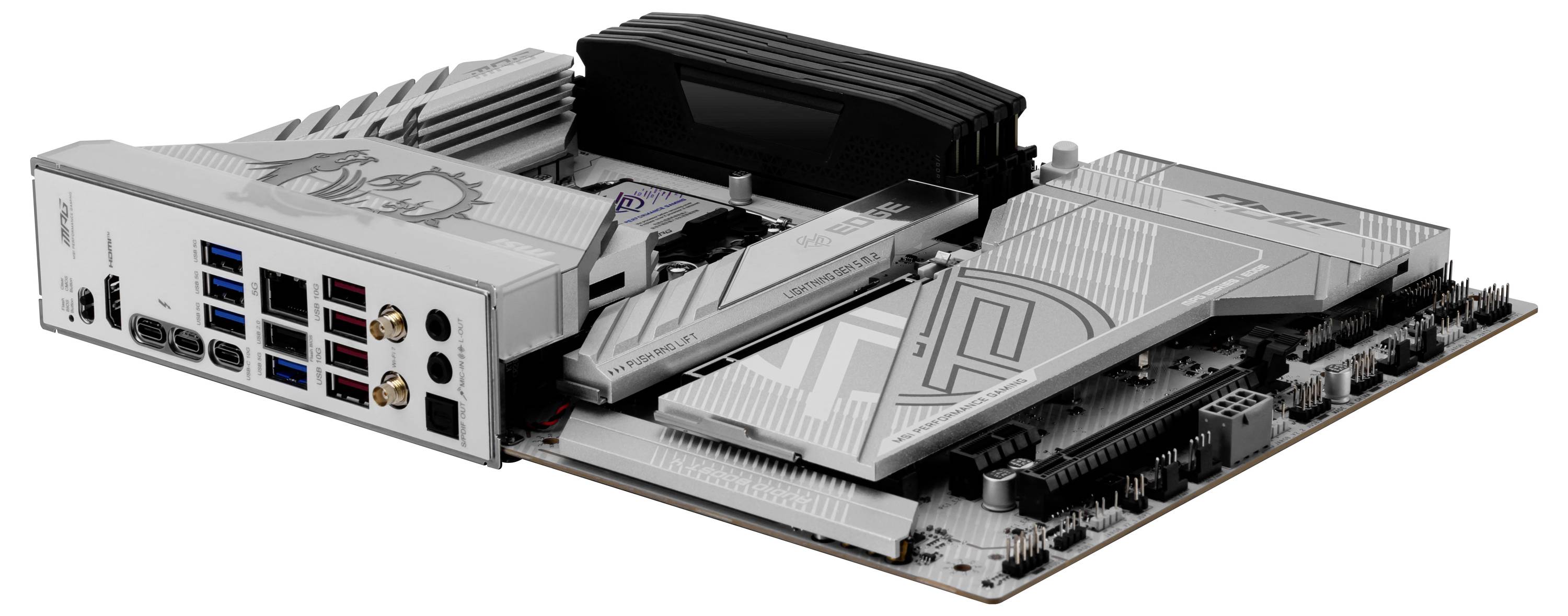

A grey PC motherboard with multiple PCIe slots, heatsinks, and connection options, including HDMI, USB ports, and audio sockets.

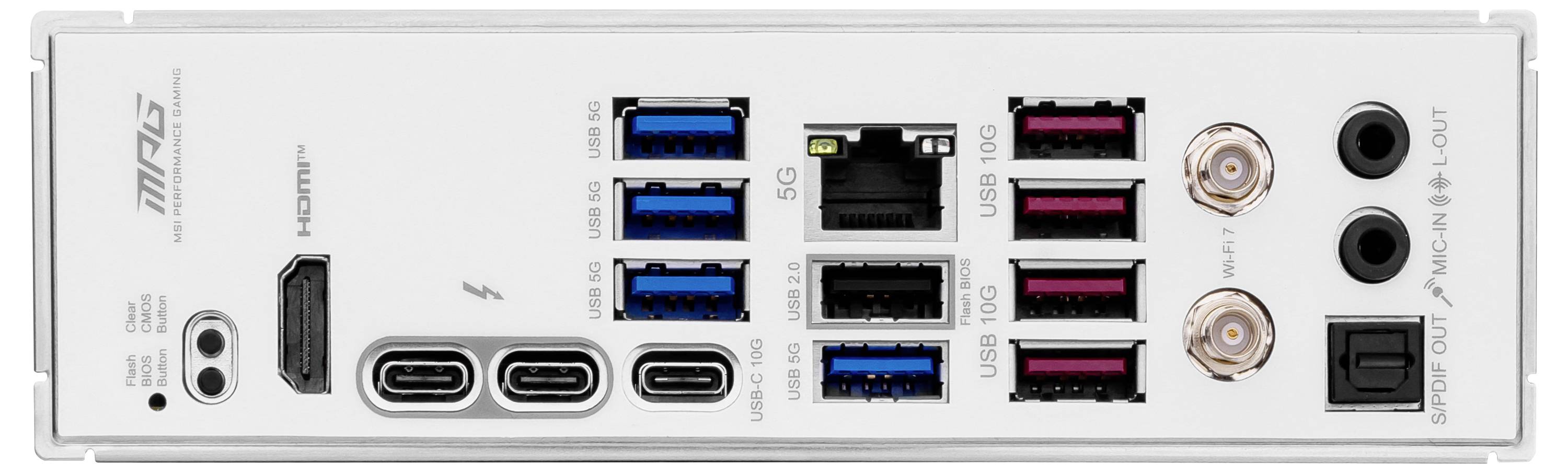

Back of a motherboard with HDMI port, USB ports, Ethernet port and audio connections.

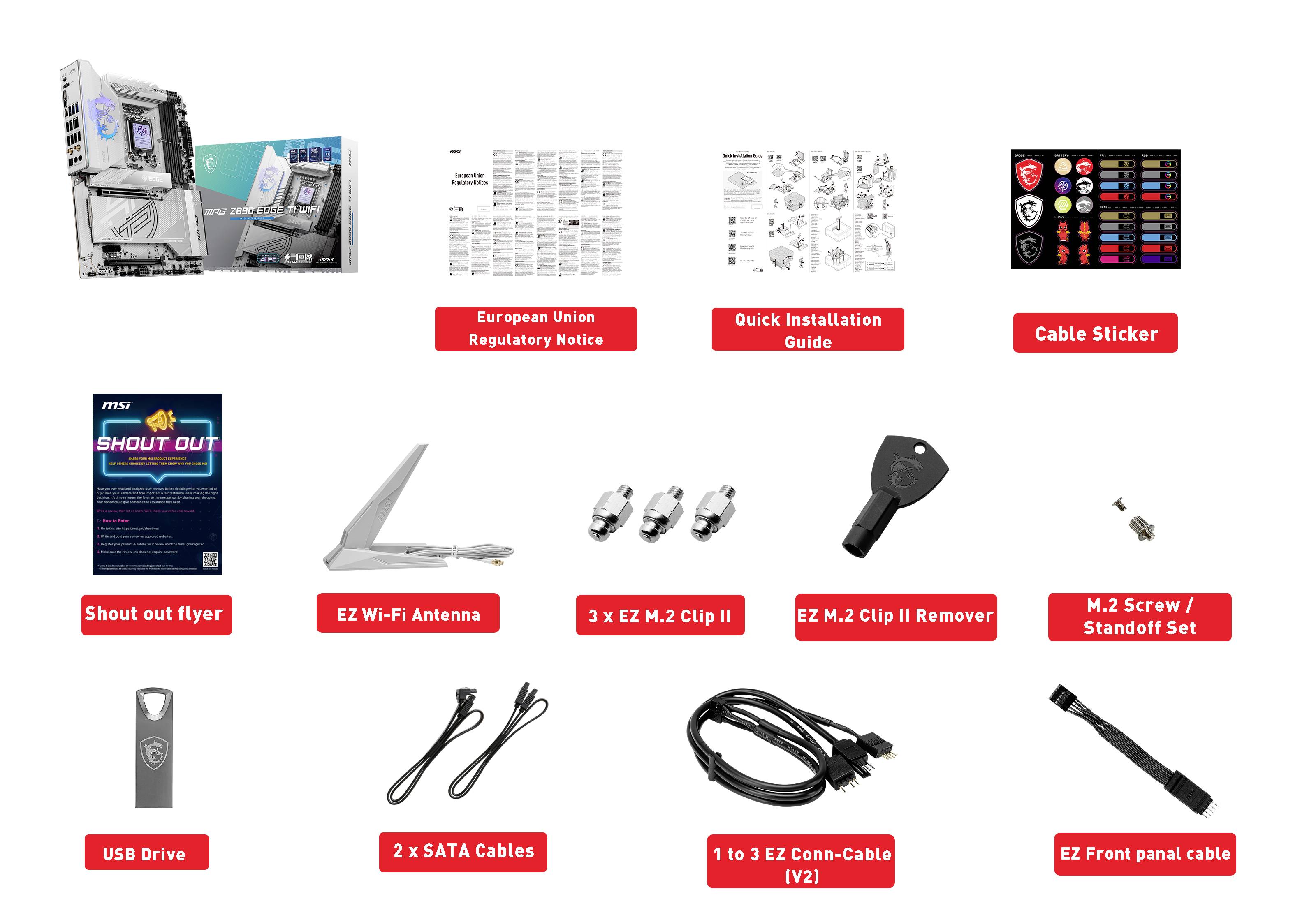

'Motherboard and Accessories: A variety of cables, stickers, manuals, antenna, USB stick and mounting tools required for installation.'

1/7

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

MSI MPG Z890 Edge TI Wifi Motherboard

Intel LGA 1851 (socket V1)
Suitable for Intel Core Ultra (2 series)
Max. 256 GB DDR5 SDRAM
This text is machine translated.

Pre-contractual information under the EU Data Act

Technical specifications

5x M2 interface (1x PCIe 5.0 x4, 4x PCIe 4.0 4x)

Product type: Motherboard

Chipset: Intel® Z890

: #####Intel® 1851

Form factor: ATX

RAM type: DDR5 RAM

Clock speed: 9200 MHz

RAM / Max. upgrade: 256 GB

Interfaces: HDMI™
Bluetooth
Thunderbolt 4

No. of DDR5 slots: 4 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe x16: 2 x

No. of PCIe x4: 1 x

No. of PCIe x1: 1 x

No. of USB 2.0 ports: 9 x

No. of USB 3.2 2nd Gen (USB 3.1): 4 x

No. of USB 3.2: 10 x

No. of USB 3.0 ports: 3 x

No. of SATA III ports: 4 x

Onboard audio: 7.1
Optical S/PDIF

Onboard graphics: HDMI 2.1; Thunderbolt

Factory colour: Multicolour

Depth: 300 mm

Height: 100 mm

Width: 300 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3342046 MSI MPG Z890 Edge TI Wifi Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® Z890

Features

MSI MPG Z890 EDGE TI WIFI
Processor manufacturer: Intel, processor socket: LGA 1851 (socket V1), compatible processors: Intel core ultra (series 2)
Supported memory: DDR5 SDRAM, RAM maximum: 256 GB, memory type: DIMM
Supported drive interfaces: M.2, SATA III, supported drives: HDD & SSD, RAID levels: 0, 5, 10
Ethernet interface type: 5 Gigabit Ethernet, top WLAN standard: Wi-Fi 7 (802.11b), WLAN standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...
Component for: PC, motherboard form factor: ATX, motherboard chipset family: Intel

Hints

Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.

Description

Features

MSI MPG Z890 EDGE TI WIFI
Processor manufacturer: Intel, processor socket: LGA 1851 (socket V1), compatible processors: Intel core ultra (series 2)
Supported memory: DDR5 SDRAM, RAM maximum: 256 GB, memory type: DIMM
Supported drive interfaces: M.2, SATA III, supported drives: HDD & SSD, RAID levels: 0, 5, 10
Ethernet interface type: 5 Gigabit Ethernet, top WLAN standard: Wi-Fi 7 (802.11b), WLAN standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...
Component for: PC, motherboard form factor: ATX, motherboard chipset family: Intel
