MSI MSI MEG X870E ACE MAX AM5 Motherboard Form factor (details) ATX
EAN:
Part number:
Item no:
Highlights & Details

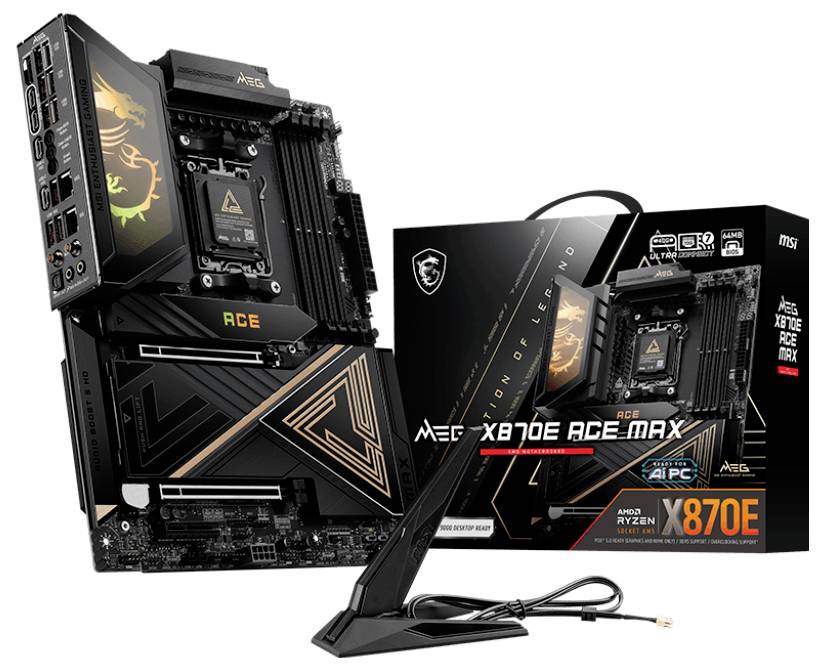

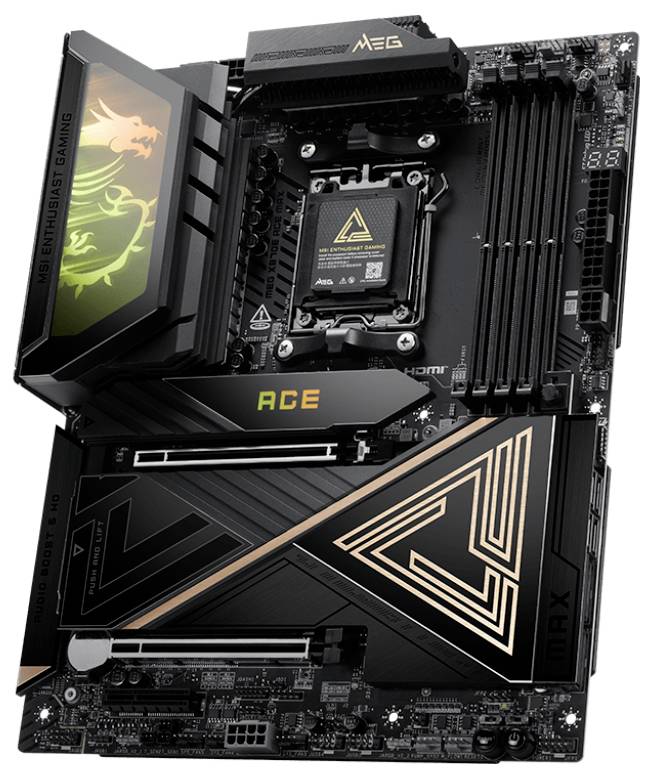

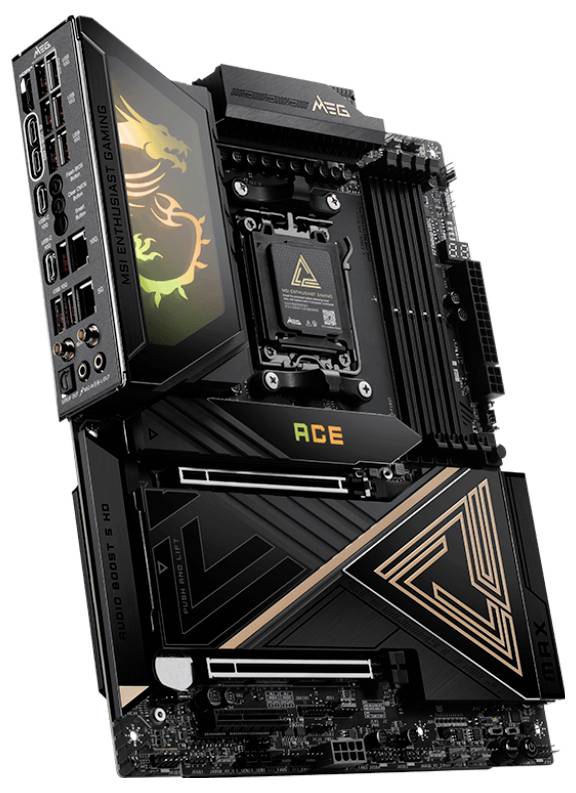

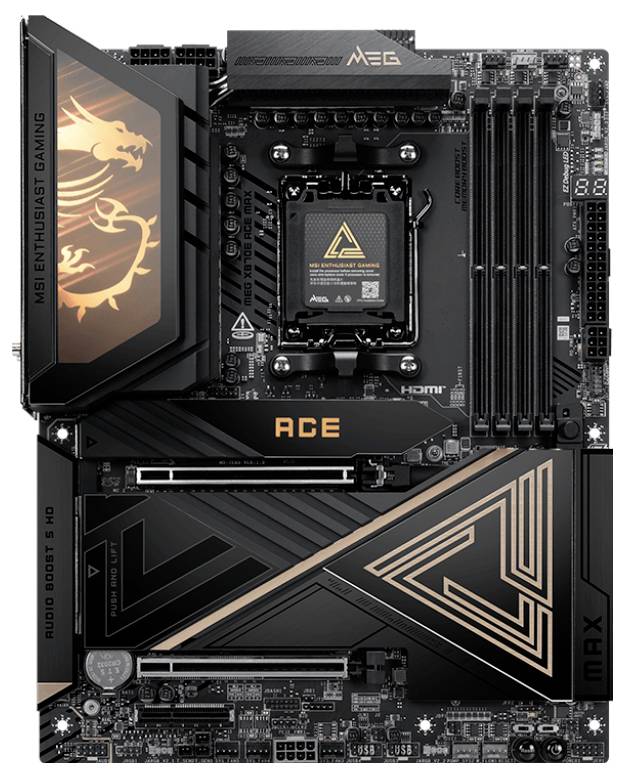

MSI MSI MEG X870E ACE MAX AM5 Motherboard
- AMD socket AM5 AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
- PC ATX AMD X870E 7.1 channels
- DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 9
- BIOS Type: UEFI AMI 512 Mbit ACPI Version: 6.4
- 5 Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4
Technical specifications
- Socket AM5
- Supported processor slots: Socket AM5
- Supported memory: DDR5 SDRAM
- HDMI version 2.1
- WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
- AMD X870E motherboard chipset
- Product type
Motherboard
- Form factor
ATX
- RAM type
DIMM
- RAM / Max. upgrade
256 GB
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
4 x
- No. of USB 3.2 2nd Gen (USB 3.1)
2 x
- No. of SATA III ports
4 x
- Bluetooth
5.4
- Bluetooth
Yes
- Factory colour
Black
- Depth
30438 mm
- Width
243.8 mm
- No of. USB type A 3.1 /3.2 2nd gen
9 x
- Onboard graphics card
No
- 10/100/1000 Mbps ports
1 x
- Range of use
PC
- Wi-Fi
Yes
- BIOS memory size
512 Mbit
- Ethernet LAN
yes
- Number of memory slots
4
- Number of M.2 (M) slots
5
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
- Total number of SATA connectors
4
- Microphone in
yes
- S/PDIF out port
yes
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- Number of HDDs supported
4
- USB4 Gen 2x2 ports quantity
2
- Supported memory clock speed (max)
9000 MHz
- EPS power connector (8-pin)
yes
- RAID support
yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
4
- Number of storage drives supported
9
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3720917 MSI MSI MEG X870E ACE MAX AM5 Motherboard Form factor (details) ATX
Description
The MSI MEG X870E ACE MAX motherboard is designed for performance enthusiasts and gamers looking for a powerful and flexible platform for their systems. It is based on the AMD X870E chipset and supports the Ryzen 7000, 8000 and 9000 series processors, thereby fully exploiting the potential of these high-end CPUs. Thanks to the support for DDR5 SDRAM and speeds of up to 9000 MT/s, this motherboard enables the users to equip their system with advanced memory configurations, in order to achieve excellent multi-tasking and response speed.
The connection possibilities are extensive, because the MPEG X870E ACE MAX has several USB 3.2 Gen 2 ports, including USB-C, as well as USB4 compatibility. Users will appreciate the robust PCIe 5.0 slots that enable the installation of high-speed GPUs and NVMe drives. The advanced cooling functions, including an aluminum heat-sink design and the Frozr AI cooling technology, provide an optimum heat management, while the hardware monitoring keeps the system temperatures under control. This motherboard meets the demands of modern games and content creation, while providing a wide range of customization options using Mystic Light and EZ DIY technologies from MSI.
This text is machine translated.
