MSI MSI PRO X870E-S EVO WiFi Motherboard Form factor (details) ATX
EAN:
Part number:
Item no:
Highlights & Details

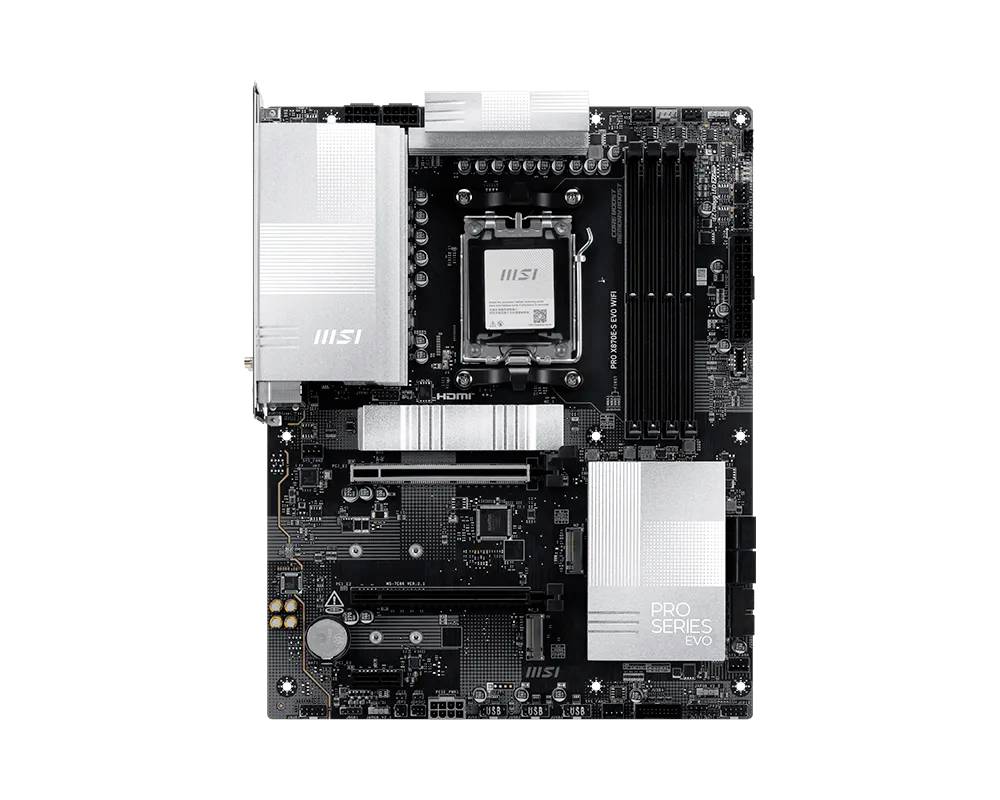

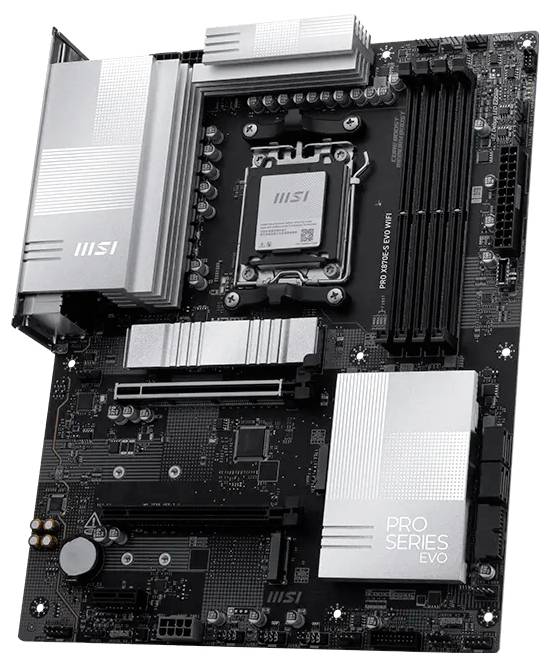

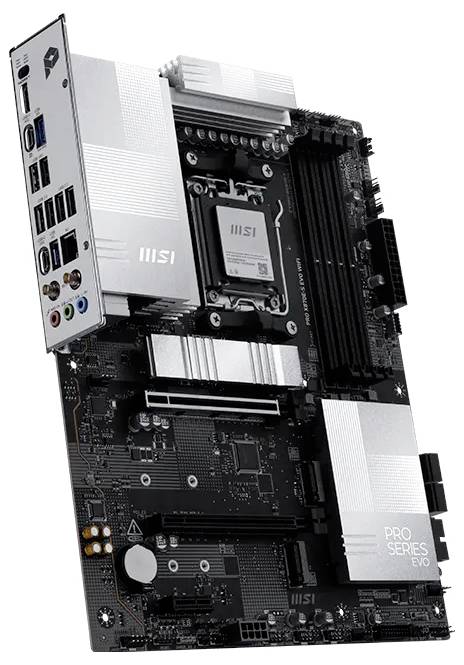

MSI MSI PRO X870E-S EVO WiFi Motherboard
- AMD socket AM5 AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
- PC ATX AMD X870E Realtek ALC897 7.1 channels
- DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 7
- BIOS Type: UEFI AMI 512 Mbit ACPI Version: 6.5
- WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4
- This text is machine translated.
Technical specifications
- Socket AM5
- Supported processor slots: Socket AM5
- Supported memory: DDR5 SDRAM
- HDMI version 2.1
- WLAN-standards Wi-Fi 7 (802.11b)
- AMD X870E motherboard chipset
- Product type
Motherboard
- Form factor
ATX
- RAM type
DIMM
- RAM / Max. upgrade
256 GB
- No. of PCIe x16
3 x
- No. of PCIe x1
1 x
- No. of USB 2.0 ports
6 x
- No. of SATA III ports
4 x
- Bluetooth
5.4
- Bluetooth
Yes
- Factory colour
Black
- No. of DisplayPort
2 x
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
4 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- No of. USB type A 3.1 /3.2 2nd gen
2 x
- Onboard graphics card
No
- 10/100/1000 Mbps ports
1 x
- Range of use
PC
- Wi-Fi
Yes
- BIOS memory size
512 Mbit
- Number of memory slots
4
- Number of M.2 (M) slots
3
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
- Total number of SATA connectors
4
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- Number of HDDs supported
4
- TPM connector
yes
- RGB LED pin header
yes
- USB4 Gen 2x2 ports quantity
1
- USB4 Gen 3x2 ports quantity
1
- Supported memory clock speed (max)
8200 MHz
- EPS power connector (8-pin)
yes
- RAID support
yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
4
- Number of storage drives supported
7
