Name: MSI MSI Z890-S Pro Wifi6E (1851) (D) Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset
Brand: MSI
SKU: 3762574

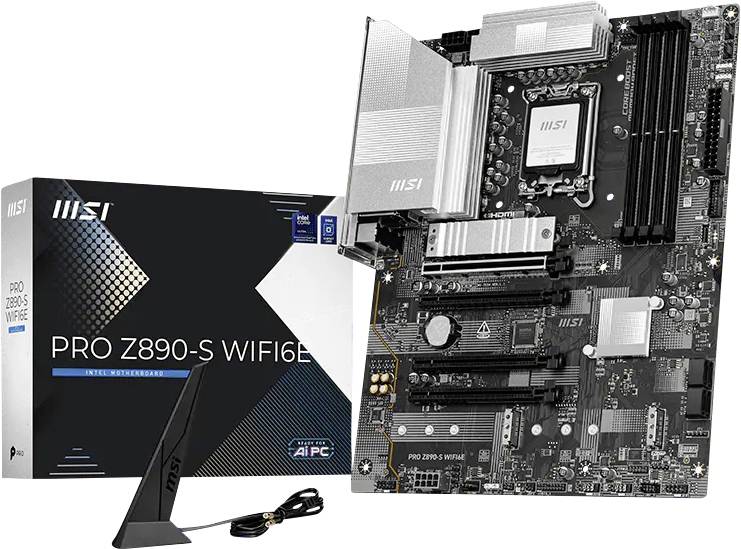

MSI PRO Z890-S WIFI6E motherboard shown with retail box, stand, and cable, featuring Intel Core Ultra support and PCIe slots.

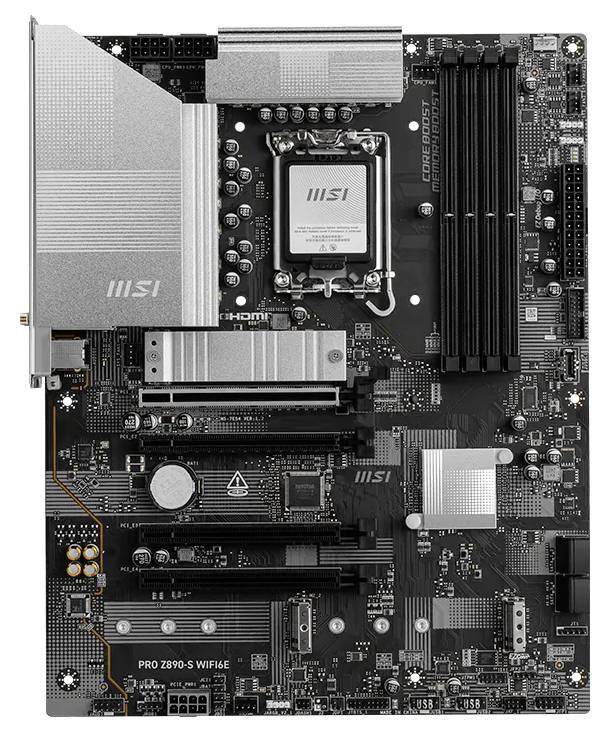

MSI PRO Z890-S WIFI6E motherboard, showing CPU socket, RAM slots, PCIe slots, heatsinks, and power connectors.

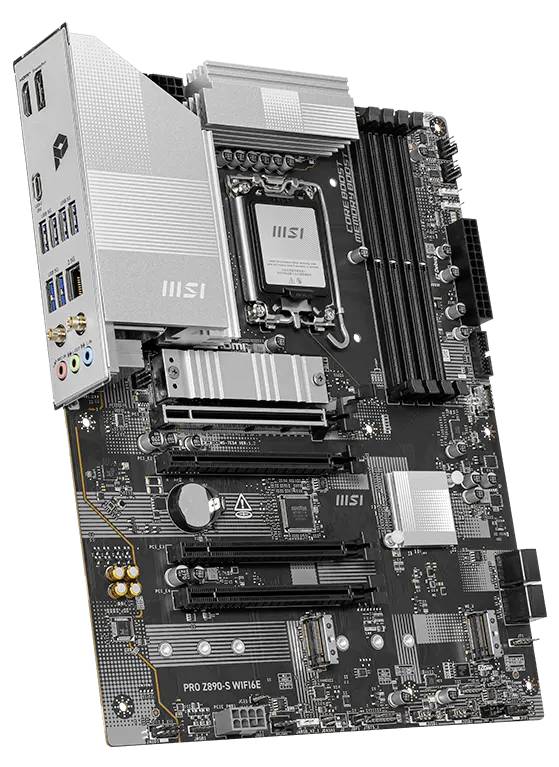

MSI Pro Z890-S WIFI motherboard shown at an angle, with CPU socket, RAM slots, PCIe slots, heatsinks, rear I/O, and power connectors visible.

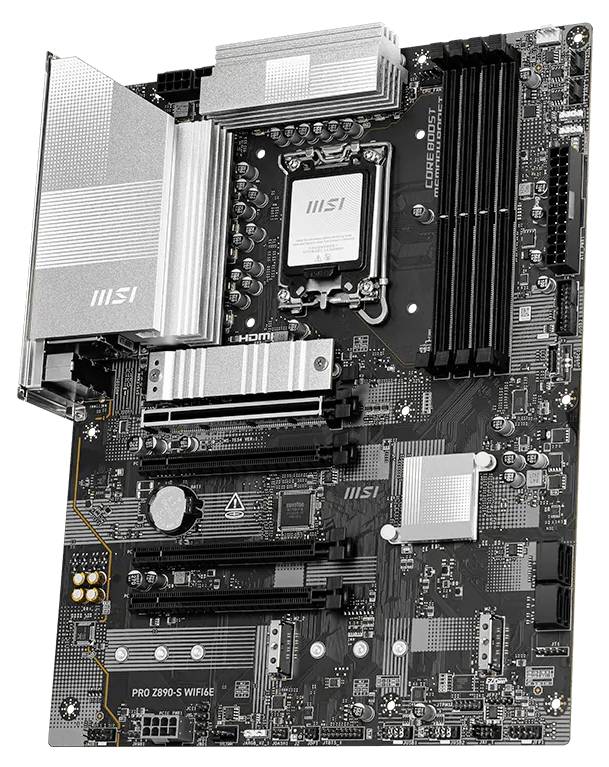

MSI PRO Z790-S WIFI motherboard shown from above, with CPU socket, RAM slots, PCIe slots, heatsinks, and rear I/O shield visible.

Front panel of a mini PC showing multiple ports: two HDMI, USB-C, six USB-A, 2.5G Ethernet, and audio jacks.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Audio: Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
LAN: Realtek® 8125D 2.5Gbps LAN
Wireless LAN & Bluetooth: Wi-Fi 6e module
Operating system: Windows® 11 64-bit

Product type: Motherboard

Chipset: Intel® Z890

: #####Intel® 1851

Form factor: ATX

Processor/type: Intel® Core™ Ultra-Prozessoren (Serie 2)

RAM type: DDR5 RAM

RAM / Max. upgrade: 256 GB

Interfaces: HDMI® 2.1
DisplayPort
USB C®
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
RJ45
HD Audio
Wi-Fi 6E (IEEE 802.11ax)

No. of DDR5 slots: 4 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe x4: 2 x

No. of PCIe x1: 1 x

No. of USB 2.0 ports: 4 x

No. of USB 3.2: 8 x

No. of USB 3.0 ports: 2 x

No. of SATA III ports: 4 x

Onboard audio: 7.1 HD

Onboard graphics: HDMI 2.1, DisplayPort 1.4

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3762574 MSI MSI Z890-S Pro Wifi6E (1851) (D) Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset

User & Safety Instructions

User & Safety Instructions 3762574 MSI MSI Z890-S Pro Wifi6E (1851) (D) Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset

Description

The PRO Z890-S WIFI6E combines an elegant silver design with powerful features such as Wi-Fi 6E, 2.5G LAN, PCIe 5.0 M.2 and additional PCIe power supply – perfect for Intel® Core™ Ultra processors.
