MSI PRO B760M-P Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel® B760
EAN:
Part number:
Item no:

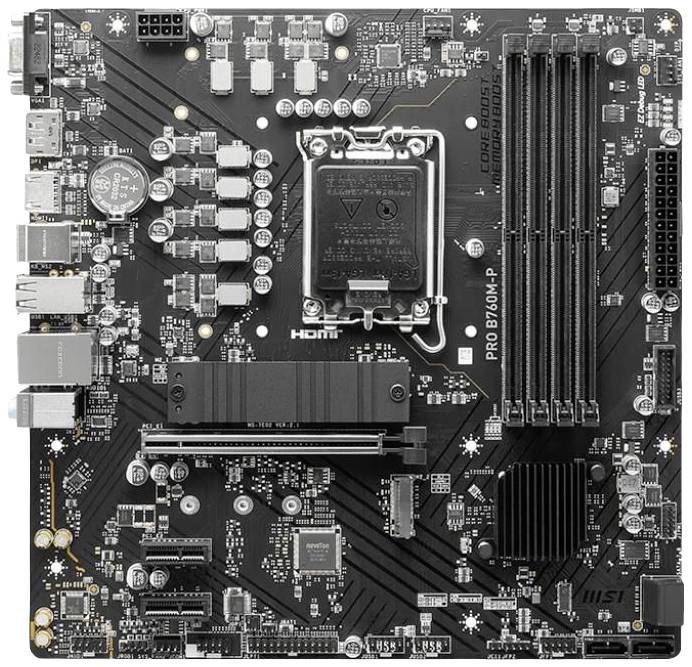

MSI PRO B760M-P Motherboard
Highlights & Details
- Supports DDR5 memory, Dual channel DDR5 6800+MHz (OC)
- Core Boost - with top-class layout and digital power supply design to support more cores and for better performance
- Memory Boost - advanced technology for providing pure data signals for the best performance, stability and compatibility
- Lightning fast experience - PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- AUDIO BOOST - spoils your ears with sound quality in studio quality for an especially intensive gaming experience
- Steel Armor - Protection of the VGA-cards against bending and EMI for better performance, stability and strength
- This text is machine translated.
Technical specifications
- Supported RAM Health Check: Non-ECC
- RAM - Registered or buffered: Unbuffered
- RAM features: Two-channel memory architecture, Intel extreme memory profiles (XMP) 3.0
- Audio type: HD audio (8-channel)
- Audio Codec: Realtek ALC897
- Audio-compatibility: High-definition audio
- Realtek RTL8111H network controller
- Network interfaces: Gigabit Ethernet
- Expansion slots: 1 x CPU; 4 x DIMM 288-pin; 1 x PCIe 4.0 x16; 2 x PCIe 4.0 x1; 2 x M.2 socket (2242/2260/2280 M.2 slot with Key M)
- Memory interfaces: SATA-600 ports: 4 x 7-pin serial ATA- RAID 0 / RAID 1 / RAID 10 / RAID 5; PCIe 4.0 ports 2 x M.2
- External interfaces: 1 x HDMI; 1 x DisplayPort; 1 x VGA; 4 x USB 2.0; 1 x USB 3.2 Gen 1; 1 x USB-C 3.2 Gen 2; 1 x LAN (Gigabit Ethernet); 1 x audio line out – mini jack plug; 1 x microphone – mini jack plug; 1 x audio line in mini jack plug
- Internal interfaces: 4 x USB 2.0 - multi-pin connector; 2 x USB 3.2 Gen 1 - multi-pin connector; 1 x serial - multi-pin connector; 1 x audio - multi-pin connector; 1 x SPI - multi-pin connector
- Power connections: Main power connection, 24-pin, ATX12V plug, 8-pin
- BIOS Features: M-FLASH, MSI ClickBIOS 5
- Hardware features: MSI audio boost, debug LED, MSI steel armor, M.2 shield FROZR, MSI core boost, MSI memory boost
- Product type
Motherboard
- Chipset
Intel® B760
Intel® 1700
- Form factor
Micro-ATX
- Processor/type
unterstützt 12. und 13. Generation von Intel Core / Pentium Gold / Celeron
- RAM type
DDR5 RAM
- Clock speed
5800 MHz
6000 MHz
4800 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
5200 MHz
5000 MHz
5600 MHz
Show more
- RAM / Max. upgrade
128 GB
- Interfaces
HDMI™
DisplayPort
VGA
USB A (USB 2.0)
USB A (USB 3.2 1st gen)
USB A (USB 3.2 2nd gen)
Gigabit LAN (1 Gbps)
Audio line in
Audio line out
Microphone (3.5 mm jack)
Show more
- No. of DDR5 slots
4 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x1
2 x
- No. of USB 2.0 ports
8 x
- No. of USB 3.2
3 x
- No. of USB 3.0 ports
1 x
- No. of serial ports
1 x
- Depth
350 mm
- Height
100 mm
- Width
300 mm
- Weight
5
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3045490 MSI PRO B760M-P Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel® B760
Description
Scope of delivery
- IO shielding
- 2 x M2 screw / stand sets
- 1 x Serial ATA cable
