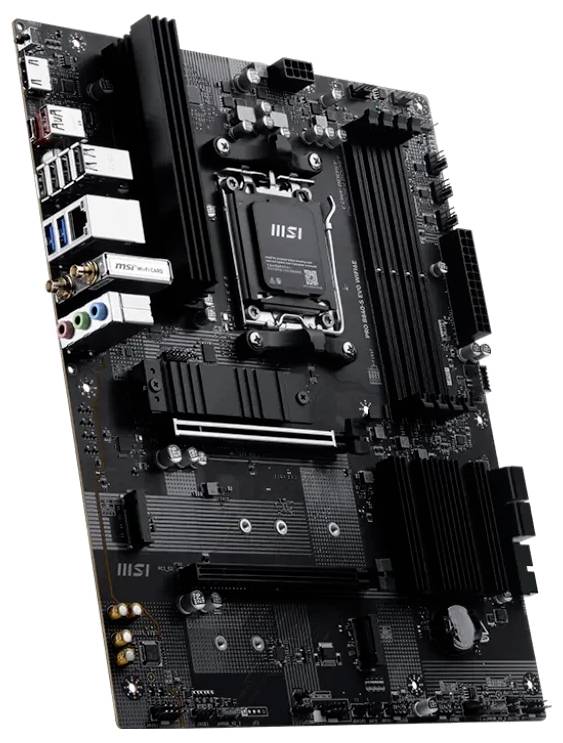

A black motherboard featuring multiple slots and ports, designed for computer assembly, showing its various components and layout.

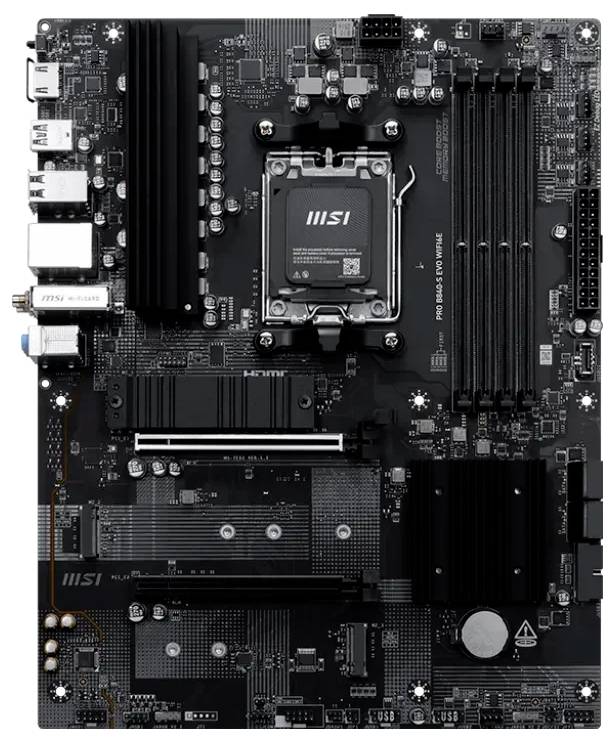

A computer motherboard with multiple ports, a CPU socket, RAM slots, and expandable PCI slots, designed for high-performance tasks.

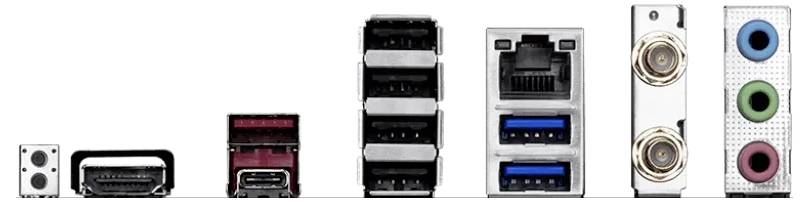

'Various computer ports: USB, HDMI, Ethernet, audio input/output. Each port supports different connectivity options.'

1/3

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

MSI PRO B840-S EVO WIFI6E Motherboard

Supports AMD Ryzen™ 9000 / 8000 / 7000 desktop processors
Supports DDR5 memory, Dual channel DDR5 8000 + MT/s (OC)
Ultra-performance: Direct 7+2+1-phase Power system with P-PAK, 8-pin CPU power connection, core boost, memory boost, 6-layer PCB made of 2oz thickened copper
Frozr Guard: MOSFET thermal pads with a rating of 7W/mK and M.2 Shield Frozr are designed for high performance systems and uninterrupted operation
EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ-antenna
Lightning fast gaming experience: PCIe 4.0 slot and Lightning Gen 4 x4 M.2
2.5G LAN with Wi-Fi 6E solution: The excellent solution for professional and multimedia applications, which delivers secure, stable and fast network and data transfer
Audio Boost: Treat your ears to studio-quality sound for an immersive gaming experience

Pre-contractual information under the EU Data Act

Technical specifications

Product type: Motherboard

Chipset: AMD® B840

: #####AMD AM5

Form factor: ATX

RAM type: DDR5 RAM

RAM / Max. upgrade: 256 GB

No. of DDR5 slots: 4 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 8 x

No. of USB 3.2 2nd Gen (USB 3.1): 3 x

No. of USB 3.2: 4 x

No. of SATA III ports: 4 x

Onboard audio: 7.1

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3556437 MSI PRO B840-S EVO WIFI6E Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B840

Description

PRO B840-S EVO WIFI6E offers a simple design with a harmonic color, which fits perfectly with black PC builds. It features many exclusive MSI features, including Wi-Fi 6E with EZ antenna, 2.5G LAN, and PCIe 4.0 M.2 with M.2 Shield Frozr - ready for the AMD Ryzen™ 9000 series processors.
