Buy MSI PRO H610M-E Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel® H610

1/5

Unavailable

Sales and shipping:

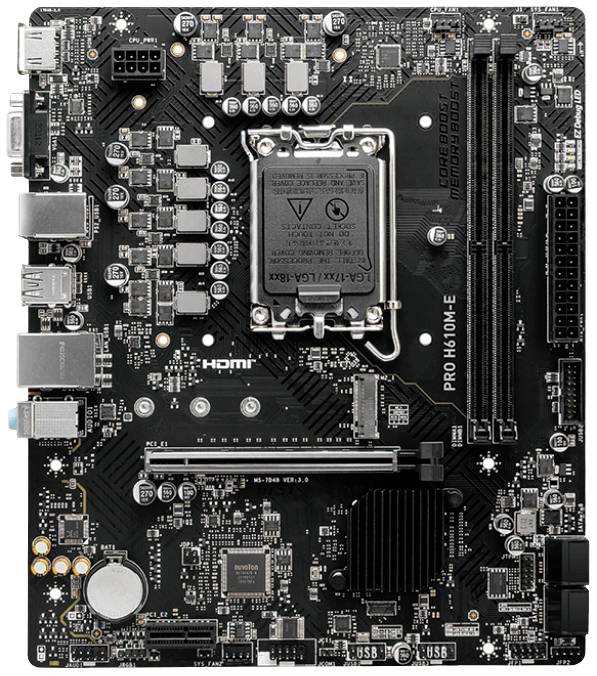

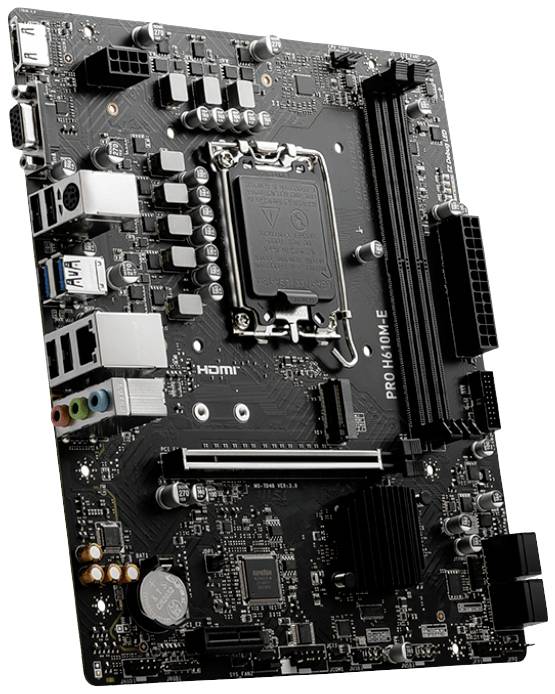

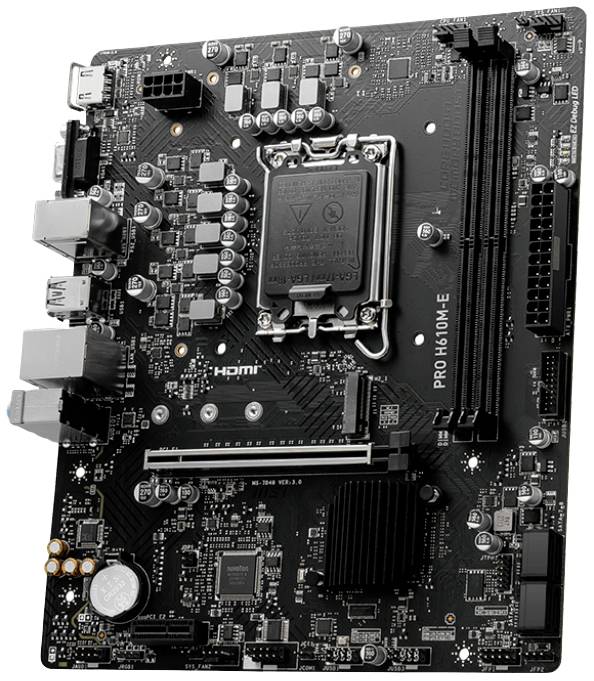

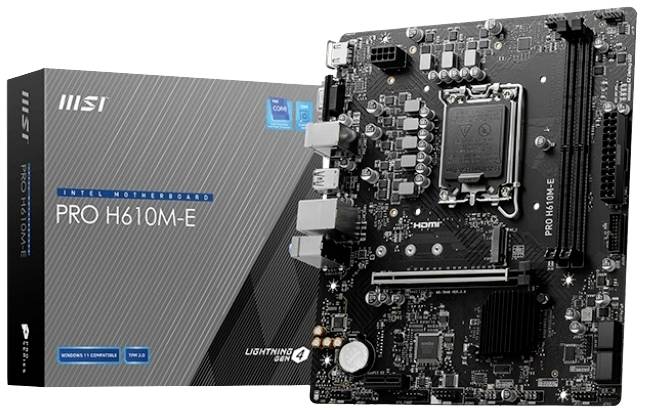

MSI PRO H610M-E Motherboard

Supported RAM Health Check: Non-ECC
RAM - Registered or buffered: Unbuffered
RAM features: Two-channel memory architecture, Intel extreme memory profiles (XMP) 3.0
Audio type: HD audio (8-channel)
Audio Codec: Realtek ALC897
Audio-compatibility: High-definition audio
Realtek RTL8111H network controller
Network interfaces: Gigabit Ethernet
Expansion slots: 1 x CPU; 2 x DIMM 288-pin; 1 x PCIe 4.0 x16; 1 x M.2 socket (2242/2260/2280 M.2 slot with Key M); 1 x PCIe 3.0 x1
Memory interfaces: SATA-600 ports: 4 x 7-pin Serial ATA; SATA-600 / PCIe 3.0 ports: 1 x M.2

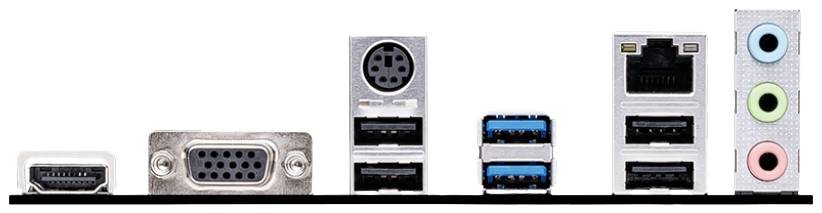

External Interfaces: 1 x HDMI; 1 x VGA; 2 x USB 3.2 Gen 1; 4 x USB 2.0; 1 x Audio Line Out – Mini Jack Plug; 1 x Microphone – Mini Jack Plug; 1 x Audio Line In – Mini Jack Plug; 1 x PS/2 Keyboard/Mouse; 1 x LAN (Gigabit Ethernet)
Internal interfaces: 1 x serial - multi-pin connector; 1 x SPI - multi-pin connector; 1 x audio - multi-pin connector; 2 x USB 3.2 Gen 1 - multi-pin connector; 4 x USB 2.0 - multi-pin connector
Power connections: Main power connection, 24-pin, ATX12V plug, 8-pin
BIOS Features: MSI ClickBIOS 5
Hardware features: ESD protection, MSI audio boost, debug LED, MSI core boost, MSI PCIe steel slot, MSI mystic light sync, MSI memory boost, Frozr AI cooling

Processor/type: unterstützt Intel Core / Pentium Gold / Celeron der 12., 13. und 14. Generation

Interfaces: HDMI™
VGA
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
Audio line in
Audio line out
Microphone (3.5 mm jack)
PS/2
Gigabit LAN (1 Gbps)

User & Safety Instructions 3045564 MSI PRO H610M-E Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel® H610
