Name: MSI PRO H610M-G Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel® H610
Brand: MSI
SKU: 3045563

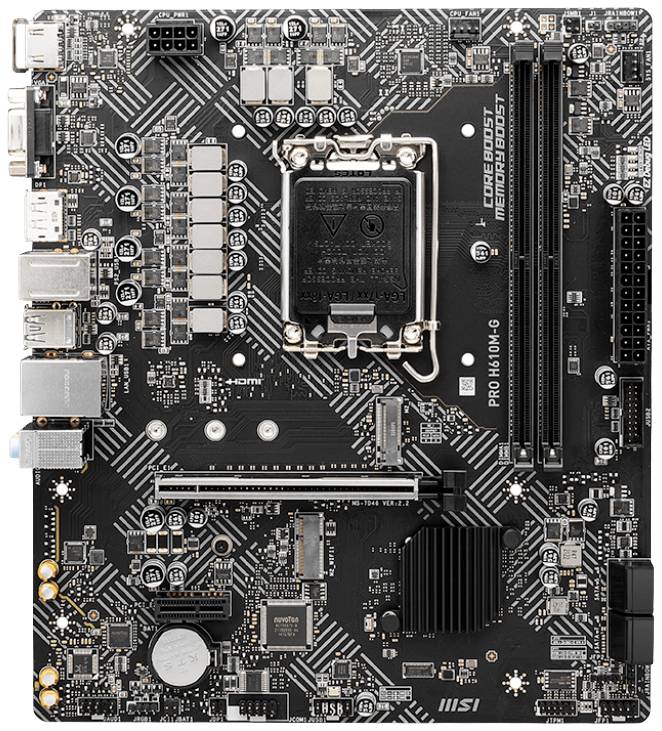

A black motherboard with multiple slots and connectors, including RAM slots, PCIe slots, and a CPU socket.

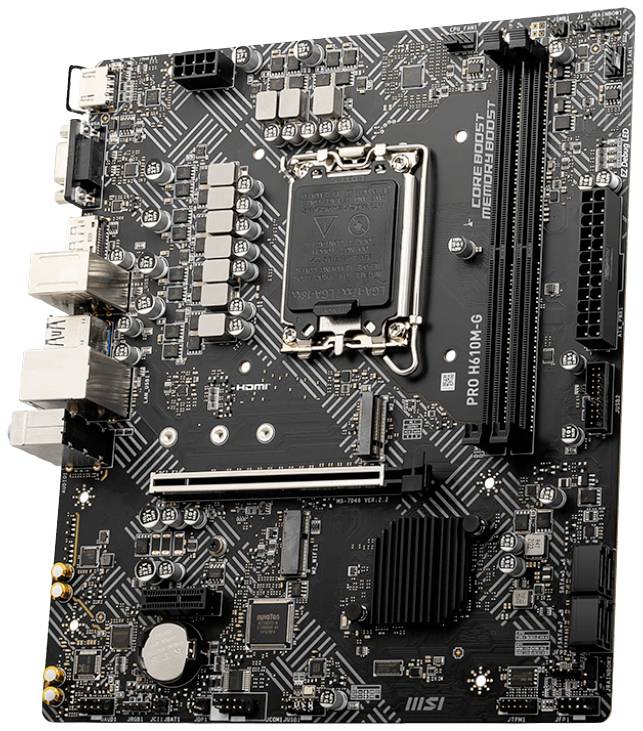

Black motherboard with multiple ports and slots, including HDMI port and RAM slots. Designed for computer assembly.

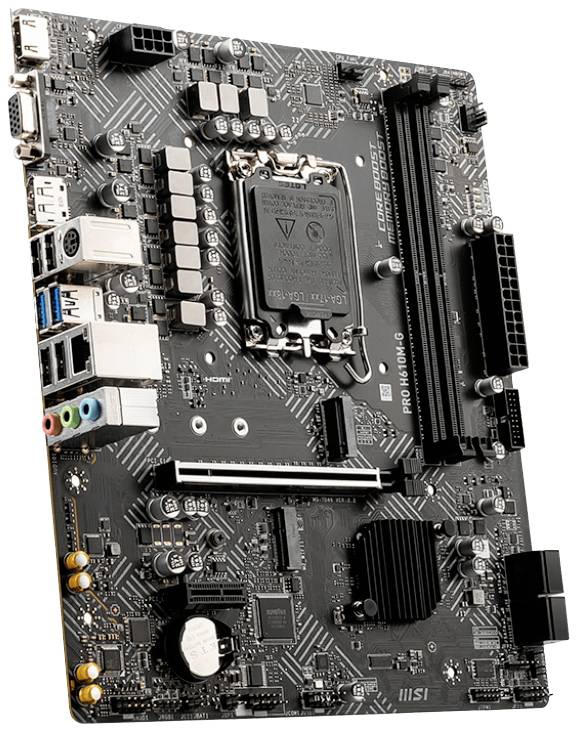

'Black computer motherboard with various ports and slots; serves as the central control hub for computer components.'

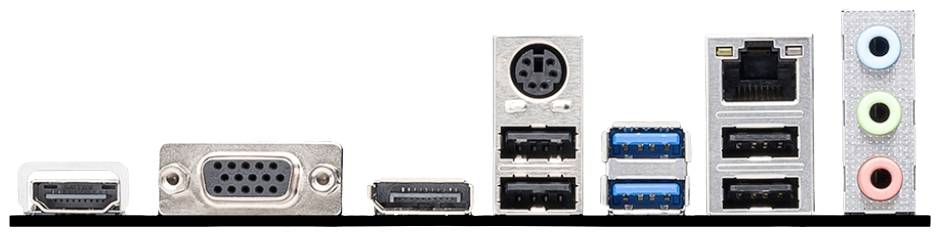

Back of a computer motherboard with various connection types: HDMI, VGA, USB ports, LAN socket, and audio jacks.

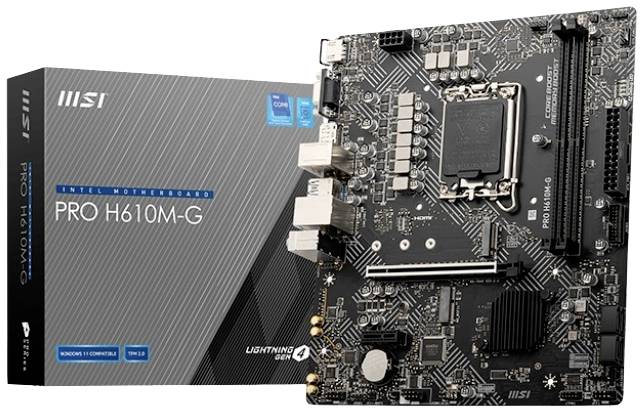

MSI PRO H610M-G motherboard beside its packaging, showing connections and expansion slots. Suitable for Intel processors, compact and functional.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Pre-contractual information under the EU Data Act

Technical specifications

Supported RAM Health Check: Non-ECC
RAM - Registered or buffered: Unbuffered
RAM features: Two-channel memory architecture, Intel extreme memory profiles (XMP) 3.0
Audio type: HD audio (8-channel)
Audio Codec: Realtek ALC897
Audio-compatibility: High-definition audio
Network controller Intel I219V
Network interfaces: Gigabit Ethernet
Expansion slots: 1 x CPU; 2 x DIMM 288-pin; 1 x PCIe 4.0 x16; 1 x PCIe 3.0 x1; 1 x M.2 socket (Key E); 1 x M.2 socket (2242/2260/2280 M.2 slot with Key M)
Memory interfaces: SATA-600 connection points: 4 x 7-pin serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5; PCIe 3.0 connection points: 1 x M.2
External Interfaces: 1 x HDMI; 1 x VGA; 1 x DisplayPort; 4 x USB 3.2 Gen 1; 2 x USB 2.0; 1 x Audio Line Out – Mini Jack Plug; 1 x Microphone – Mini Jack Plug; 1 x Audio Line In – Mini Jack Plug; 1 x PS/2 Keyboard/Mouse; 1 x LAN (Gigabit Ethernet)
Internal interfaces: 2 x USB 2.0 - multi-pin connector; 2 x USB 3.2 Gen 1 - multi-pin connector; 1 x audio multi-pin connector; 1 x serial - multi-pin connector; 1 x SPI multi-pin connector
Power connections: Main power connection, 24-pin, ATX12V plug, 8-pin
BIOS type: AMI
BIOS Features: UEFI BIOS, MSI ClickBIOS 5, ACPI 6.4 support, SMBIOS 3.5 support
Hardware features: MSI audio boost, MSI mystic light, MSI steel Armor, MSI core boost, MSI memory boost, Frozr AI Cooling, lighting solution Gen4, M.2 EZ-lock, EZ Debug LED

Product type: Motherboard

Chipset: Intel® H610

: Intel® 1700

Form factor: Micro-ATX

Processor/type: unterstützt Intel Core / Pentium Gold / Celeron der 12., 13. und 14. Generation

RAM type: DDR5 RAM

RAM / Max. upgrade: 96 GB

Interfaces: HDMI™
VGA
DisplayPort
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
Audio line in
Audio line out
Microphone (3.5 mm jack)
PS/2
Gigabit LAN (1 Gbps)
