Name: MSI X670E Gaming Plus Wifi Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® X670
Brand: MSI
SKU: 3045579

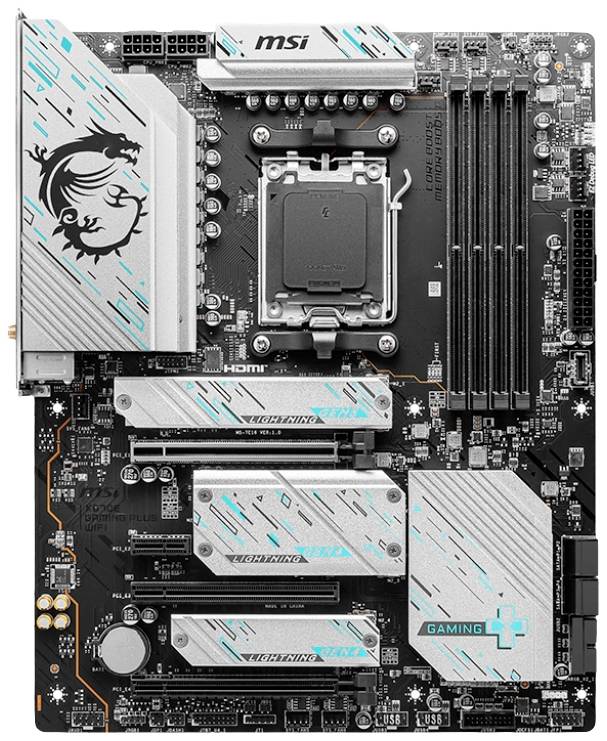

A silver motherboard with black and blue accents, multiple RAM slots, a CPU socket, and PCIe slots.

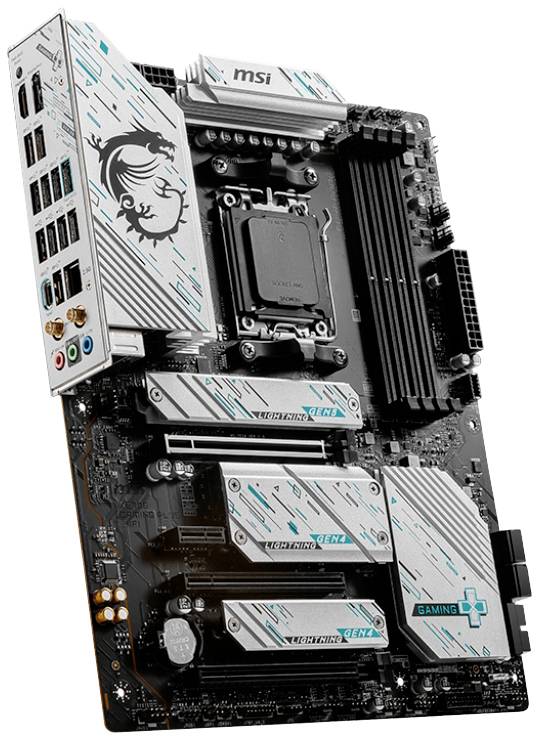

The image shows a gaming motherboard with advanced heatsinks, multiple PCIe expansion slots, and numerous ports for peripheral devices.

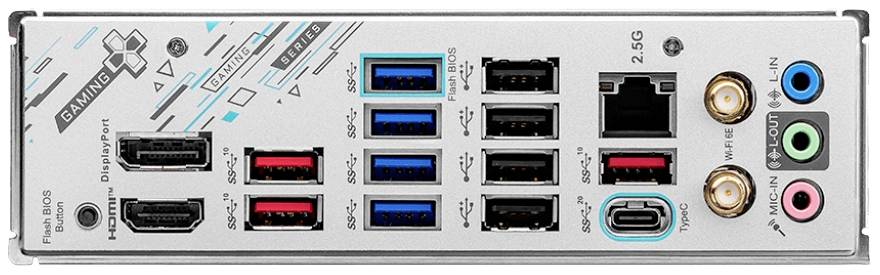

Back of a gaming motherboard with various ports: HDMI, USB, Ethernet, audio outputs, as well as dedicated gaming ports.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Supported RAM Health Check: Non-ECC
RAM - Registered or buffered: Unbuffered
RAM features: Two-channel memory architecture, AMD EXPO technology
Audio type: HD audio (8-channel)
Audio Codec: Realtek ALC897
Audio-compatibility: High-definition audio
Network controller Realtek RTL8125BG
Network interfaces: 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Expansion slots: 1 x CPU; 4 x DIMM 288-pin; 2260/2280 x PCIe 5.0 x16; 1 x PCIe 4.0 x16; 1 x PCIe 3.0 x16; 1 x PCIe 3.0 x1; 3 x M.2 socket (1 M.2 Key M slot); 1 x M.2 socket (2280/22,110 M.2 Key M slot); 1 x M.2 socket (Key E)
Memory interfaces: SATA-600 ports: 4 x 7-pin serial ATA- RAID 0 / RAID 1 / RAID 10; PCIe 4.0 ports 3 x M.2; PCIe 5.0 ports 1 x M.2
External interfaces: 1 x HDMI; 1 x DisplayPort; 4 x USB 2.0; 4 x USB 3.2 Gen 1; 3 x USB 3.2 Gen 2; 1 x USB-C 3.2 Gen2; 1 x LAN (2.5Gigabit Ethernet); 1 x audio line in – mini jack plug; 1 x audio line out – mini jack plug; 1 x microphone – mini jack plug; 2 x antenna
Internal interfaces: 4 x USB 2.0 - multi-pin connector; 4 x USB 3.2 Gen 1 - multi-pin connector; 1 x USB-C 3.2 Gen 2 - multi-pin connector; 1 x audio - multi-pin connector; 1 x SPI multi-pin connector
Power connections: Main power connector, 24-pin, 2 8-pin ATX12V connections
BIOS Features: M-FLASH, MSI ClickBIOS 5
Hardware features: MSI audio boost, over current protection, debug LED, 6 layer PCB, MSI mystic light, MSI steel armor, 2oz copper PCB, M.2 shield FROZR, water pump header, MSI core boost, Extended heat sink design, DIY friendly design, EZ LED control, Nvidia durable BAR support, 14+2+1 phase Power design, 80A Smart Power stage, Flash BIOS-key, AMD precision boost overdrive (PBO), Frozr AI cooling, surge protection devices

Product type: Motherboard

Chipset: AMD® X670

: #####AMD AM5

Form factor: ATX

Processor/type: Ryzen (unterstützt Ryzen 7000/8000 Series)

RAM type: DDR5 RAM

Clock speed: 5000 MHz
5200 MHz
5400 MHz
5600 MHz
5800 MHz
6000 MHz
4800 MHz
6200 MHz
6400 MHz
6600 MHz
7000 MHz
6800 MHz
7200 MHz
7400 MHz
7600 MHz
7800 MHz
Show more

RAM / Max. upgrade: 256 GB

Interfaces: HDMI™
DisplayPort
USB A (USB 2.0)
USB A (USB 3.2 1st gen)
USB A (USB 3.2 2nd gen)
USB C® (USB 3.2 2x 2nd gen)
Gigabit LAN (1/2.5 Gbps)
Audio line in
Audio line out
Microphone (3.5 mm jack)
USB A (USB 3.2 2nd gen)
Bluetooth
Wi-Fi 6E (IEEE 802.11ax)
Show more

No. of DDR5 slots: 4 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe x1: 1 x

No. of USB 2.0 ports: 8 x

No. of USB 3.2 2nd Gen (USB 3.1): 3 x

No. of USB 3.2: 8 x

No. of USB 3.0 ports: 2 x

Factory colour: Multicolour

UKCA: yes
