MSI Z790 Gaming Plus Wifi Motherboard PC base Intel® 1700 Form factor (details) ATX Motherboard chipset Intel® Z790
EAN:
Part number:
Item no:

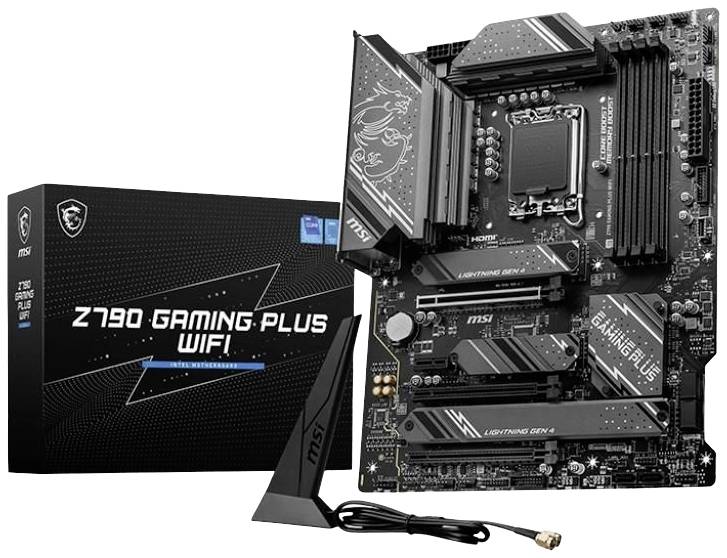

MSI Z790 Gaming Plus Wifi Motherboard
Technical specifications
- Supported RAM Health Check: Non-ECC
- RAM - Registered or buffered: Unbuffered
- RAM features: Two-channel memory architecture, Intel extreme memory profiles (XMP) 3.0
- Audio type: HD audio (8-channel)
- Audio Codec: Realtek ALC897
- Audio-compatibility: High-definition audio
- Network interfaces: 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
- Expansion slots: 1 x CPU; 4 x DIMM 288-pin; 1 x PCIe 5.0 x16; 1 x PCIe 4.0 x16 (x4 mode); 2 x PCIe 3.0 x1; 3 x M.2 socket (2242/2260/2280 M.2 slot with key M); 1 x M.2 socket (2242/2260/2280/22110 M.2 slot with key M); 1 x M.2 socket (Key E)
- Memory interfaces: SATA-600 ports: 6 x 7-pin serial ATA- RAID 0 / RAID 1 / RAID 10 / RAID 5; PCIe 4.0 ports: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5; SATA-600 / PCIe 4.0 ports: 2 X M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
- External interfaces: 1 x HDMI; 1 x DisplayPort; 4 x USB 2.0; 2 x USB 3.2 Gen 1; 1 x USB 3.2 Gen 2; 1 x USB-C 3.2 Gen2; 1 x audio line out – mini jack plug; 1 x microphone – mini jack plug; 1 x audio line out (middle/subwoofer) – mini jack plug; 1 x Audio Line-Out (rear) - Mini jack connector; 1 x Audio Line-In - Mini jack connector; 1 x Audio Line-Out (Side Surround) - Mini jack connector; 2 x antenna; 1 x LAN (2.5Gigabit Ethernet); 1 x PS/2 keyboard/mouse
- Internal interfaces: 4 x USB 2.0 - multi-pin connector; 4 x USB 3.2 Gen 1 - multi-pin connector; 1 x USB-C 3.2 Gen 2 - multi-pin connector; 1 x Thunderbolt 4 - multi-pin connector; 1 x audio - multi-pin connector
- Power connections: Main power connection, 24-pin, 2 8-pin ATX12V connections
- BIOS type: AMI
- BIOS Features: UEFI BIOS, MSI ClickBIOS 5, ACPI 6.4 support, SMBIOS 3.5 support
- Hardware features: MSI audio boost, debug LED, 6 layer PCB, MSI mystic light, MSI steel armor, M.2 Shield FROZR, water pump header, pre-assembled I/O shield, MSI core boost, MSI PCIe steel slot, extended heat sink design, 14+1+1 phase Power design, surface mount technology (SMT), MSI memory boost
- Product type
Motherboard
- Chipset
Intel® Z790
Intel® 1700
- Form factor
ATX
- Processor/type
unterstützt Intel Core / Pentium Gold / Celeron der 12., 13. und 14. Generation
- RAM type
DDR5 RAM
- Clock speed
5800 MHz
6000 MHz
4800 MHz
6200 MHz
6400 MHz
6600 MHz
7000 MHz
6800 MHz
7200 MHz
5200 MHz
Show more
- RAM / Max. upgrade
192 GB
- Interfaces
HDMI™
DisplayPort
USB A (USB 2.0)
USB A (USB 3.2 1st gen)
USB A (USB 3.2 2nd gen)
USB C® (USB 3.2 2x 2nd gen)
Audio line in
Audio line out
Microphone (3.5 mm jack)
Gigabit LAN (1/2.5 Gbps)
Show more
- No. of DDR5 slots
4 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x1
2 x
- No. of USB 2.0 ports
8 x
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- No. of USB 3.2
6 x
- No. of USB 3.0 ports
2 x
- No. of PS/2 ports
1 x
- Depth
350 mm
- Height
100 mm
- Width
300 mm
- Weight
5
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3045525 MSI Z790 Gaming Plus Wifi Motherboard PC base Intel® 1700 Form factor (details) ATX Motherboard chipset Intel® Z790
Description
Scope of delivery
- WLAN-antenna
- M.2 screws/spacer sets
- 3 x M.2 clips
- Cable sticker
- 2 x Serial ATA cable
